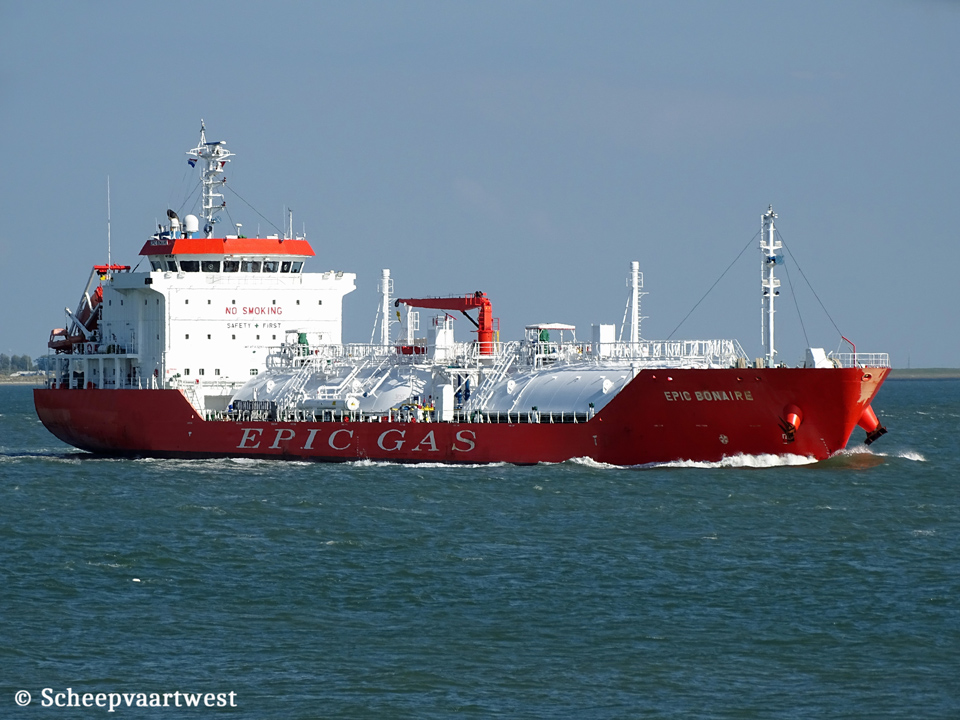

Epic Bonaire IMO 9743253 01

Westerschelde 29 August 2019



Name

EPIC BONAIRE

Type

Liquefied gas tanker - LPG

IMO-number

9743253

Call sign

9V2945

Flag

Republic of Singapore

Port of registry

Singapore City

GT

6.220 t

Suez: 7.370,89 t

DWT

7.198,46 t

NT

2.068 t

Suez: 6.033,15 t

Panama: 5.308 t

Displacement

10.847,98 t

Length

113,08 m overall

106,80 m between perpendiculars

Breadth

19,00 m moulded

Draught

Summer: 6,81 m

Freeboard

2.317 mm

Depth

9,10 m moulded

Speed

Service: 14,5 knots

Built

2016

Keel laid

25/12/2015

Launch date

26/04/2016

Delivery date

22/08/2016

Builder

Sasaki Shipbuilding Co., Ltd.

65-1, Kinoe, Osakikamijima-Cho

Toyota-Gun, 725-0401

Japan

Yard number

693

Hull material

Steel

Hull type

Double sides

Continuous decks

1

Main engine

1x Hitachi/MAN-B&W 5L35MC-6.1 - 2 stroke single acting 5 cylinder 350 x 1.050 mm combustion engine 2.750 kW / 3.739 hp at 178,0 rpm

Manufacturer: Hitachi Zosen Corp - Japan

Propellers

1x Fixed pitch propeller - aft at 178,0 rpm

Boilers

1x Fired boiler - 9,8 MPa

1x Unfired exhaust gas boiler - 14,0 MPa

Generators

2x Main diesel generatorset each 400 kW

Bow thruster

1x Tunnel thruster, forward

Number of tanks

2

Cargo tank capacity

Liquid gas: 7.521,92 m³

Max cargo Pressure

17,65 bar

Min cargo Temperature

-10°C

Number of pumps

2x Cargo pumps

Tank capacities

Fuel oil: 564,54 m³

Diesel oil: 140,76 m³

Fresh water: 194,46 m³

Lube oil: 40,40 m

Ballast: 2.324,67 m³

Lifting equipment

1x Hose handling crane - SWL 5,0 t

Crew size

15

Manager

Epic Ship Management Private Ltd.

6 Eu Tong Sen St.

Singapore 059818

Republic of Singapore

Registered owner

Epic Bonaire Pte Ltd.

Latest data adjustment

02 April 2021
