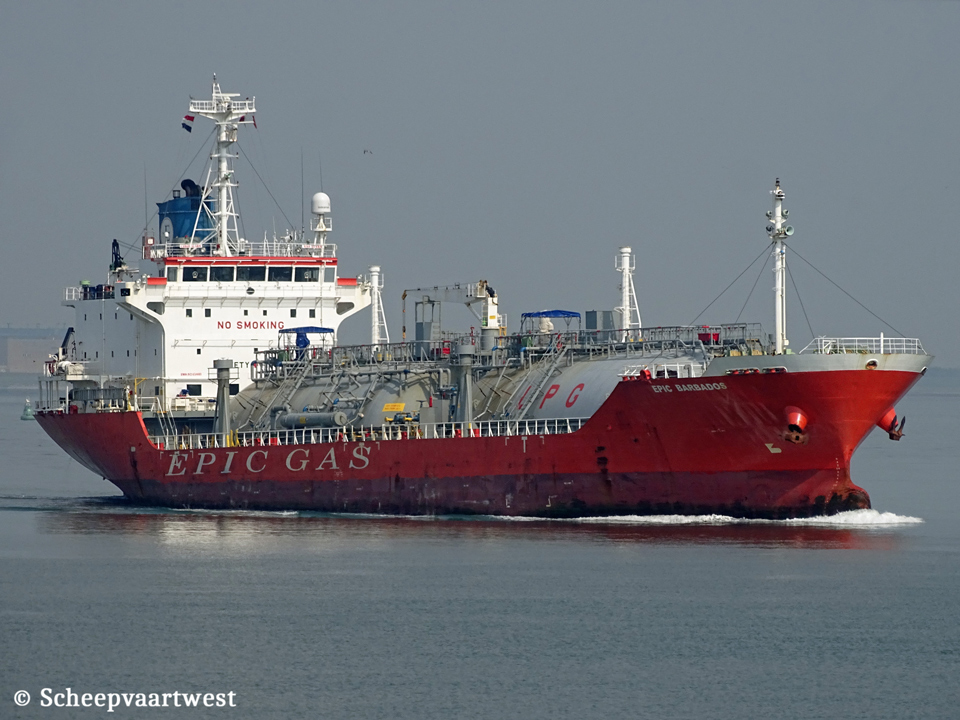

Epic Barbados IMO 9245081 04

Westerschelde 04 March 2018


Epic Barbados 02   Epic Barbados 03   Epic Barbados 01   Epic Barbados IMO 9245081 05   Epic Barbados IMO 9245081 06   Epic Barbados IMO 9245081 07
Westerschelde 04/03/18 Westerschelde 04/03/18 Westerschelde 02/11/16 Westerschelde 17/05/19   Vlissingen 05/05/19 Vlissingen 05/05/19

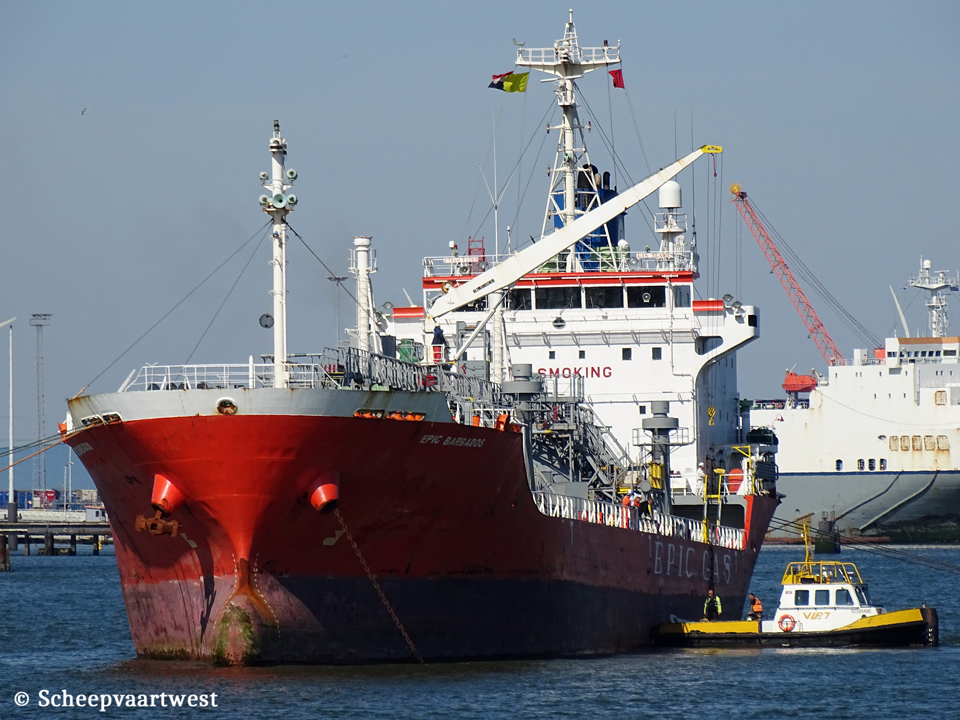

Epic Barbados IMO 9245081 08
Vlissingen 05/05/19


Name

EPIC BARBADOS

Previous names

2001 - 02/2014 Championship

Type

Liquefied gas tanker - LPG

IMO-number

9245081

Call sign

9HA4918

Flag

Malta

Port of registry

Valletta

Previous flags

2001 - 02/2014 Republic of Panama, Panama City - Call sign: H9LQ

02/2014 - 09/2018 Republic of Singapore, Singapore City - Call sign: 9V2561

GT

5.764 t

DWT

Summer: 6.618,54 t

NT

1.999 t

Length

119,29 m overall

Breadth

18,20 m moulded

Draught

Summer: 6,46 m

Moulded L x B x D

112,50 x 18,20 x 8,40 m

Registered L x B x D

112,66 x 18,20 x 8,40 m

Keel to mast end

34,20 m

Freeboard

Summer: 1.971 mm

Depth

8,40 m moulded

Speed

Max.: 16,0 knots

Service: 12,5 knots

Built

2001

Keel laid

18/01/2001

Launch date

25/04/2001

Date of completion

17/09/2001

Builder

Murakami Hide Shipbuilding Co., Ltd.

Imabari

Japan

Yard number

520

Hull material

Steel

Hull type

Double side

Main engine

1x MAN-B&W 7L35MC - 2 stroke single acting 7 cylinder 350 x 1.050 mm combustion engine 4.530 kW / 6.160 hp at 210 rpm

Manufacturer: Hitachi Zosen Corporation Innoshima Works - Japan

Propeller shaft

1x Sea water lubrication shaft

Diameter: 360 mm

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary vertical boiler - 7,0 bar

Evaporation: 1,37 t/h

Manufacturer: Miura Co., Ltd.

Generators

3x Generators - 1.080 kW

Cargo tank capacity

Liquid: 7.221 m³

Number of pumps

2x Cargo pumps each 450 m³/h

Tank capacities

Fuel oil: 560 m³

Fresh water: 250 m³

Commercial manager

Epic Shipping Chartering Pte

22-89, The Central, 8, Eu Tong Sen Street

Singapore 059818

Republic of Singapore

ISM manager

BW Epic Kosan Maritime Pte. Ltd.

22-89, The Central, 8, Eu Tong Sen Street

Singapore 059818

Republic of Singapore

Registered owner

Epic Barbados Pte Ltd. - Republic of Singapore

Care of Epic Shipping (Chartering) Pte. Ltd.

8 Eu Tong Sen Street

#22-89 The Central

Singapore City

Republic of Singapore

Latest data adjustment

20 July 2022
