| Zeebrugge02 March 2026 |
 |
 |
|
| Zeebrugge 02/03/26 | Zeebrugge 04/07/13 | |
|
Name |

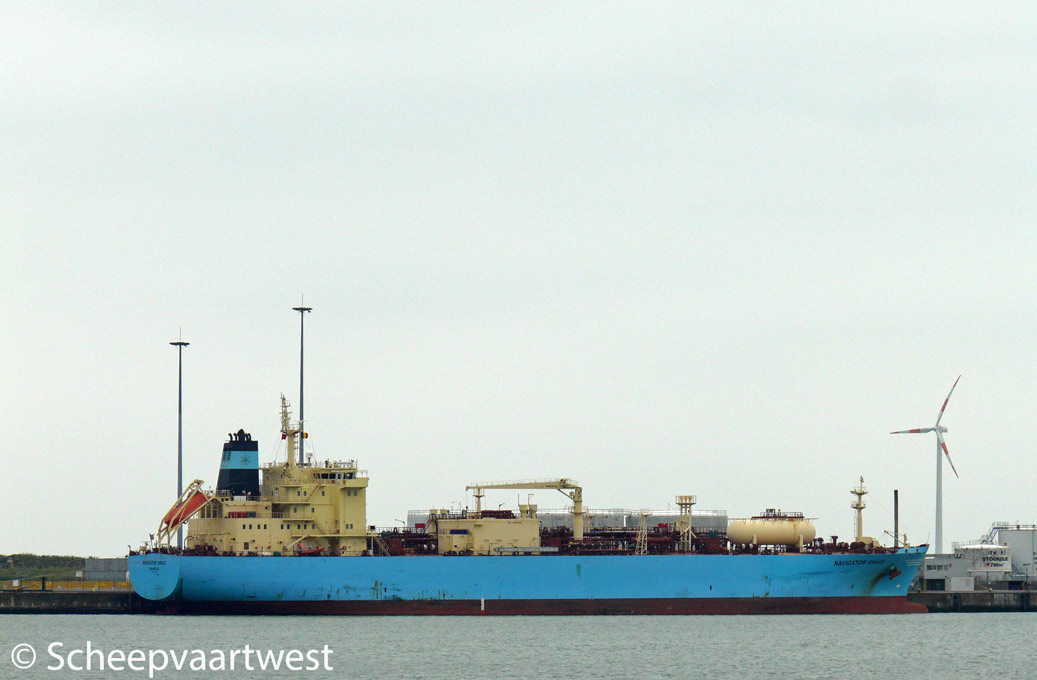

NAVIGATOR GRACE |
|
Previous names |
08/2010 - 04/2013 Maersk Grace |
|
Type |
LPG tanker - Liquefied gas carrier |
|
IMO-number |
9531478 |
|
Call sign |
D5DP9 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flags |
2010 - 2013 Republic of Singapore, Singapore City |
|
GT |
16.823 |
|
DWT |
17.294 t |
|
NT |
5.046 |
|
Length |
154,17 m overall 147,00 m between perpendiculars |
|
Breadth |
25,52 m extreme |
|
Draught |
Summer: 8,82 m |
|
Depth |
16,00 m |
|
Speed |
Service: 16,0 knots |
|
Built |
2010 |
|
Keel laid |
23/02/2010 |
|
Date of completion |
12/08/2010 |
|
Builder |
Hyundai Heavy Industries Co., Ltd. #1, Jeonha-Dong, Dong-Gu 682-792 Ulsan Republic of Korea |
|
Yard number |
2352 |
|
Hull material |
Steel |
|
Hull type |
Double bottom |
|
Main engine |
1x HHM/MAN-B&W 5S50MC-C8 - 2 stroke 5 cylinder combustion engine nom rating 7.000 kW at 118 rpm |
|
Propellers |
1 |
|
Boilers |
Auxiliary boiler, composite - Mission OC Builder: Alfa Laval Aalborg A/S |
|
Generators |
3x Hyundai Himsen 6H21/32 main diesel generatorsets each 902 kW |
|
Emergency generator |
1x Cummins 6CTA-8.3-D(M) diesel generatorset |
|
Number cargo tanks |
3x Independent tanks |
|
Cargo tank capacity |
Liquid: 22.600 m³ |
|
Deck tank |
240 m³ |
|
Minimum temp |
-48°C |
|
Number of pumps |
6x Electric motor driven Svanehoy deepwell type 2x Ballast pumps each 400 m³/h |
|
Tank capacities |
Ballast: 8.780,4 m³ Fresh water: 250 m³ HFO: 678 m³ MGO: 305 m³ |
|
Crew |
19 |
|
Commercial manager |
Navigator Gas LLC The Verde, 10, Bressenden Place London, SW1E 5DH United Kingdom |
|
ISM manager |
Navigator Gas Ship Management Smakkedalen 4 2820, Gentofte Denmark |
|
Previous managers |
|
|
Operator |
Northern Marine Management Ltd. |
|
Registered owner |
Navigator Grace LLC c/o Navigator Gas LLC The Verde, 10, Bressenden Place London, SW1E 5DH United Kingdom |
|
Previous owners |
|
|
Latest data adjustment |
06 March 2026 |
