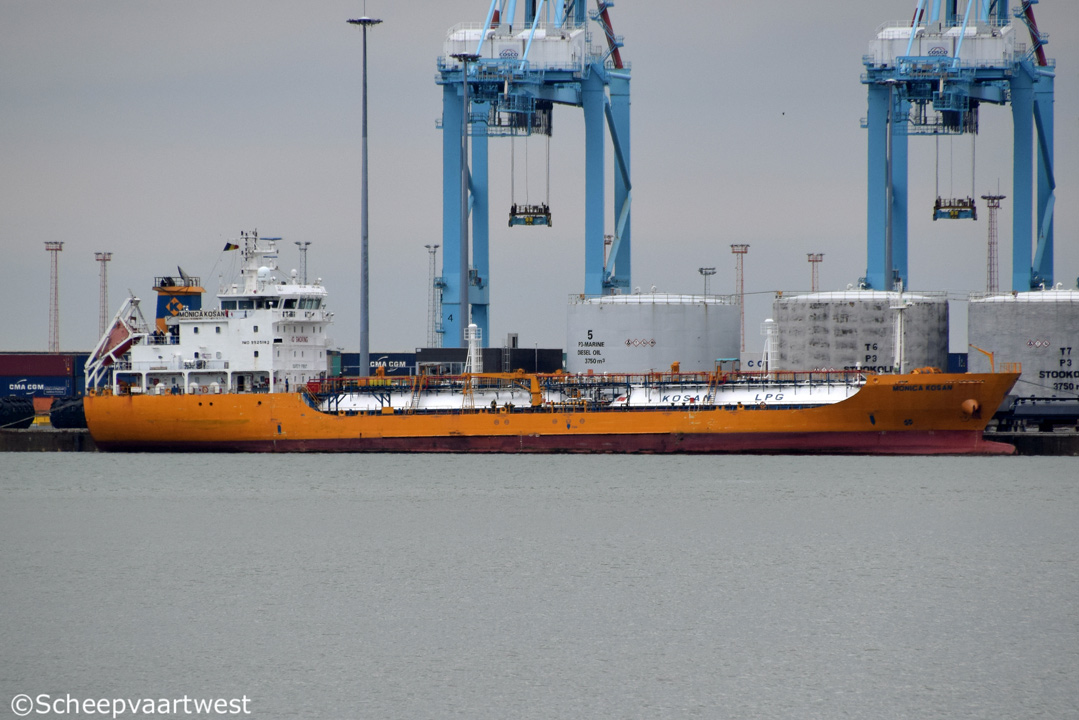

| Antwerpen 12 March 2015 |
 |
 |
 |
 |
 |
 |
|||||

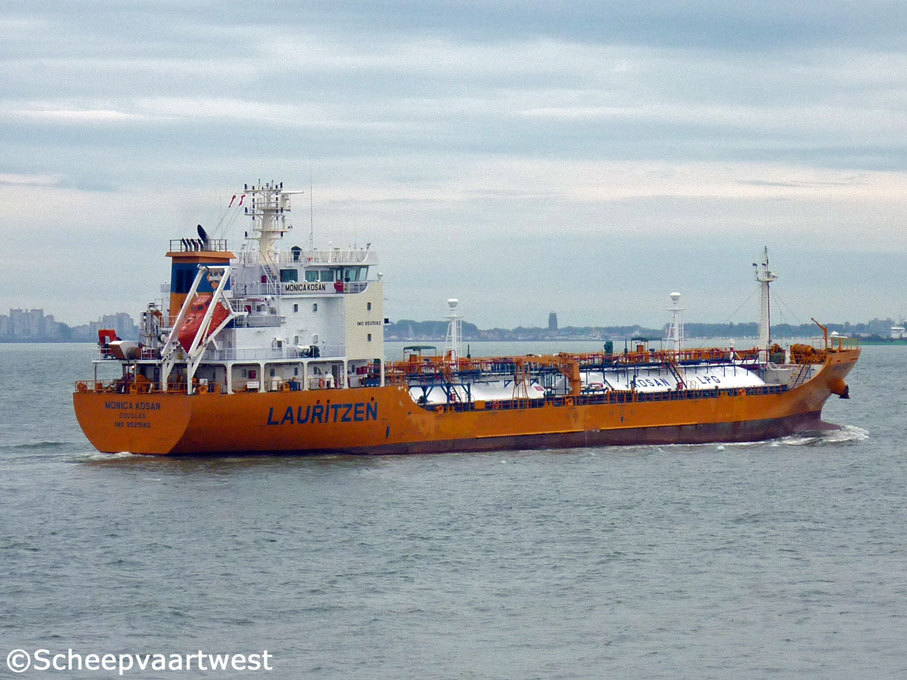

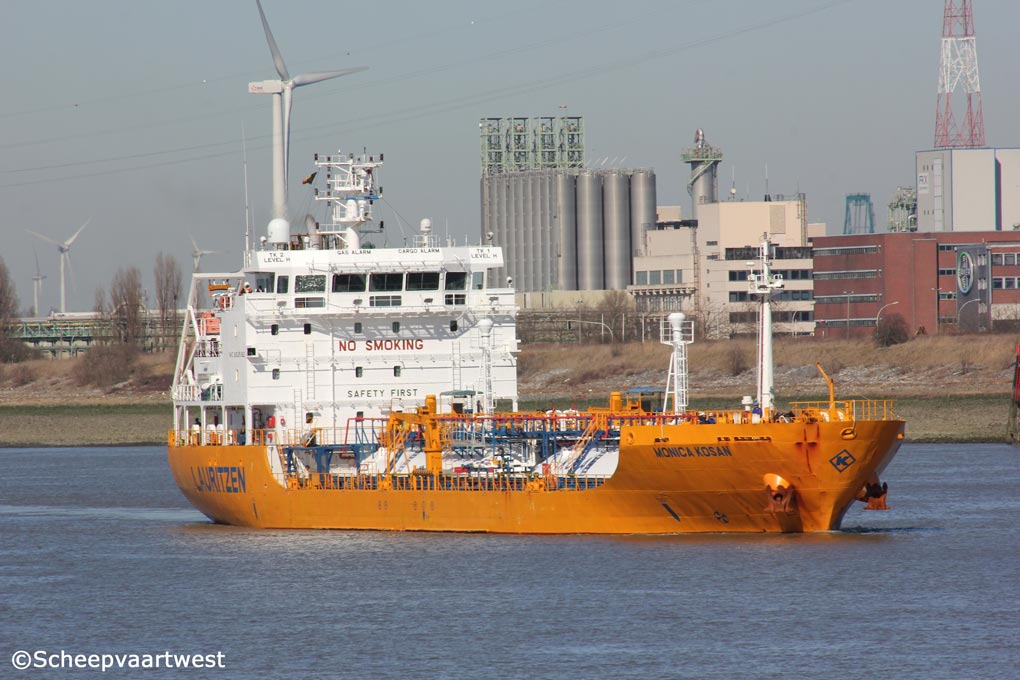

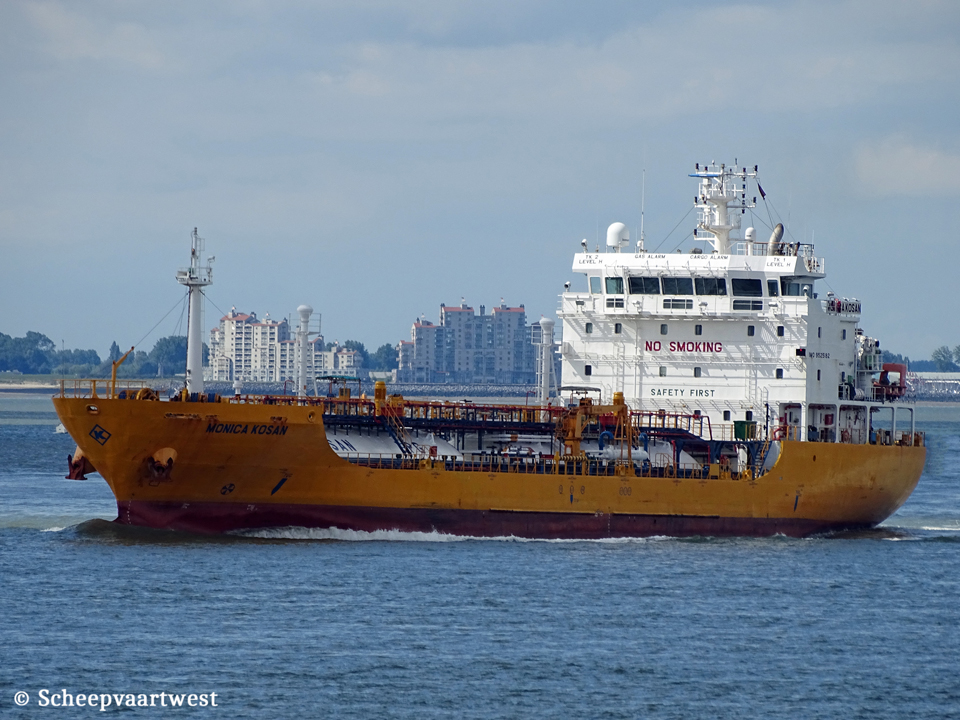

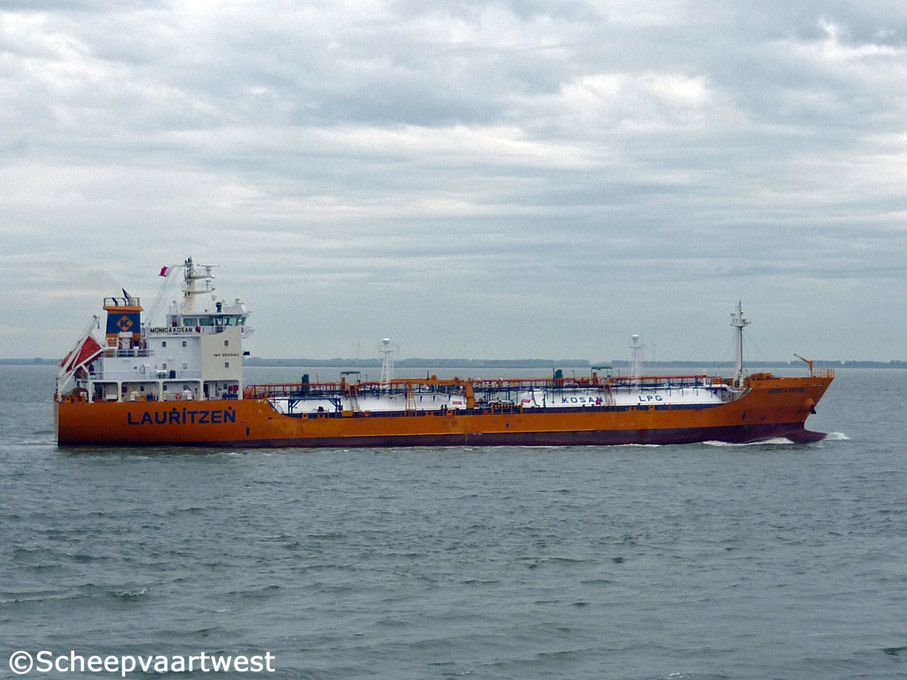

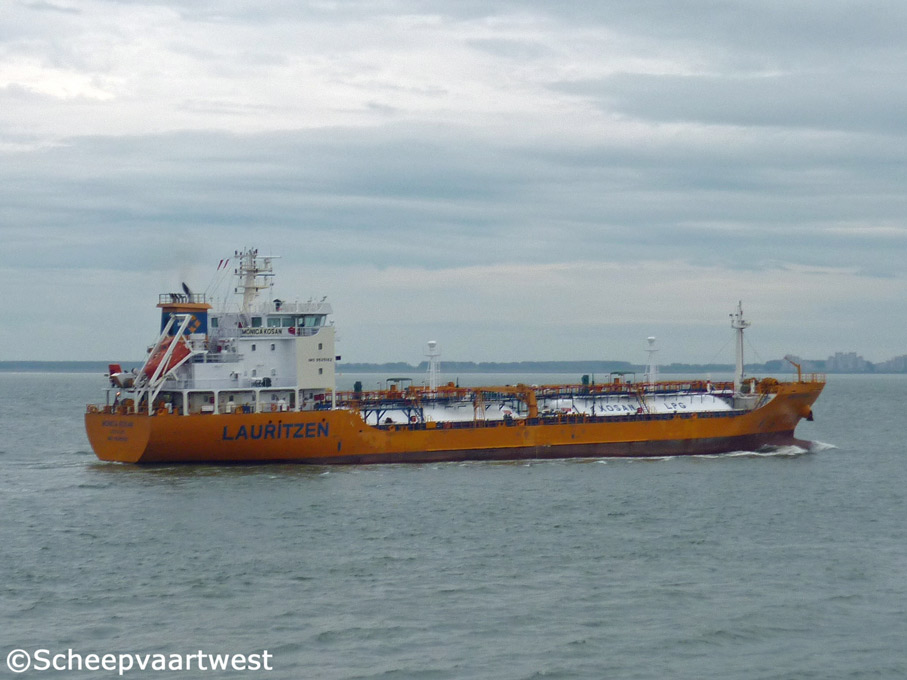

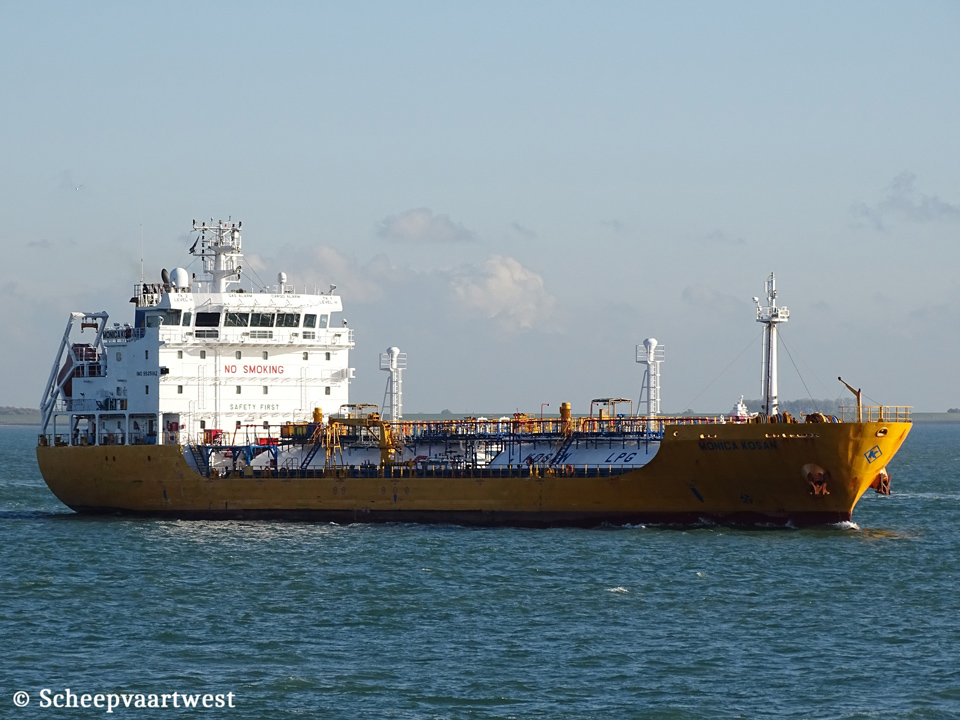

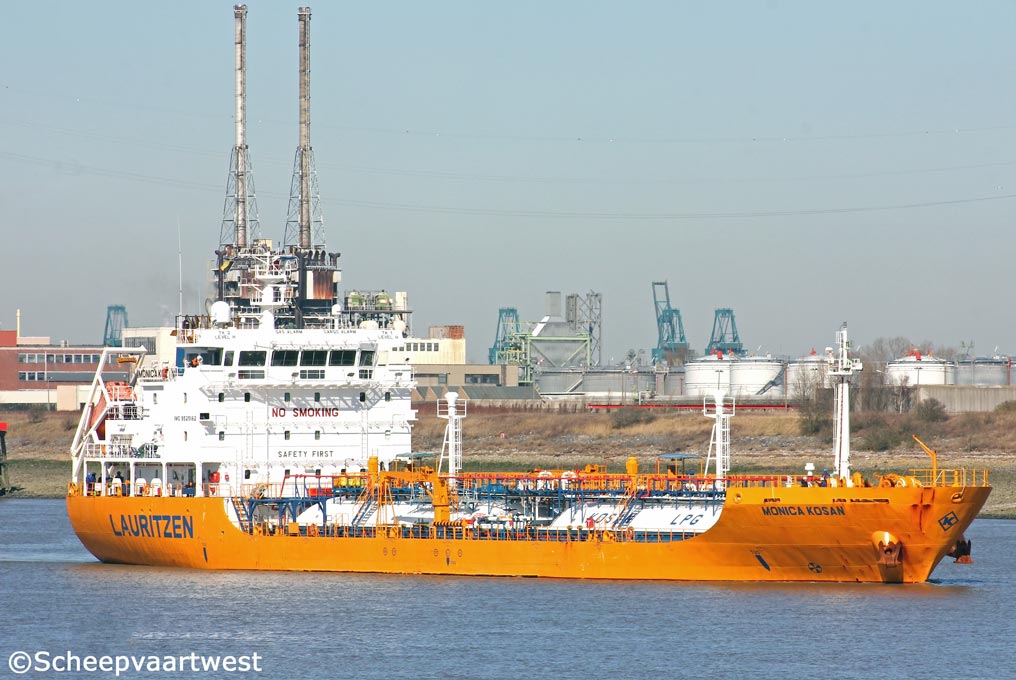

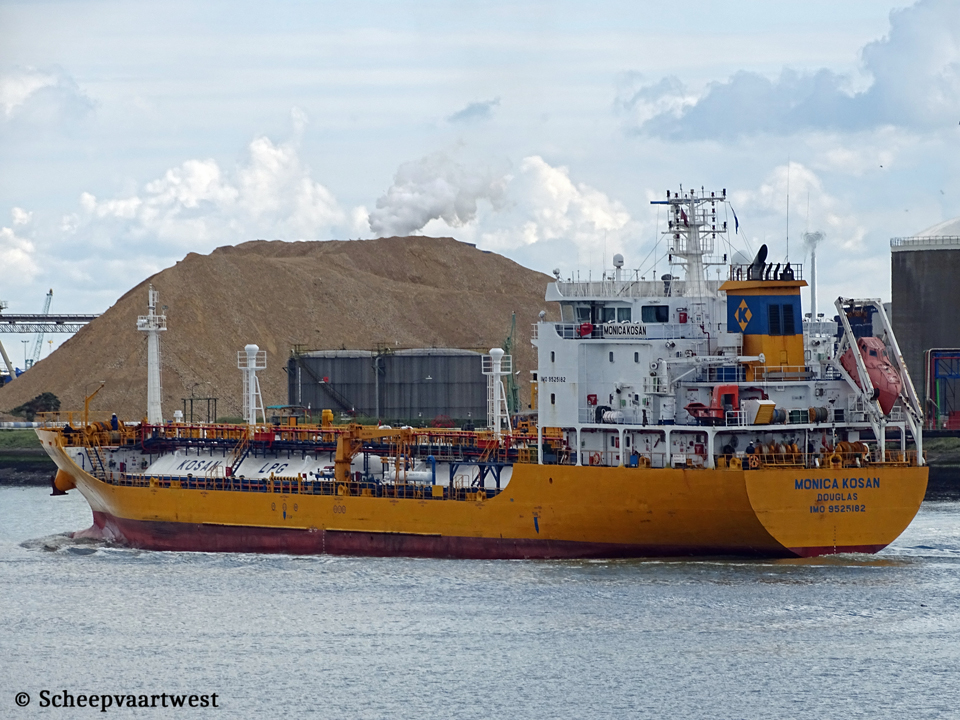

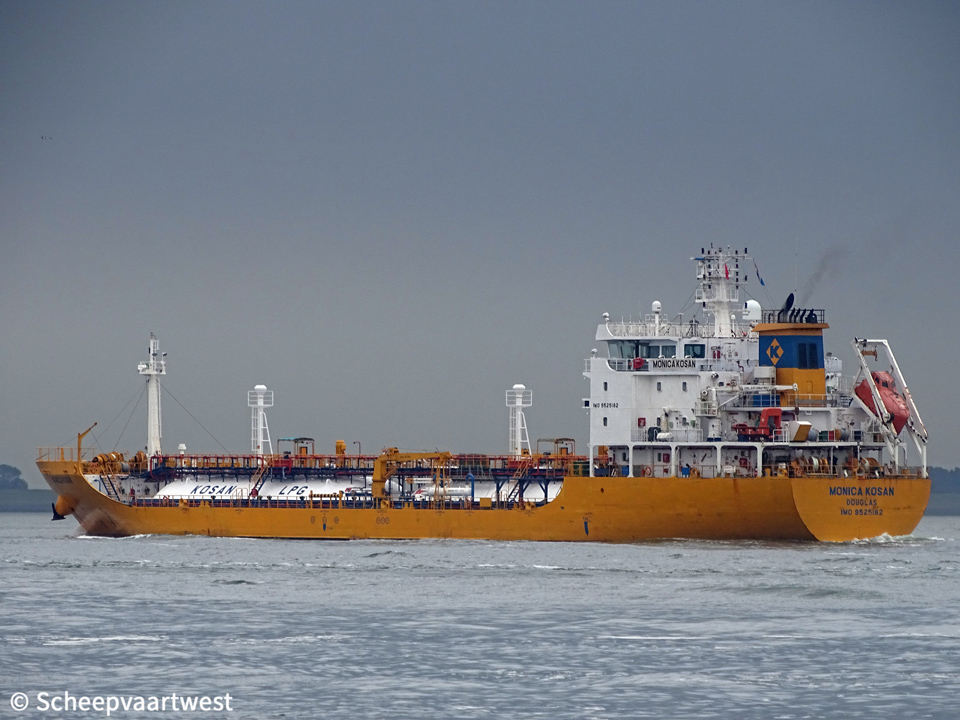

| Antwerpen 12/03/15 | Westerschelde 08/07/12 | Westerschelde 08/07/12 | Westerschelde 08/07/12 | Zeebrugge 31/03/18 | Westerschelde 19/06/18 |
 |
| Westerschelde 058/11/19 |
|
Name |
MONICA KOSAN |
|
Type |
Liquefied gas tanker - Pressurized |
|
Main products |
Liquefied petroleum gases Propane, Propylene, Butadiene, Butanes, Butylenes, Pentanes, Butane / Propane mixtures, Dimethyl ether, Isoprene Monomer, Vinyl Cloride (VCM) |
|
IMO-number |
9525182 |
|
Call sign |
2DGJ6 |
|
Flag |
Isle of Man - United Kingdom |
|
Port of registry |
Douglas |
|
GT |
3.728 t |
|
DWT |
Summer: 3.808 t |
|
NT |
1.119 t |
|
Displacement |
Lightship: 2.766 t Summer: 6.574 t |
|
Length |
99,96 m overall 93,73 m between perpendiculars |
|
Breadth |
16,60 m |
|
Draught |
5,71 m |
|
Freeboard |
2.118 mm |
|
Depth |
7,80 m |
|
Speed |
13,0 knots |
|
Built |
2011 |
|
Date of completion |
18/03/2011 |
|
Builder |
Yangzhou Kejin Shipyard Co., Ltd. Jiangdu China |
|
Yard number |
KJ-07071 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight compartments |
21 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W - 4 stroke 8 cylinder 270 x 380 mm combustion engine 2.720 kW / 3.696 hp at 800 rpm Builder: Zhenjiang CME Co., Ltd., Zhenjiang - China |
|
Propellers |
1x Screw propeller solid |
|
Generators |
3x Main diesel generatorsets each 513 kVA - 410 kW - 629 hp |
|
Emergency generator |
1x Diesel generatorset 188 kVA - 150 kW - 246 hp |
|
Number of tanks |
2 |
|
Total capacity of tanks 98% |
Tank 1: 1.798,426 m³ Tank 2: 1.799,965 m³ Total: 3.598,391 m³ |
|
Cargo pumps |
2x Deepwell each 300 m³/h |
|
Minimum temperature |
-10°C |
|
Pressure |
Max.:16,6 Bar |
|
Tank capacities |
Fuel oil: 611,7 m³ |
|
Manager |
Lauritzen Kosan A/S Copenhagen Denmark |
|
ISM manager |
Lauritzen Kosan A/S 28, Sankt Annae Plads Copenhagen K Denmark |
|
Operator |
Lauritzen Kosan |
|
Registered owner |
Lauritzen Kosan A/S |
|
Latest data adjustment |
27 October 2020 |
