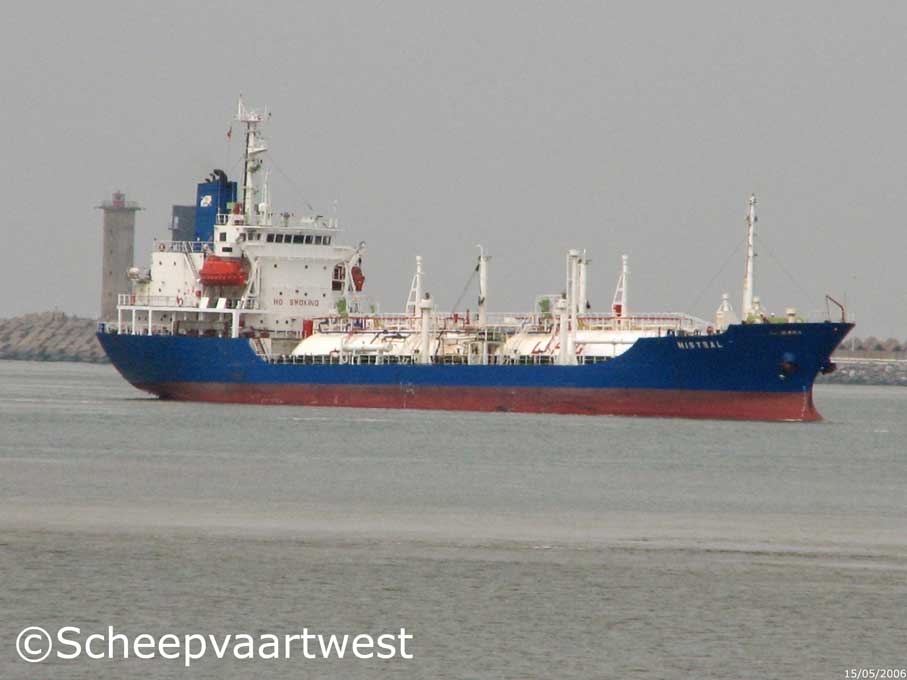

| Zeebrugge 15 May 2006 |
 |
 |
 |
 |
 |
 |
|||||

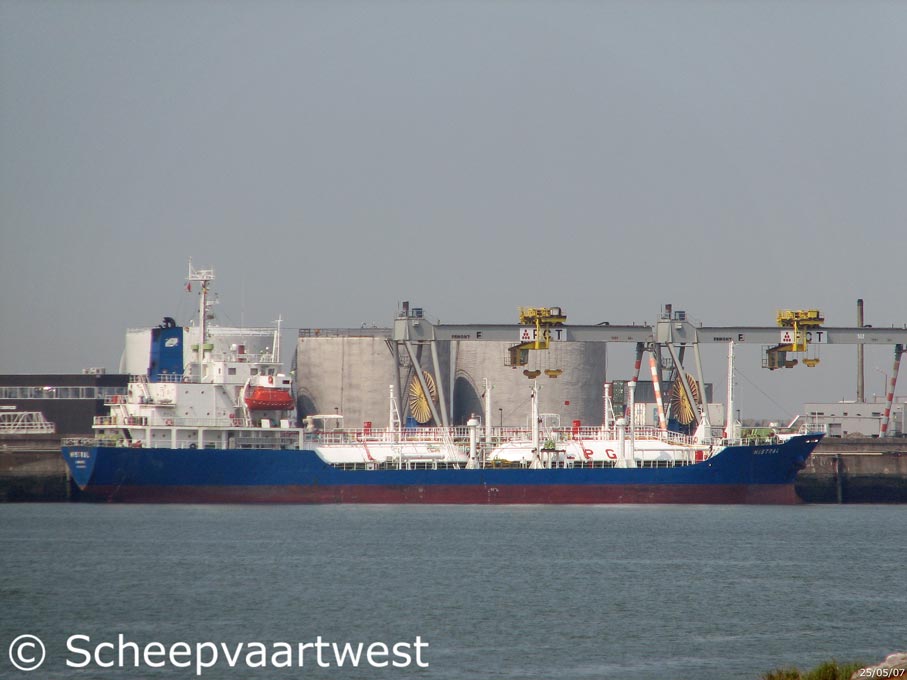

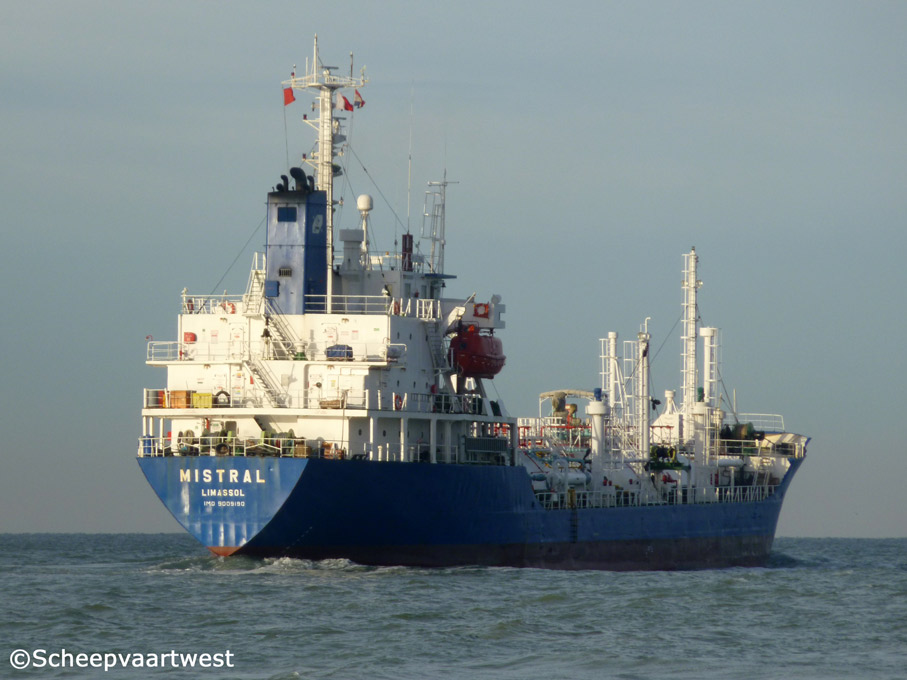

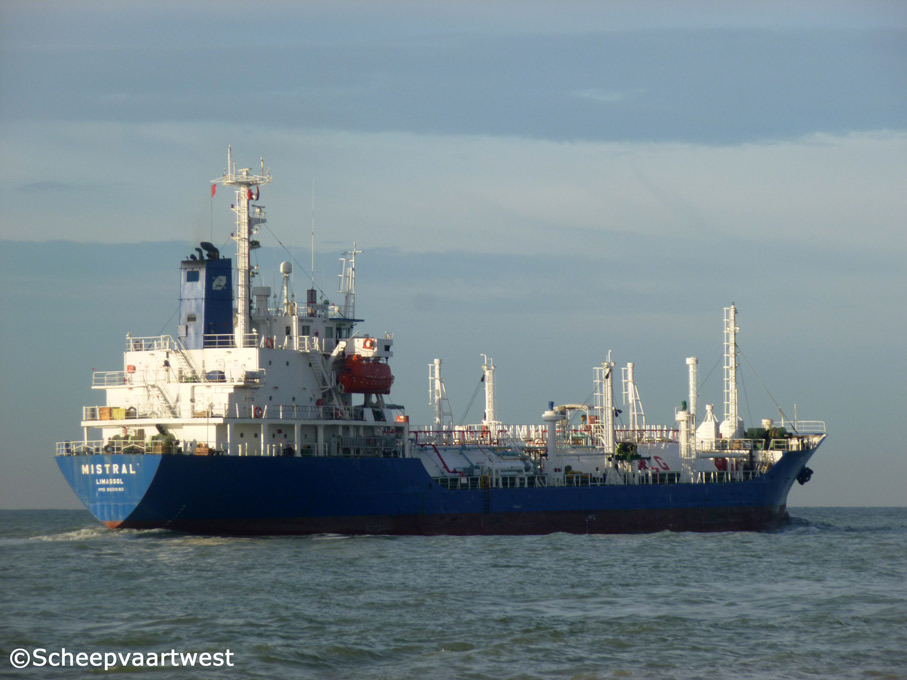

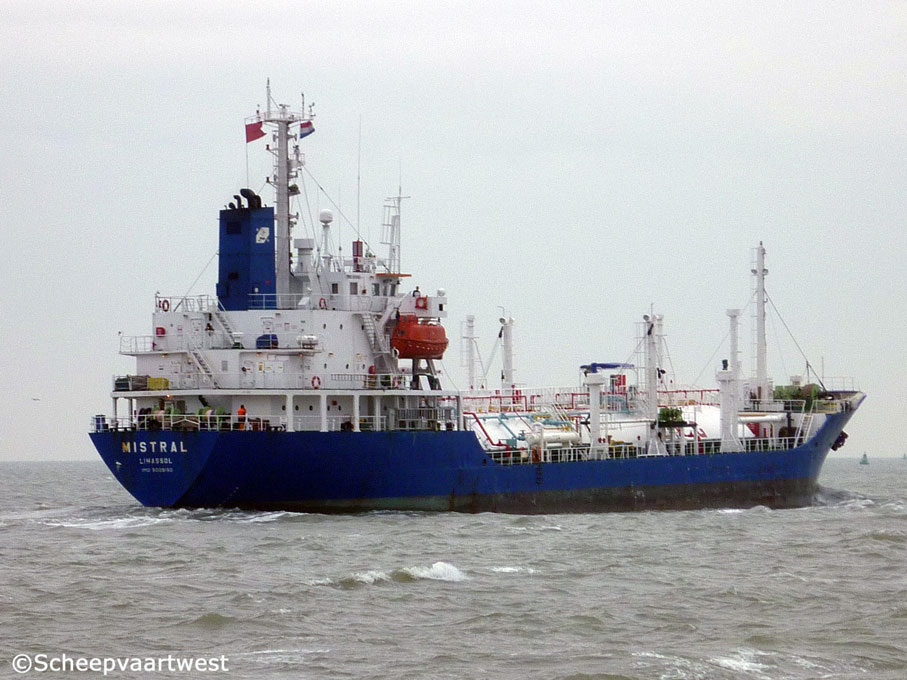

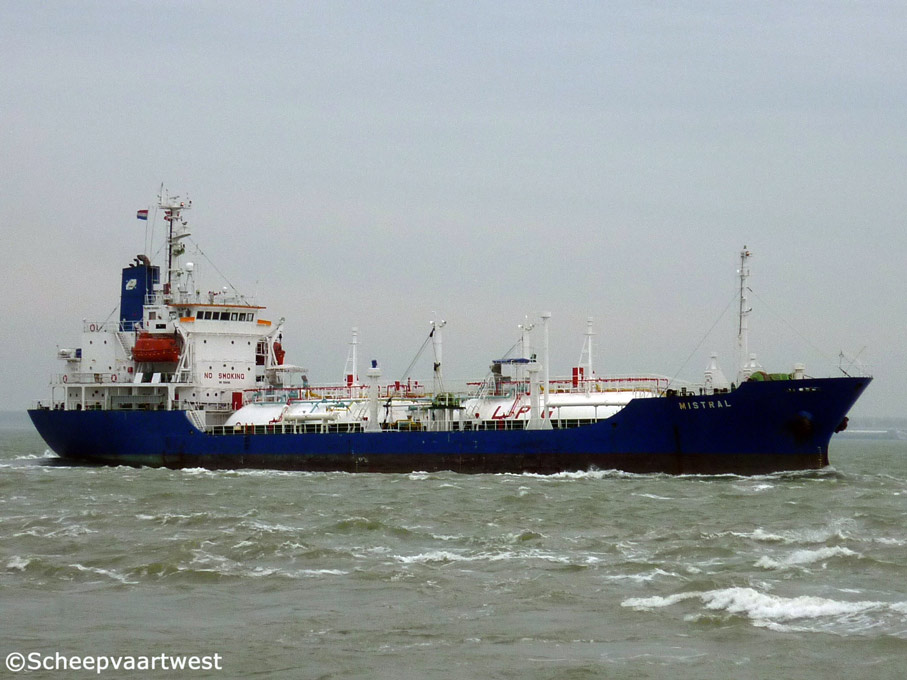

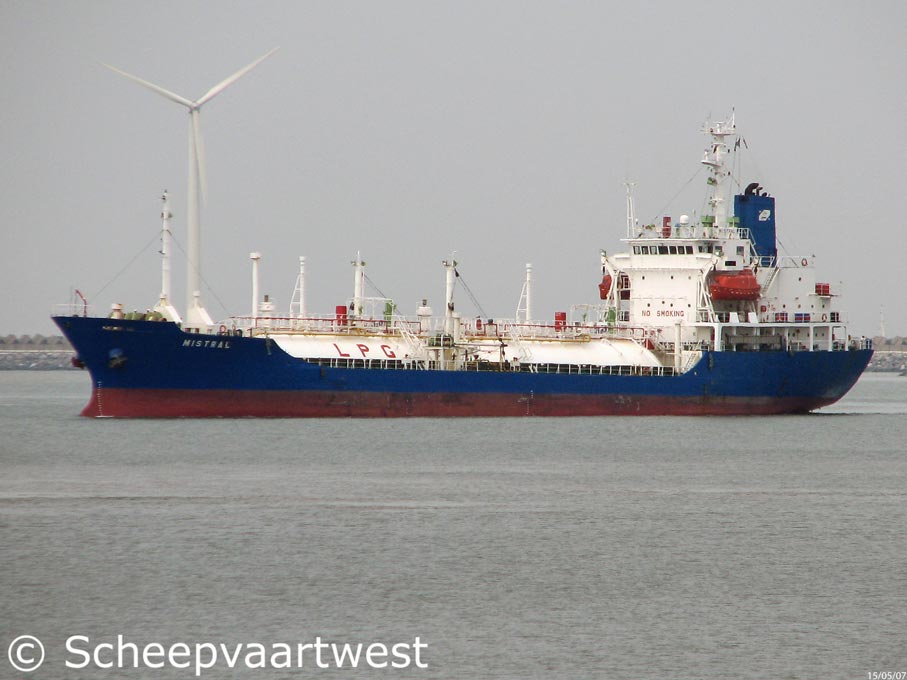

| Zeebrugge 25/05/06 | Zeebrugge 15/05/06 | Westerschelde 07/03/12 | Westerschelde 07/03/12 | Westerschelde 11/11/13 | Westerschelde 11/11/13 |
|
Name |
MISTRAL |
|
Previous name |
1990 - 2004 Derwent |
|
Type |
Liquefied Gas Tanker |
|
IMO-number |
9009190 |
|
Call sign |
P3XK9 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
GT |
3.494 t registered |
|
DWT |
4.428 t |
|
NT |
1.049 t registered |
|
Length |
99,75 m overall |
|
Breadth |
15,80 m |
|
Moulded L x B x D |
92,00 x 15,80 x 7,50 m |
|
Registered L x B x D |
92,08 x 15,80 x 7,50 m |
|
Draught |
5,863 m |
|
Freeboard |
Summer: 1.673 mm |
|
Depth |
7,50 m registered |
|
Speed |
Service: 12,6 knots Trial: 15,0 knots |
|
Built |
1990 |
|
Keel laid |
26.06.1990 |
|
Launch date |
22.09.1990 |
|
Date of completion |
26.12.1990 |
|
Builder |
Kanrei Shipbuilding Co. Ltd |
|
Yard number |
348 |
|
Hull type |
Double bottom |
|
Main engine |
1x Mitsubishi 6UEC37LA - 2 stroke 6 cylinder 370 x 880 mm diesel engine - 2.650 kW at 200 rpm |
|
Number of screws |
1 |
|
Boiler |
1x Auxiliary vertical boiler - 6,9 bar Evaporation: 0,99 t/h Manufacturer: Miura Co., Ltd. |
|
Generators |
3x Diesel generatorsets each 605 kVA |
|
Number of tanks |
2x Horizontal gas tanks |
|
Cargo capacity |
3.311 m³ |
|
Tank capacities |
Fuel oil: 533 m³ Fresh water: 229 m³ Water ballast: 1.548 m³ |
|
Lifting equipment |
2x Derricks - SWL 3,0 t each |
|
Ship manager |
Bernhard Schulte Shipmanagement (UK) Ltd. |
|
Owner |
Jaegers Gas Shipping Gmbh Co. KG |
|
Previous owners & managers |
12.1990 Komaya Shipping Co. (Pte.) Ltd., Singapore, p/a Seiho Kaiun K.K., Ehime, Japan. 19-10-2004 introduced by Jaegers Gas Shipping G.m.b.H., Limassol-Cyprus, remained under management by Hanseatic Shipping Co. Ltd., Limassol, renamed MISTRAL. |
