Monsoon 10
Westerschelde 25 September 2012

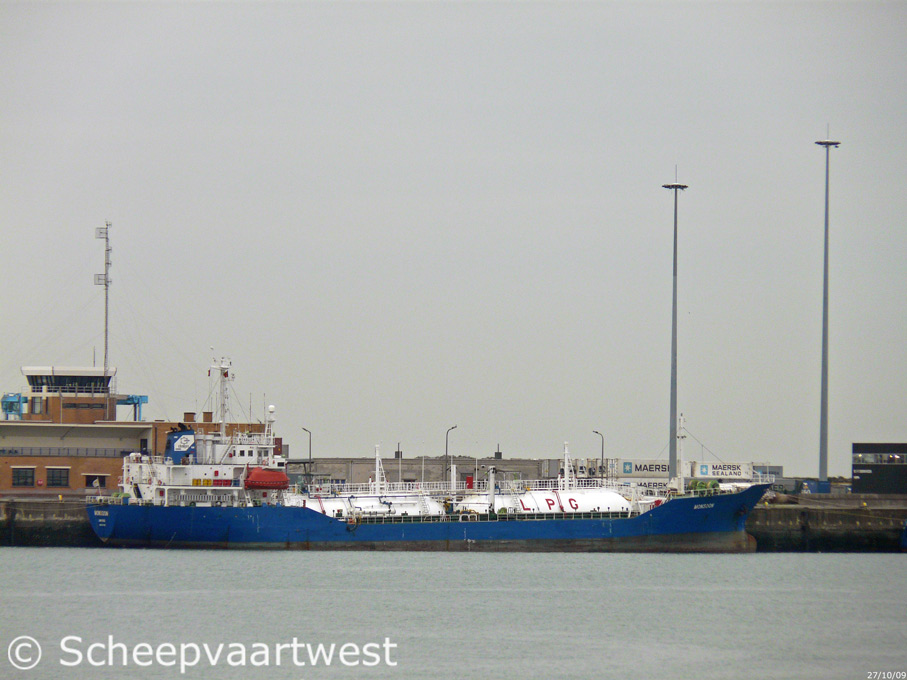

Monsoon 08
Zeebrugge 27/10/07



Name

MONSOON

Previous name

1989-2004 Ben Nevis

Type

Liquefied Gas Tanker

IMO-number

8811766

Call sign

P3YP9

Flag

Cyprus

Port of registry

Limassol

GT

3.219 t registered

DWT

3.814 t

NT

966 t registered

Length

99,13 m overall
92,00 m between perpendiculars

Breadth

16,00 m

Moulded L x B x D

92,00 x 16,00 x 7,20 m

Registered L x B x D

92,03 x 16,00 x 7,20 m

Draught

Summer: 5,349 m

Air draft

28,60 m

Freeboard

Summer: 1.881 mm

Depth

7,20 m

Speed

Service: 12,7 knots

Trial: 14,8 knots

Built

1989

Keel laid

28.07.1988

Launch date

09.12.1988

Date of completion

03.03.1989

Builder

Higaki Shipbuilding Co. Ltd.
Imabari
Japan

Yard number

367

Hull type

Single hull

Main engine

1x Mitsubishi Akasaka 6UEC37LA - 2 Stroke single acting 6 cylinder 370 x 880 mm diesel engine - 3.300 hp / 2.427 kW at 195,0 rpm

Installed by Akasaka Tekkosho K.K., (Akasaka Diesels Ltd.)
Yaizu
Japan

Number of screws

1

Boiler

1x Auxiliary water tube boiler - 6,9 bar

Evaporation: 0,99 t/h

Manufacturer: Clayton Of Belgium N.V

Generators

3x Main diesel generatorsets each 623 kVA

Cargo capacity

3.203,55 m³

Tank capacities

Fuel oil: 397 m³

Fresh water: 202 m³

Water ballast: 705 m³

Lifting equipment

2x Derricks - SWL 0,8 t each

Crew

16

Manager

Bernhard Schulte Shipmanagement (UK) Ltd.

Operator

Chemgas Shipping BV (Intercoastal C.V.)
Van Vollenhovenstraat 3
3016 BE Rotterdam
The Netherlands

Owner

Jaegers Gas Shipping G.m.b.H.
Limassol
Cyprus

Registered owner

Jaegers Gas Shipping GmbH & Co. K.G.

Königstraße 88
D-47198 Duisburg
Germany
