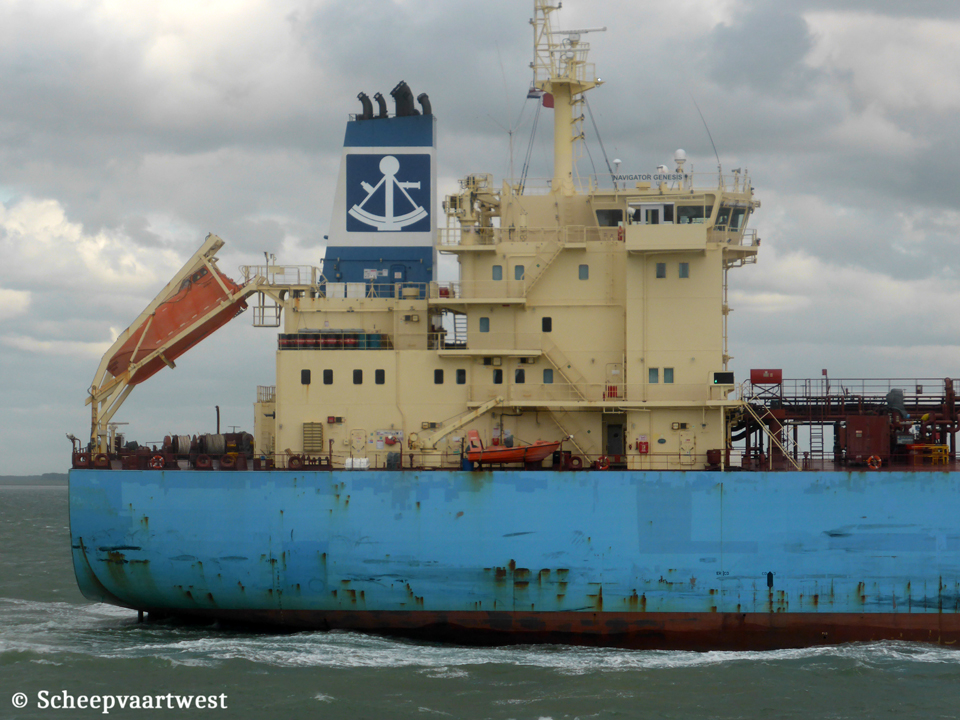

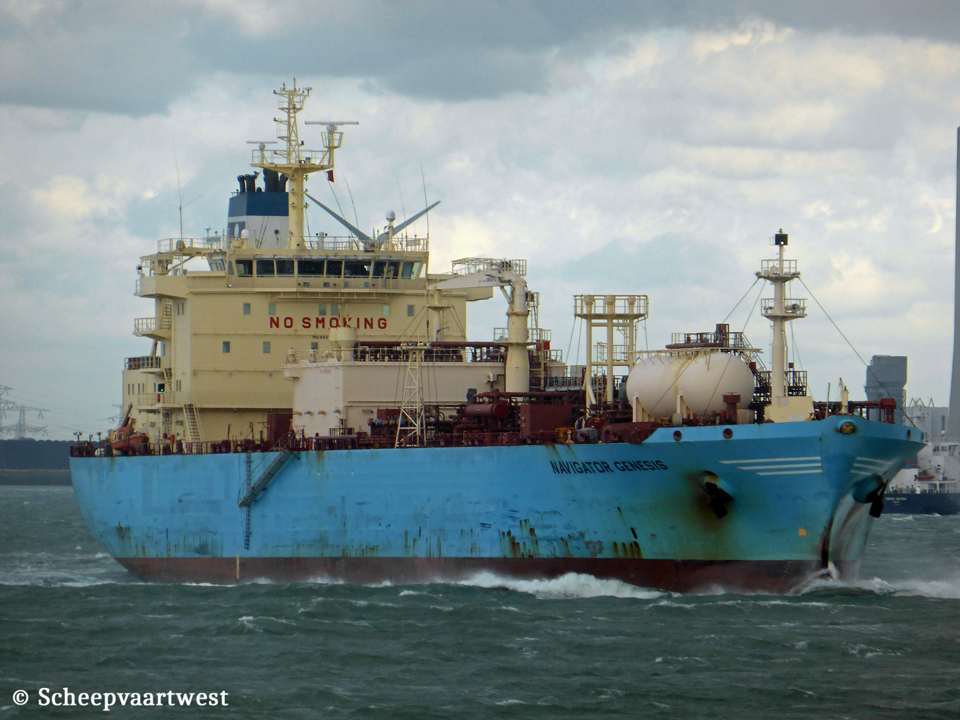

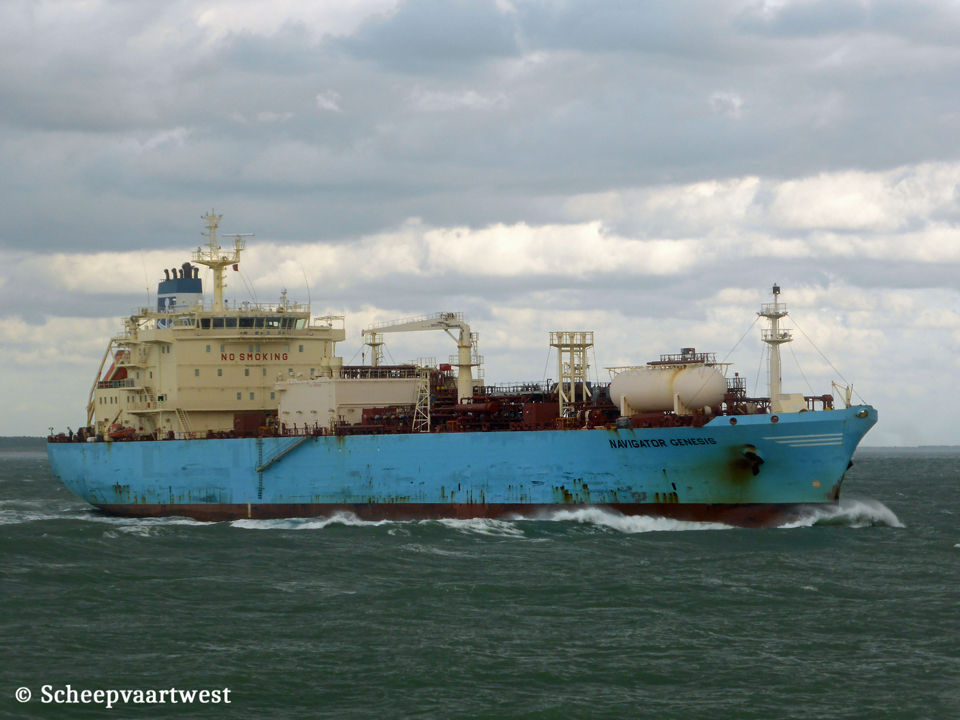

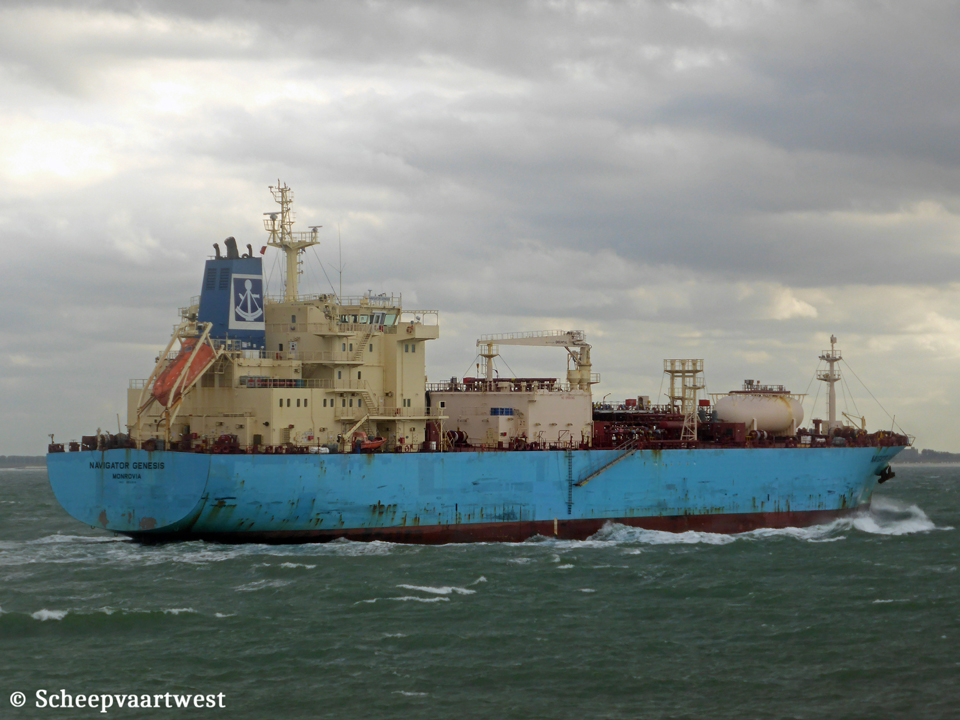

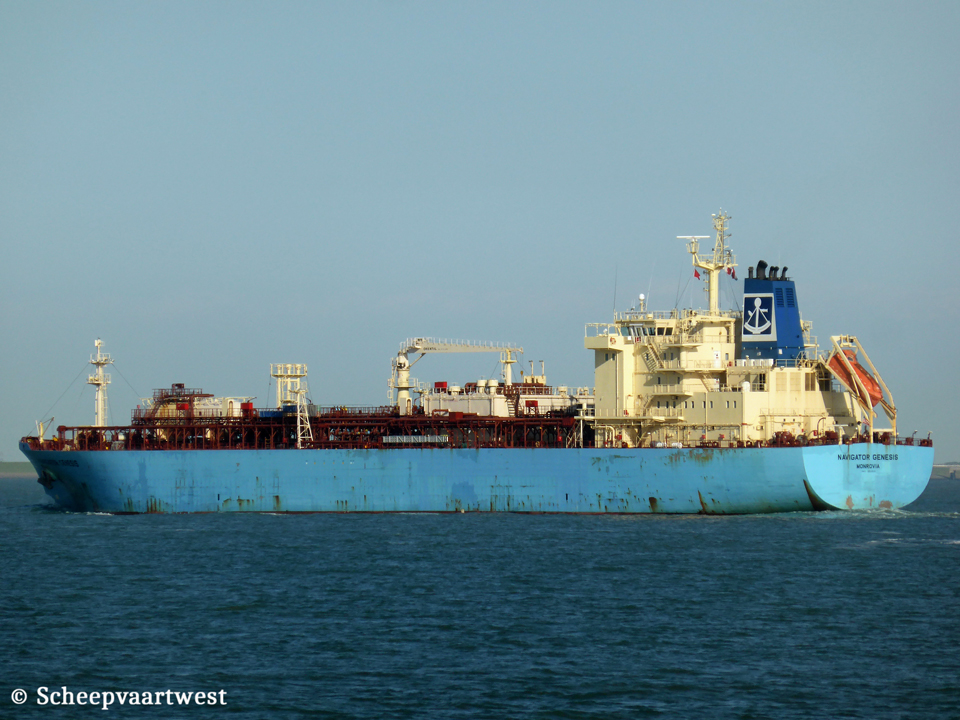

| Westerschelde 27 July 2015 |
 |
 |
 |
 |
|||
| Westerschelde 27/07/15 | Westerschelde 27/07/15 | Westerschelde 27/07/15 | Westerschelde 21/05/15 | |||
|
Name |
NAVIGATOR GENESIS |
|
Previous names |
2011 - 2013 Maersk Genesis |
|
Type |
Liquefied gas tanker - LPG |
|
IMO-number |
9531519 |
|
Call sign |
D5DQ3 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flags |
2011 - 2013 Republic of Singapore, Singapore City - Call sign: 9V9293 |
|
GT |
16.823 t |
|
DWT |
16.670 t |
|
NT |
5.046 t |
|
Length |
154,17 m overall 147,00 m between perpendiculars |
|
Breadth |
25,53 m |
|
Draught |
Summer: 8,82 m |
|
Keel to mast end |
43,37 m |
|
Depth |
16,03 m |
|
Speed |
15,0 knots |
|
Built |
2011 |
|
Keel laid |
30/11/2010 |
|
Launch date |
01/04/2011 |
|
Date of completion |
14/06/2011 |
|
Builder |
Hyundai Heavy Industries Co., Ltd. Ulsan South Korea |
|
Yard number |
2354 |
|
Hull material |
Steel |
|
Hull type |
Single hull - Double bottom |
|
Main engine |
1x HHM/MAN-B&W 5S50MC-C8 - 2 stroke 5 cylinder 500 x 2.000 mm combustion engine 7.900 kW / 10.741 hp at 127,0 rpm |
|
Propellers |
1x Fixed pitch mono-block propeller |
|
Boilers |
Auxiliary boiler, composite Mission OC |
|
Generators |
3x Hyundai/Himsen 6H21/32 main diesel generatorsets each 1.270 kW |
|
Emergency generator |
1x Cummins 6CTA-8.3-D(M) diesel generatorset 187 kW |
|
Number of cargo tanks |
3x Independent tanks |
|
Cargo tank capacity |
Liquid: 22.093 m³ |
|
Number of pumps |
6x Cargo pumps each 350 m³/h |
|
Min temp |
-48 C° |
|
Tank capacities |
Ballast: 8.780,4 m³ |
|
Anchor equipment |
Length: 605,00 m |
|
Commercial manager |
Navigator Gas LLC The Verde, 10, Bressenden Place London, SW1E 5DH United Kingdom |
|
ISM manager |
Navigator Gas Shipmanagement Ltd. 10, Bressenden Place London, SW1E 5DH United Kingdom |
|
Registered owner |
Navigator Genesis LLC Care of Navigator Gas LLC The Verde, 10, Bressenden Place London, SW1E 5DH United Kingdom |
|
Previous names & owners |
2011 - 2013 Maersk Genesis - A.P.Moller Singapore Pte Ltd. |
|
Latest data adjustment |
29 November 2023 |
