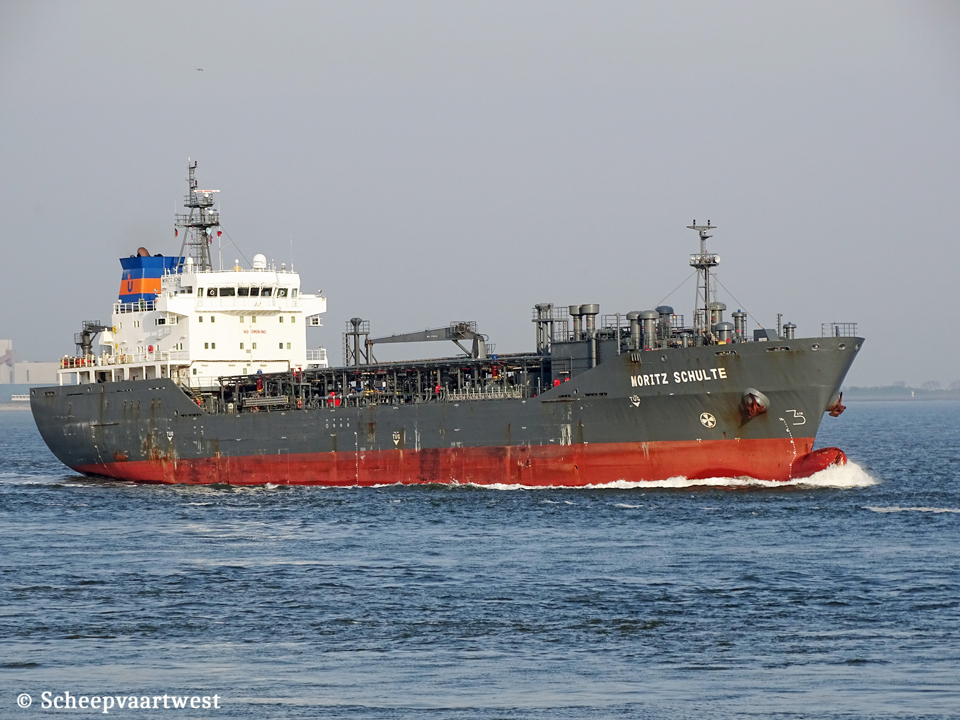

| Westerschelde 23 April 2020 |
 |
 |
 |
 |
 |
 |
|||||

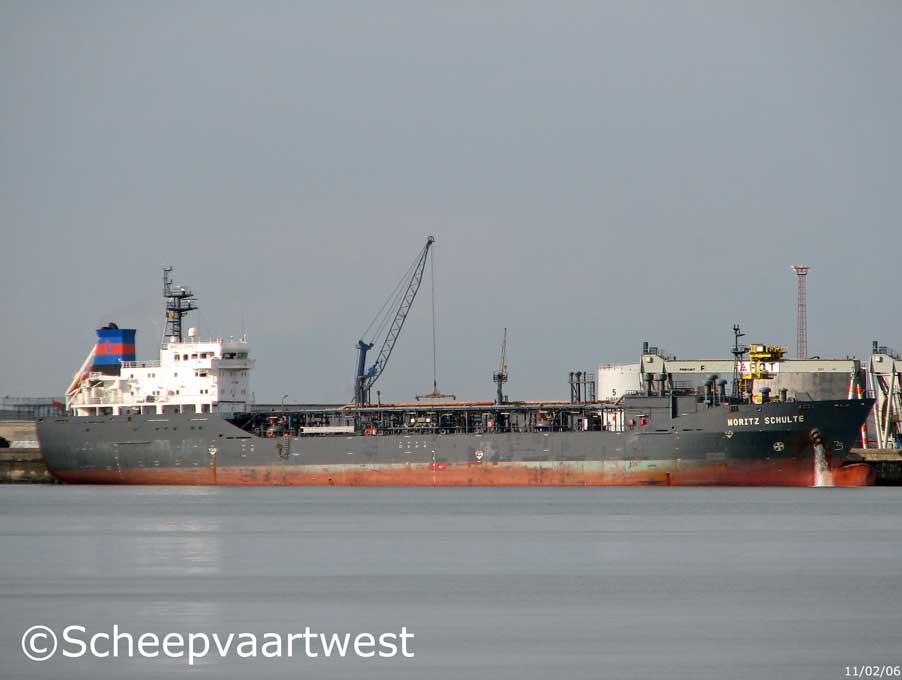

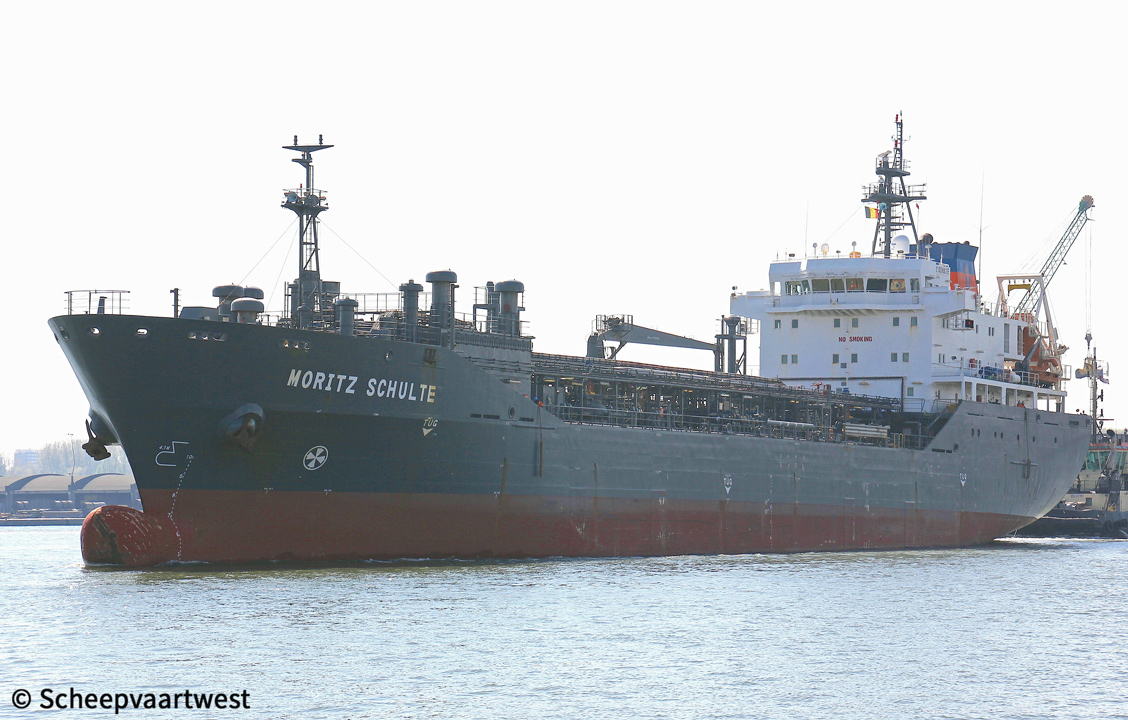

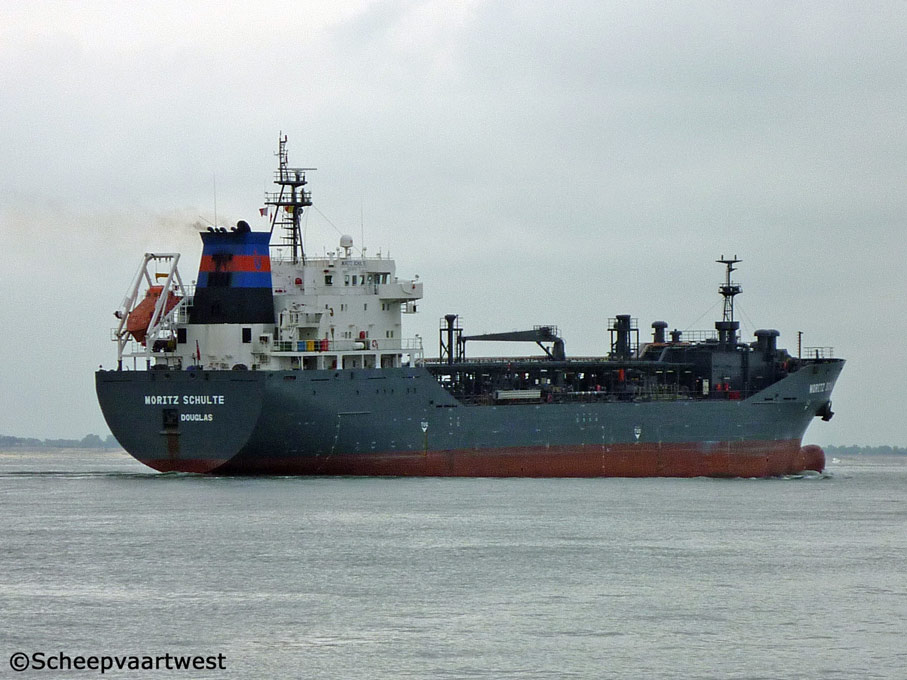

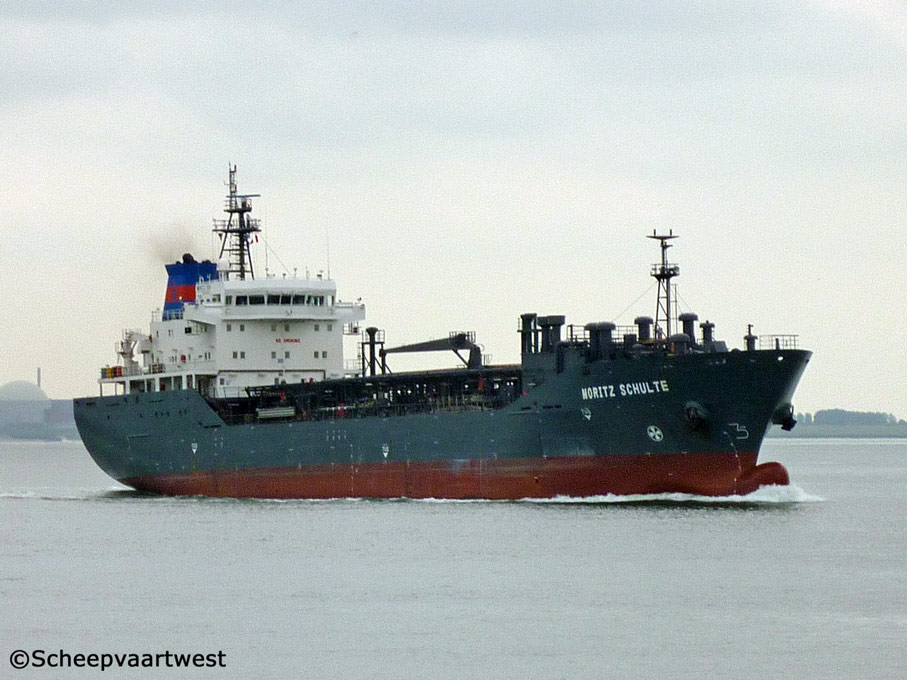

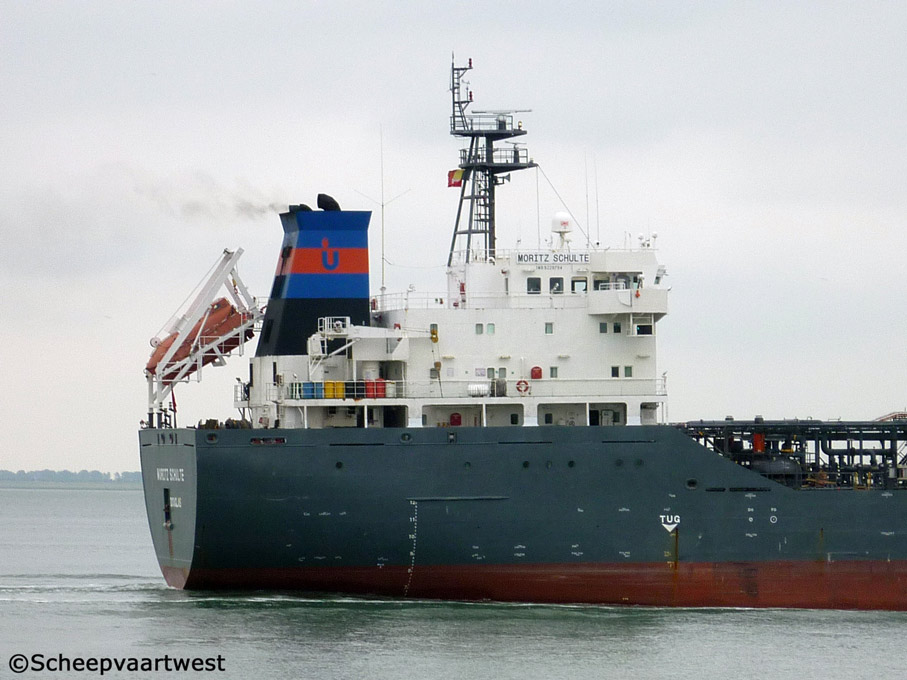

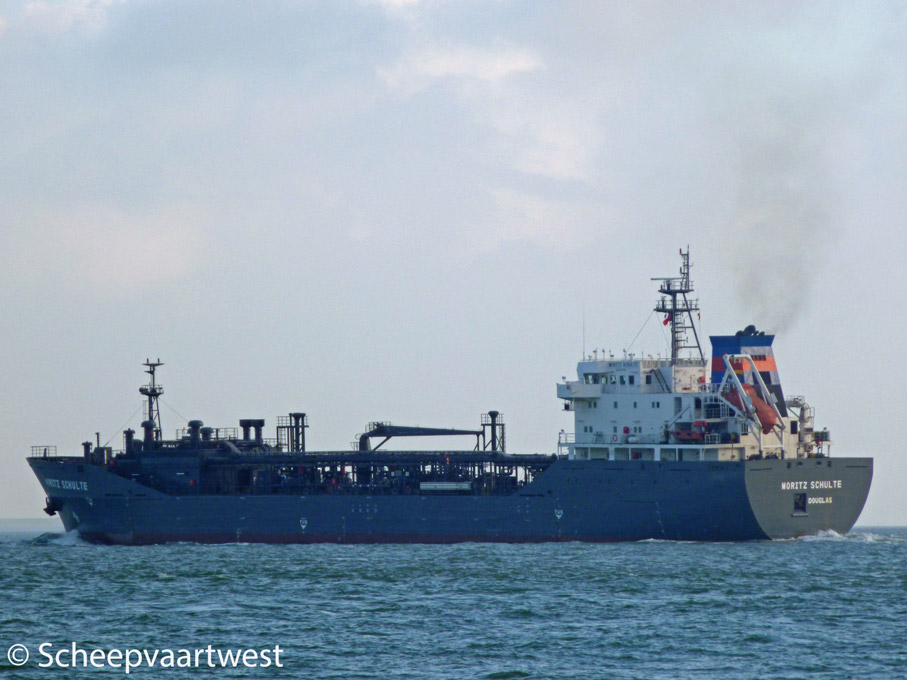

| Westerschelde 28/07/12 | Westerschelde 28/07/12 | Westerschelde 11/11/12 | Zeebrugge 11/02/06 | Antwerpen 19/04/19 | Antwerpen 19/04/19 | |||||
 |
 |
 |
 |
|||||||

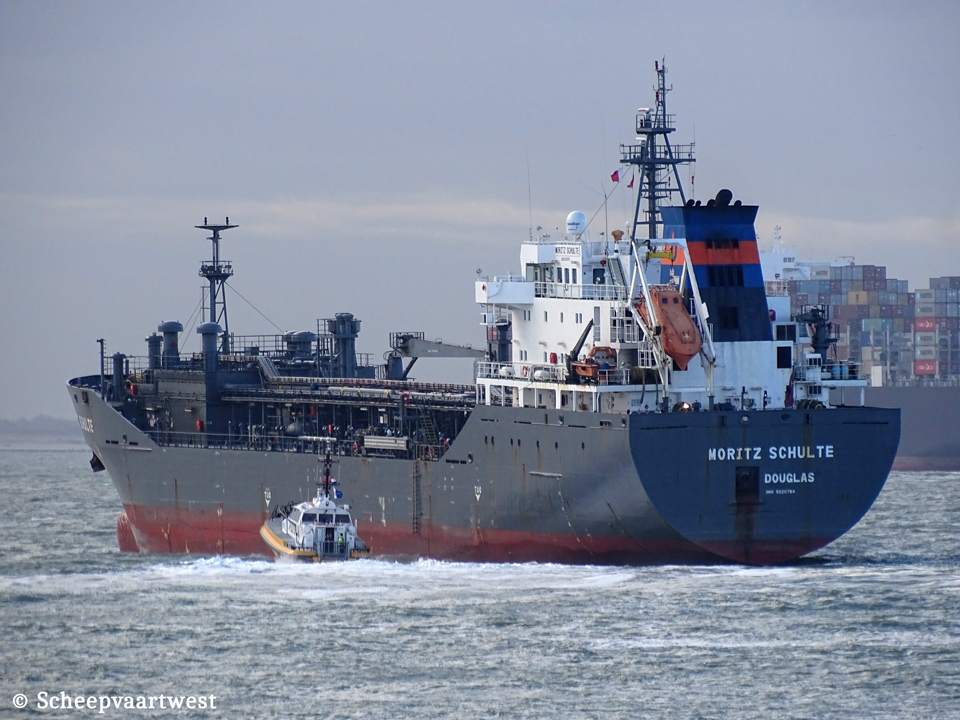

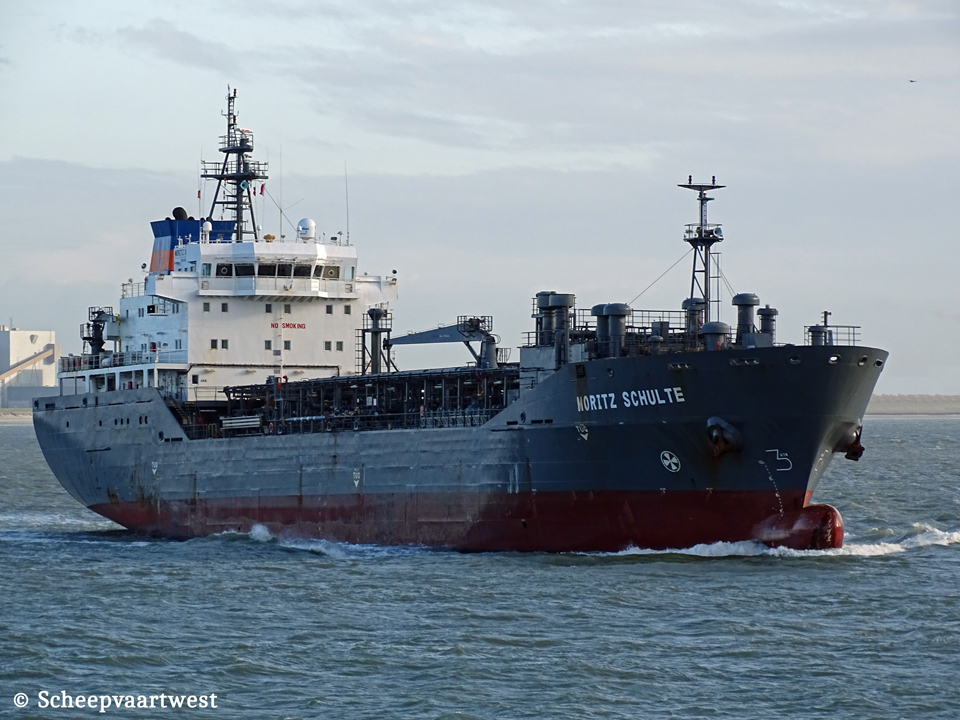

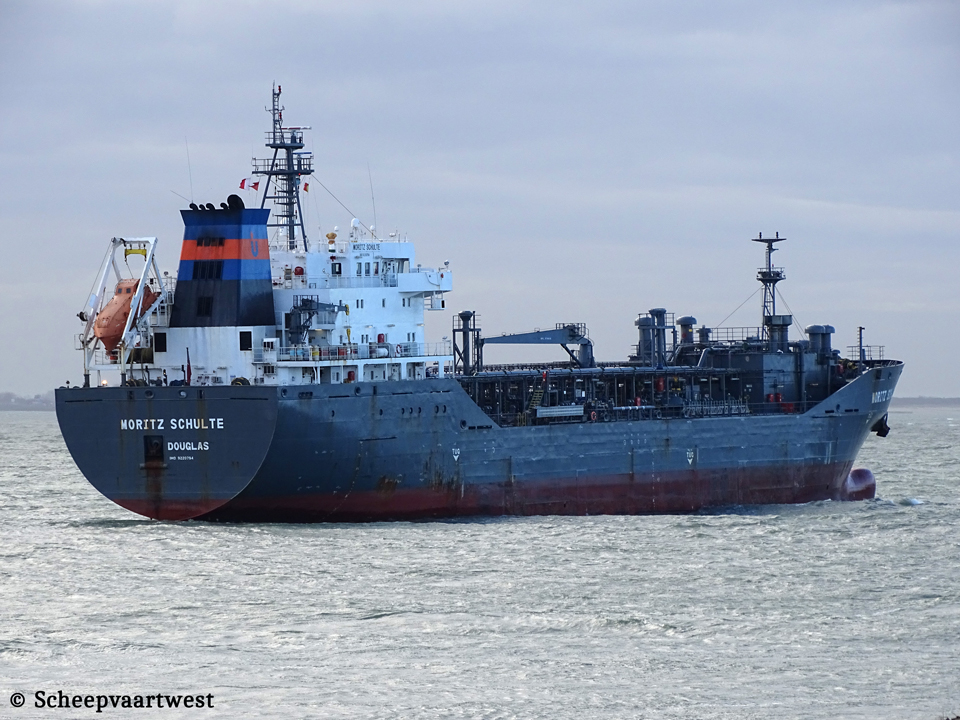

| Westerschelde 04/01/20 | Westerschelde 04/01/20 | Westerschelde 04/01/20 | Westerschelde 28/07/12 | |||||||
|
Name |
MORITZ SCHULTE |
|
Type |
Liquefied Gas Tanker |
|
Main products |
Ethylene - Ethane - Propylene - Propane, Commercial Propane (up to 5% Ethane) - Propane/ Butane - Anhydrous Ammonia Vinyl chloride Monomer (VCM) - i-Butane - Butylene - Butadiene - n-Butane - Acetaldehyde - Dimethylamine - Ethyl Chloride - Diethyl Ether - Ethylene Oxide/Propylene Oxide - Isoprene - Isopropylamine - Methyl Chloride - Monethylamine - Propylene Oxide - Vinyl Ethyl Ether - Pentane |
|
IMO-number |
9220794 |
|
Call sign |
ZNVF8 |
|
Flag |
Isle of Man - United Kingdom |
|
Port of registry |
Douglas |
|
GT |
8.234 t |
|
DWT |
9.174 t @scantling/VCM draught 9.360 t @design /Ethylene draught 6.450 t (with sea water s.g.=1.025 t/m³) |
|
NT |
2.471 t |
|
Length |
128,70 m overall 120,00 m between perpendiculars 121,83 m registered |
|
Breadth |
18,60 m moulded |
|
Draught |
Summer: 8,40 m |
|
Draft |
Ethylene: 6,95 m moulded VCM: 8,45 m moulded |
|
Forecastle |
17,03 m |
|
Poop |
24,99 m |
|
Depth |
12,40 m moulded |
|
Speed |
16,45 knots |
|
Destination |
Grangemouth Scotland United Kingdom |
|
Purpose |
To degas |
|
Built |
2002 |
|
Keel laid |
16/10/2000 |
|
Launch date |
25/02/2001 |
|
Date of completion |
26/02/2002 |
|
Builder |
Jiangnan Shipyard (Group) Co., Ltd. 988, Jiangnan Ave. Changxing Island 200011 Shanghai People's Republic of China |
|
Yard number |
H2268 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
7 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 6 S 42MC - 2 stroke single acting 6 cylinder 420 x 1.764 mm combustion engine 6.480 kW at 136 rpm Year of manufacture: 2001 Manufacturer: HHM Shangchuan Diesel Co., Ltd. 1, Jimo Road, Pudong 200120 Shanghai People's Republic of China |
|
Number of screws |
1x Solid propeller (keyless) - aft |
|
Boilers |
1x Steam boiler, oil fired - 9,0 bar Heating surface: 17,0 m² 1x Exhaust gas heated Heating surface: 201,0 m² Year of manufacture: 2000 Manufacturer: Zhangjiagang Hailu Shazhou Boiler 17 Huangcheng Road South 215600 Zhangjiagang , Jiangsu People's Republic of China |
|
Electric installations |
3x Plants each 440/220 V - 3.240 kVA 1x Plant 440 V - 125 kVA |
|
Generators |
3x Main diesel generatorsets each 1.080 kVA |
|
Emergency generator |
1x Diesel generatorset 100 kW / 125 kVA |
|
Compressed air receivers |
2x Receivers each 3.300 litres - 30,0 bar 1x Receiver 160 litres - 30,0 bar 2x Receivers each1.000 litres - 8,0 bar |
|
Bow thruster |
1x Transverse thruster KAMEWA - 600 kW, forward |
|
Number of cargo tanks |
3 |
|
Cargo capacity |
8.200 m³ No.1 cargo tank (bilobe): 3.600 m³ No.2 cargo tank (cylinder): 1.000 m³ No.3 cargo tank (bilobe): 3.600 m³ |
|
Tank capacities |
Fuel oil: 1.055 m³ Ballast water: 2.966 m³ |
|
Cargo compressors |
Sulzer Burckardt 2K-160-2H |
|
Anchor equipment |
3x Anchors weight each 4.050 kg Chain length: 522,50 m |
|
Lifting equipment |
1x Crane Dong Nam - SWL 1,5 t 1x Gantry crane Dong Nam - SWL 5,0 t |
|
Accommodation |
4 Senior Officers, 5 Junior Officers + 12 Ratings |
|
Crew size |
24 |
|
Manager |
Bernhard Schulte Shipmanagement (Isle of Man) Ltd. Belmont Hill Dorchester House Douglas - Isle of Man United Kingdom |
|
Operator |
Unigas B.V. 3001 AB Rotterdam The Netherlands |
|
Owner |
Baldwin Shipping (IOM) Ltd. - United Kingdom c/o Dorchester Atlantic Marine Ltd. Thornton House Belmont Hill Douglas - Isle of Man United Kingdom |
|
Latest data adjustment |
05 May 2023 |
