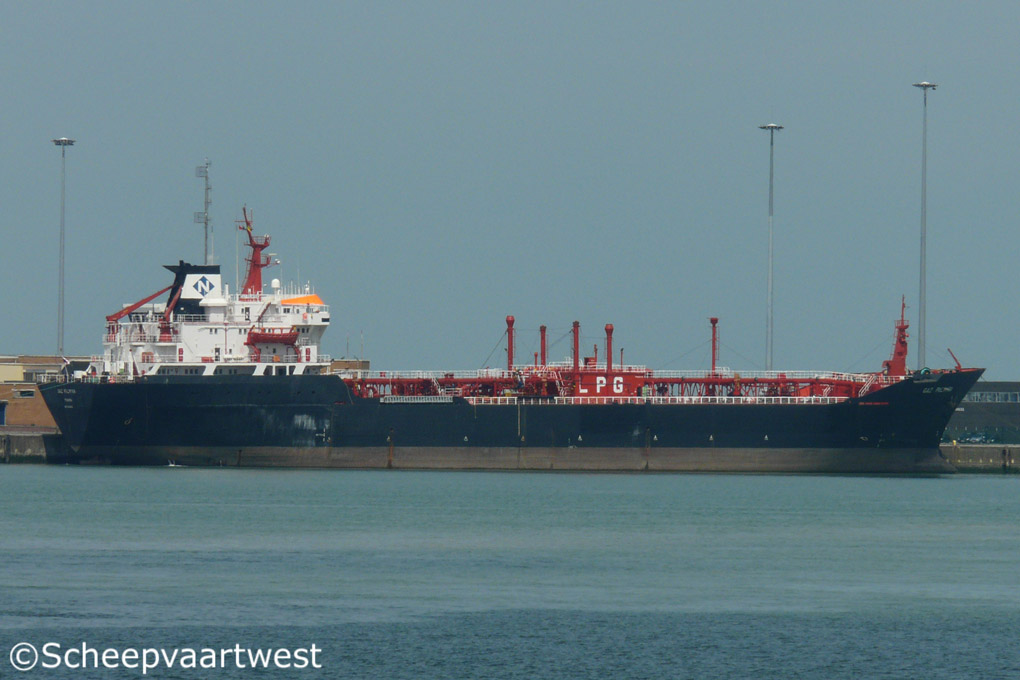

Gaz Palmyra 01
Zeebrugge 01 June 2012



Name

GAZ PALMYRA

Previous names

1984 - 01.05.1994 Miskar

Type

Liquefied gas tanker

Transport type

Refrigerated
Semi-Refrigerated

Main products

Ammoniac - Liquefied petroleum gases

Classification

Bureau Veritas

IMO-number

8206612

Call sign

3FCO4

Flag

Republic of Panama

Port of registry

Panama City

GT

10.228 t

Suez: 11.097 t

Panama: 11.319

DWT

Summer: 9.996 t

NT

3.068 t

Suez: 9.168 t

Panama: 8.073 t

Length

136,79 m overall

125,00 m between perpendiculars

Breadth

21,53 m moulded

Draught

8,00 m

Air draft

36,98 m

Freeboard

5.512 mm

Depth

13,51 m moulded

Speed

17,5 knots

14,0 knots in loaded conditions

Built

1984

Date of completion

05.06.1984

Builder

Astilleros Reunidos Del Nervion
Bilbao
Spain

Yard number

0160

Hull material

Steel

Hull type

Double bottom

Watertight bulkheads

8

Continuous decks

1

Main engine

1x Bazan MAN 14V 40/45A - 4 stroke 14 cylinder 400 x 540 mm diesel engine - 6.440kW / 8.750 hp at 450 rpm

Built: 1983

Builder: Bazan, Cartagene - Spain

Propeller

1x Screw propeller solid at 150 rpm

Boilers

1x CHM Clark Chapman 154,00 m² - 7,5 bar

Electrical installation

Power voltage: 440 V

Lighting voltage: 220 V

Generators

4x Main diesel generatorsets each 850 kVA - 680 kW - 1.006 hp

Number of tanks

3

Tank 1: 3450 m³

Tank 2: 4.347 m³

Tank 3 : 4.292 m³

Total: 12.089 m³

Tank max. pressure

4,9 bar

Minimum temperature

-48°C

Cargo pumps

6x 110 m³/h

Booster pumps

2x 220 m³/h

Cargo compressor

3x Sulzer K160 2H - 704 m³/h propane at -35°C

Fuel capacity 98%

Fuel oil: 1.483 m³ / 1.183 t

Diesel oil: 328 t

Lifting equipment

2x Cranes - SWL 1,6 t each

1x Crane - SWL 2,0 t

2x Cranes - SWL 5,0 t each

2x Derricks - SWL 3,0 t each

Crew

28

Manager

Interunity Management
Athens
Greece

Operator

Interunity Management Corporation

Owner

Naftomar Shipping & Trading
Athens
Greece

Registered owner

Isotrans Co. SA
