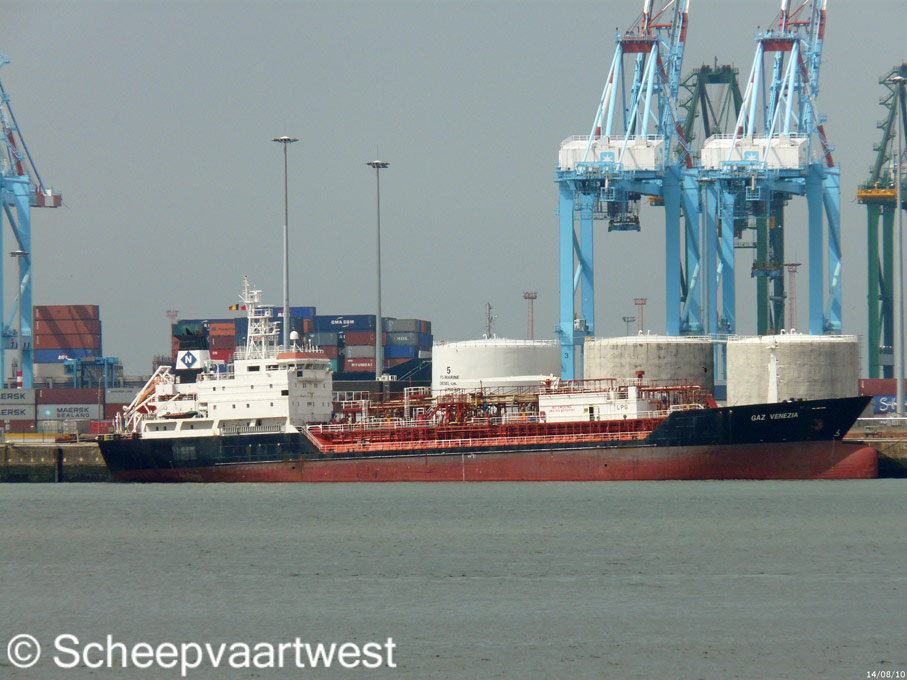

Gaz Venezia 04
Zeebrugge 14 August 2010



Name

GAZ VENEZIA

Type

Liquefied gas tanker

Semi pressurised / Fully refrigerated

IMO-number

9013701

Official number

27025-OOA

Call sign

3FVT5

Flag

Republic of Panama

Port of registry

Panama City

GT

6.105 t registered

Suez: 6.600 t

DWT

Summer: 7.569 t

NT

2.076 t registered

Suez: 4.910 t

Length

112,00 m overall

103,00 m between perpendiculars

Breadth

17,63 m over all

Draught

Summer: 8,513 m

Air draft

32,50 m

Depth

9,78 m moulded

Speed

Service: 14,5 knots

Built

1995

Keel laid

16.02.1990

Date of completion

01.12.1995

Builder

INMA - Ind. Navali Mecc. Affini
La Spezia
Italy

Yard number

4139

Hull material

Steel

Hull type

Single hull

Main engine

1x Wärtsilä VASA 6R46 diesel engine - 7.384 bhp at 500 rpm

Manufacture: Wärtsilä Finland Oy

Propeller

1x Controllable pitch 9PR4-14DS3 - Wärtsilä Propulsion Norway AS

Propulsion reduction gear

MIVB-915-5500 - Valmet Power Transmission Inc.

Boiler

Auxiliary boiler, composite AQ-16 - Aalborg Industries A/S

Shaft generator

1x 1.875 kW

Diesel generators

2x Wärtsilä 4R20 each 584 kW

1x Wärtsilä 6R20 - 872 kW

Manufacture: Wärtsilä Finland Oy

Number of tanks

3

Tank 1: 2.226 m³

Tank 2: 2.604 m³

Tank 3: 2.604 m³

Total: 7.434 m³ (100%)

Min. temp.

-48°C

Pressure

7,5 bar

Cargo pumps

6x Deepwell SVANEHOJ - 160 m³/h at 120 mLC each

2x Booster SVANEHOJ NH 150C, horizontal, centrifugal 250 m³/h at 120 mLC each

Cargo compressor

3x Sulzer 2K-140 2F oil free.

Stage 1: 831,3 m³/h

Stage 2: 360,3 m³/h

Cargo heater

1x Villa Scambiatori, using sea water 500 m³/h

Crew

26

Manager

Naftomar Shipping & Trading Co. Ltd.
243 Alkyonidon Avenue Voula 16673 Athens
GR-166 73 Voula
Greece

Owner

Transtar S.A.

Panama City
Republic of Panama
