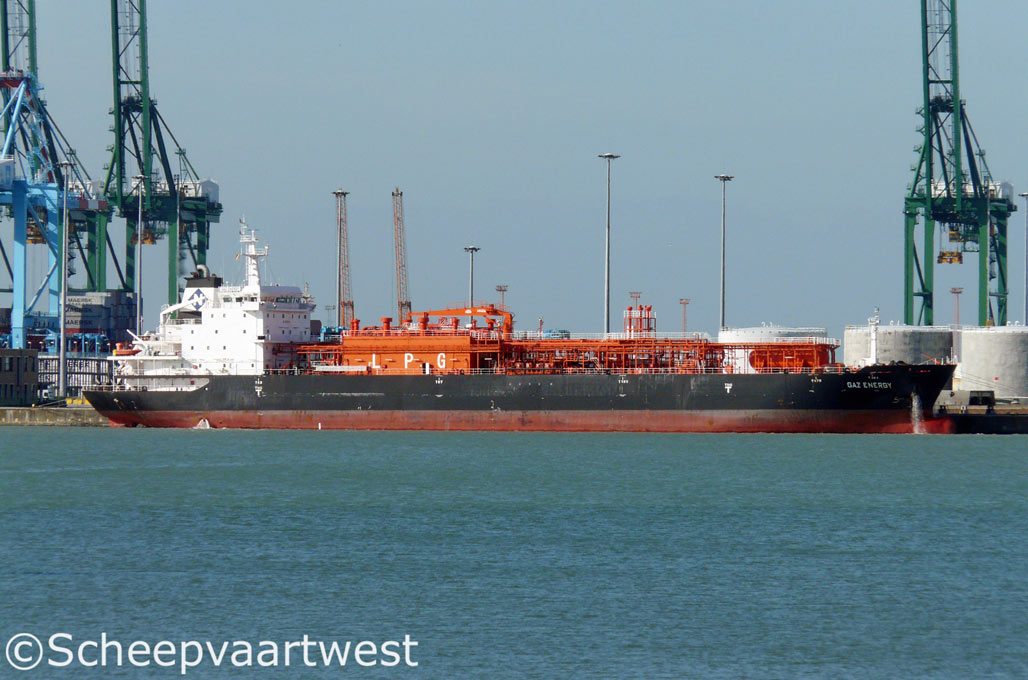

Gaz Energy 05
Zeebrugge 14 October 2011



Name

GAZ ENERGY

Type

Liquefied gas tanker

Transport type

Semi-Refrigerated

Main products

Ammoniac - Butane - Chemicals - Liquefied petroleum gases - Vinyl-Chloride monomer

IMO-number

9458169

Call sign

H9EP

Flag

Republic of Panama

Port of registry

Panama City

GT

15.314 t

DWT

Summer: 17.674 t

NT

4.782 t

Length

155,00 m overall

147,22 m between perpendiculars

Breadth

23,10 m

Draught

Summer: 9,60 m

Freeboard

3.109 mm

Depth

15,40 m

Speed

16,1 knots

Built

2010

Date of completion

15.09.2010

Builder

Yangzhou Dayang Shipbuilding Co.,Ltd.
Yangzhou
China

Yard number

DY902

Hull material

Steel

Hull type

Double hull

Watertight compartments

6

Continuous decks

1
Machinery aft

Main engine

1x MAN B&W 6550MC-C - 2 stroke 6 cylinder 500 x 2.000 mm diesel engine - 9.480 kW / 12.880 hp at 127 rpm

Built: 24.04.2009

Builder: Hudong Heavy Machinery Co., Ltd., Shanghai - China

Propelling system

1x Screw propeller solid at 127 rpm

Boilers

1x CHO AALBORG 17,39 m² - 9,0 bar
1x CHR AALBORG 132,00 m² - 12,0 bar

Generators

3x Diesel generatorsets each 1.313 kVA - 1.050 kW - 1.522 hp

Emergency generators

1x Main diesel generatorset 124 kVA - 99 kW - 152 hp

Number of tanks

3

Total capacity of tanks

16.756,1 m³

Tank max. pressure

5,5 kg/cm²

Minimum temperature

-48.0 °C

Fuel capacity

1.553,7 m³

Crew

24

Manager

Naftomar Shipping & Trading Co., Ltd.
Athens
Greece

Operator

Naftomar Shipping & Trading Co. Ltd.

Owner

LPG New Ship Co., S.A.
