Westerschelde 19 October 2020 |
 |
 |
 |
 |
 |
 |
|||||
| Westerschelde 25/11/11 | Westerschelde 25/11/11 | Westerschelde 04/10/11 | Westerschelde 24/01/12 | Westerschelde 24/01/12 | Westerschelde 11/06/14 |
|
Name |

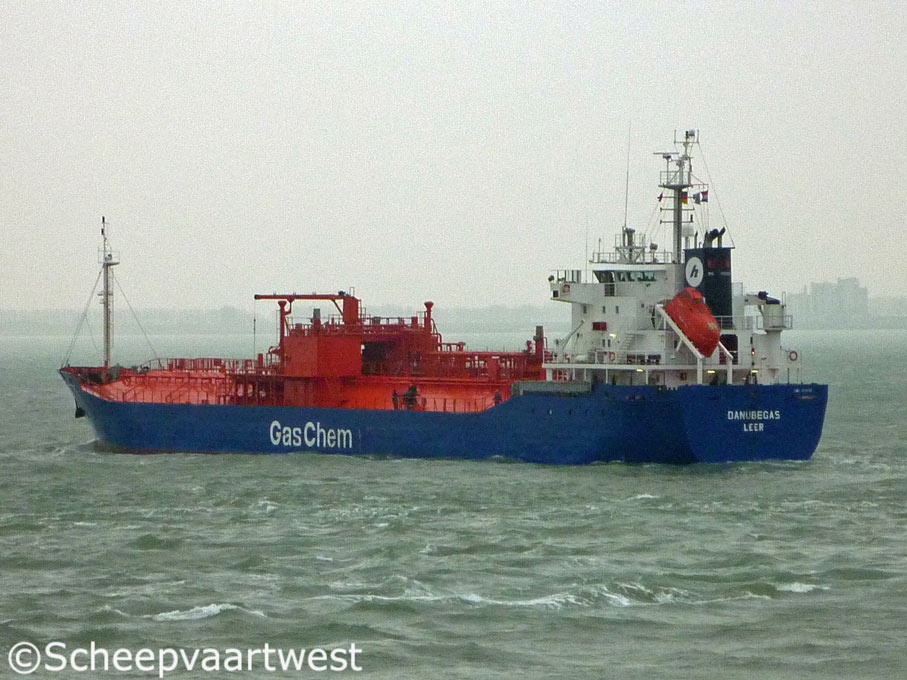

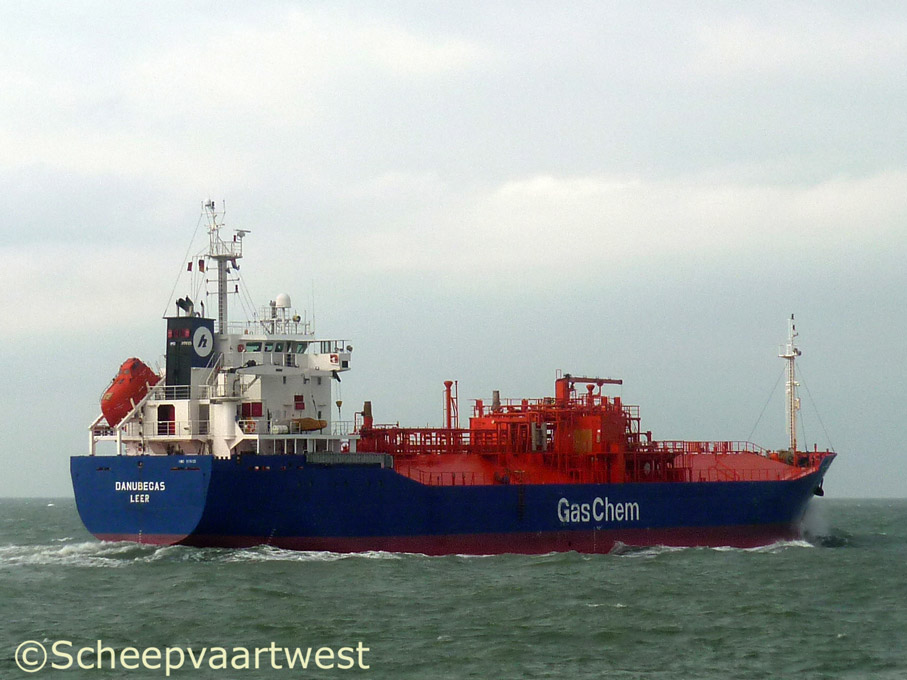

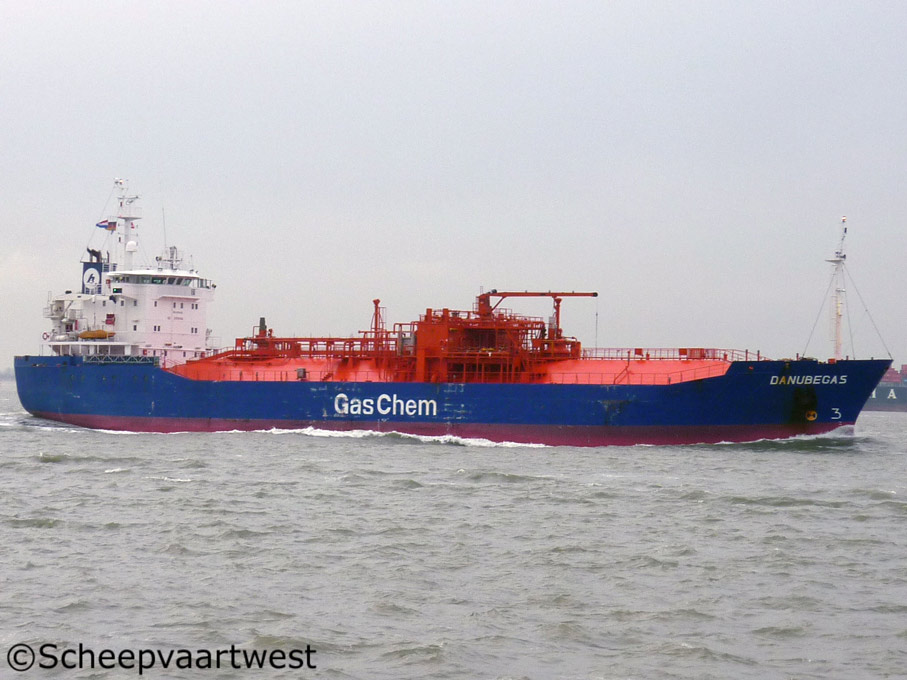

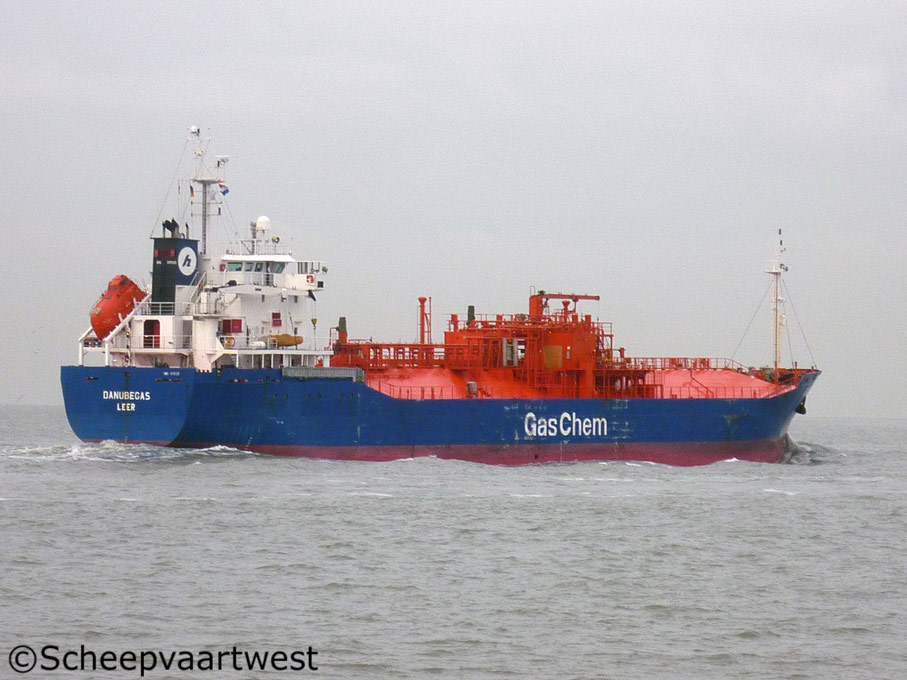

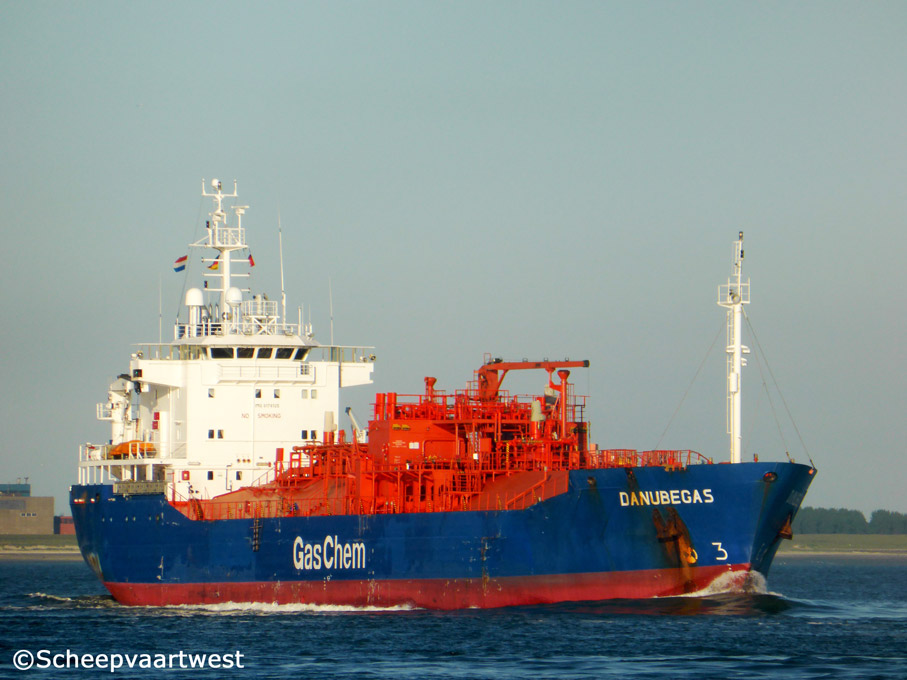

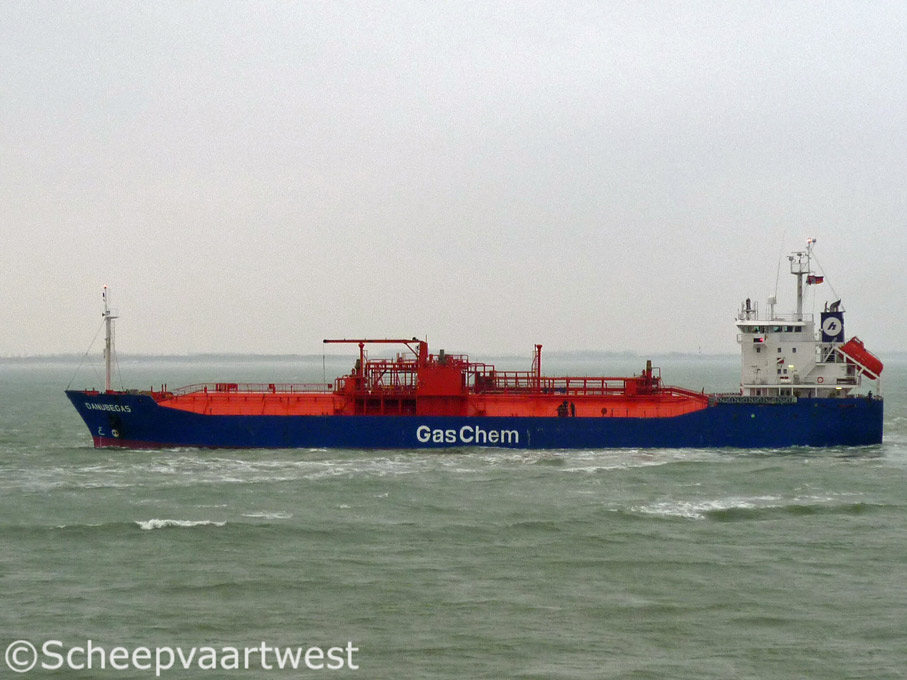

DANUBEGAS |
|
Type |
Liquefied gas tanker - Fully pressurized LPG / VCM carrier |
|
IMO-number |
9176125 |
|
Call sign |
DBOM |
|
Flag |
Germany |
|
Port of registry |
Leer |
|
GT |
4.201 t |
|
DWT |
4.197 t |
|
NT |
1.260 t |
|
Length |
98,53 m overall 93,38 m registered |
|
Breadth |
15,20 m registered |
|
Draught |
6,42 m |
|
Distance keel - top antenna |
30,00 m |
|
Forecastle |
8,48 m |
|
Poop |
17,90 m |
|
Depth |
10,00 m moulded |
|
Speed |
14,0 knots |
|
Built |
1988 |
|
Keel laid |
02/04/1996 |
|
Launch date |
27/09/1997 |
|
Date of completion |
10/08/1998 |
|
Builder |
Severnav S.A. Cale Timisoarei 204 220242 Drobeta Turnu Severin , Mehed. Romania |
|
Yard number |
150 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
7 |
|
Continuous decks |
2 |
|
Main engine |
1x MaK 6M32 - 4 Stroke 6 cylinder 320 x 480 mm combustion engine 2.640 kW at 600 rpm Year of manufacture: 1996 Manufacturer: Krupp Mak Maschinenbau GmbH Falckensteiner Str. 2 24159 Kiel Federal Republic of Germany |
|
Propeller |
1x Controllable pitch propeller - aft at 173 rpm |
|
Boilers |
1x Thermal oil heater, oil fired - 10,0 bar Heating surface: 21,0 m² 1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 84,2 m² Year of manufacture: 1996 Manufacturer: PWT Prozesswärmeträgertechnik GmbH Max-Weber-Str. 10 25451 Quickborn Federal Republic of Germany |
|
Electric installations |
1x Plant 440/220 V - 310 kVA 1x Plant 440/220 V - 310 kVA 1x Plant 440 V - 500 kVA 1x Plant 440 V - 300 kVA |
|
Shaft generator |
1x 500 kVA |
|
Generators |
2x MAN D 2866 LE diesel generatorsets each 310 kVA |
|
Emergency generator |
1x Man diesel generatorset 300 kVA |
|
Compressed air receivers |
2x Receivers each 250 litres - 30,0 bar 1x Receiver 30 litres - 30,0 bar 1x Receiver 500 litres - 10,0 bar |
|
Bow thruster |
1x Transverse thruster ULSTEIN type 90TV - 350 kW, forward |
|
Number of cargo tanks |
2 |
|
Cargo Tank capacity (100%) |
Tank 1: 2.185 m³ Tank 2: 2.180 m³ Total: 4.365 m³ |
|
Max. tank pressure |
18,0 bar |
|
Min. design temperature |
-10°C |
|
Pumps |
2x Deepwell DESMI type NH125-3-l pups - 183 m³/h at 1.785 rpm driven by electro motor 1x Booster pump type DESMI NIP 100 B-XLR pump - 180 m³/h at 3.580 rpm driven by electro motor |
|
Cargo compressor |
1x Köhler Hörter type TWE 8.11/6.1/0 oil free |
|
Tank capacities |
Fuel oil: 381 m³ Diesel oil: 181,0 m³ Freshwater: 174,2 m³ Ballast water: 1.882,4 m³ |
|
Anchor equipment |
3x Anchors weight each 2.640 kg Chain length: 467,50 m |
|
Crew complement |
15 |
|
Manager |
Hartmann Schiffahrts GmbH & Co. KG Königstr. 23 26789 Leer Federal Republic of Germany |
|
Operator |
GasChem |
|
Owner |
Chemgas Schiffahrts GmbH & Co. MT "RHONE" KG Königstr. 23 26789 Leer Federal Republic of Germany |
|
Latest data adjustment |
19 February 2021 |
