| Westerschelde 07 August 2017 |
|
Name |

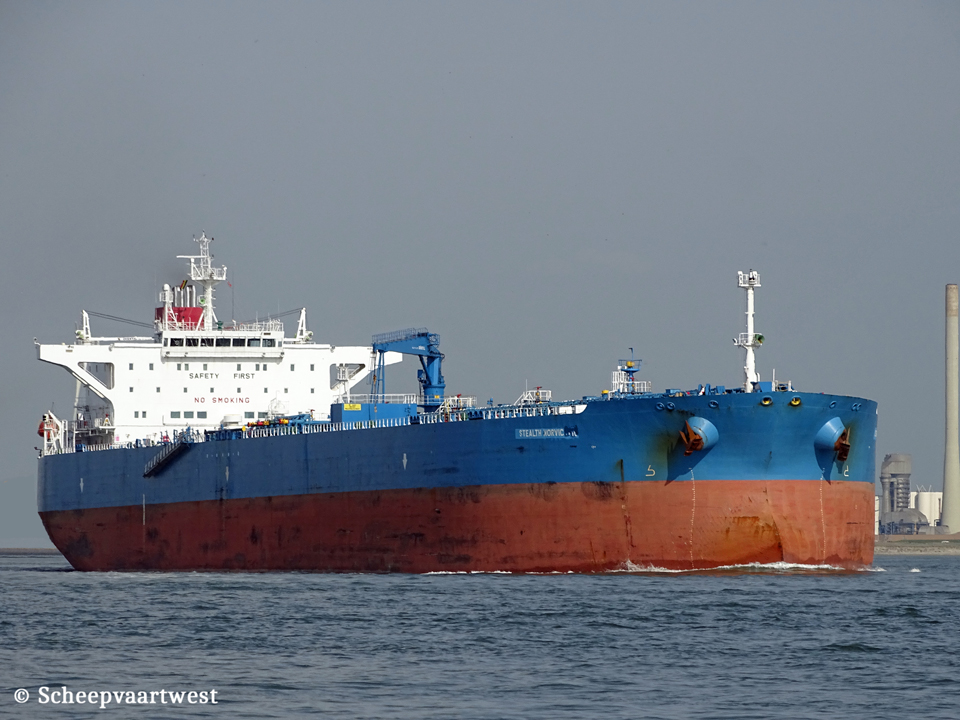

STEALTH NORVIC |
|
Previous names |
08/2010 - 11/2015 Avor 11/2005 - 02/2016 Stealth Majestic |
|
Type |
Crude oil tanker |
|
IMO-number |
9437684 |
|
Call sign |
D5JL7 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flags |
08/2010 - 11/2015 Malta, Valletta |
|
GT |
61.341 t Suez: 63.224,67 t |
|
DWT |
Summer: 115.867,0 t Winter: 112.999,4 t |
|
NT |
35.396 t Suez: 57.927,11 t |
|
Displacement |
Summer: 133.329 t Winter: 130.462 t |
|
Light displacement |
17.463 t |
|
Length |
248,96 m overall 239,00 m between perpendiculars |
|
Breadth |
43,80 m extreme |
|
Draught |
Summer: 14,93 m Winter: 14,62 m |
|
Keel to mast end |
48,35 m |
|
Air draft |
Dummer DWT: 33,42 m Normal ballast: 40,42 m Lightship: 45,90 m |
|
Freeboard |
Summer: 6.120 mm Winter: 6.430 mm |
|
Depth |
21,04 m moulded |
|
Speed |
Ballast: 15,0 knots / Economic: 13,0 knots Laden: 14,5 knots / Economic: 12,5 knots |
|
Build |
2010 |
|
Keel laid |
12/04/2010 |
|
Date of completion |
19/08/2010 |
|
Builder |
Samsung Heavy Industries Co. Ltd., Koje Shipyard Geoje South Korea |
|
Yard number |
1758 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x Doosan/MAN-B&W 6S60MC-C - 2 stroke 6 cylinder 600 x 2.400 mm combustion engine 13.560 kW / 18.436 hp at 105,0 rpm |
|
Propellers |
1x Fixed pitch propeller |
|
Generators |
3x Yanmar 8N21L-SV diesel generatorsets each 880 kW |
|
Number of tanks |
12 + 2 slop tanks |
|
Cargo tank capacity |
Seg#1: 41.704 m³ (1+4-slops) Seg#2: 43.225 m³ (2+5) Seg#3: 42.582 m³ (3+6) Total: 127.511 m³ |
|
Slop tank capacity |
3.868,6 m³ |
|
Number of pumps |
3x Centrifugal cargo pumps each 2.800 m³/h 2x Centrifugal ballast pumps each 1.500 m³/h |
|
Manifolds |
Distance bridge front to centre of manifold: 82,18 m Bow to centre manifolds: 25,34 m Stern to centre manifolds:123,63 m Distance between cargo manifold centres: 2.500 mm Distance ships rail to manifold: 4.438 mm Distance manifold to ships side: 4.600 mm Top to rail to centre of manifold: 700 mm Distance main deck to centre manifold: 2.100 mm Spill tank grating to centre of manifold: 900 mm |
|
Tank capacities |
Fuel oil: 2.628,20 m³ Diesel oil: 583,10 m³ |
|
Lifting equipment |
1x Crane - SWL 15,0 t |
|
Manager |
Stealth Maritime Corp SA 331, Kifisias Avenue Kifisia, 145 61 Athens Greece |
|
Renamed |
09/2017 Chrysalis Liberia, Monrovia - Call sign: D5JL7 Owner: Eclipse Liquidity Inc., Monrovia- Liberia ISM & commercial manager: Stealth Maritime Corp Sa, Athens - Greece |
|
Latest data adjustment |
13 October 2024 |
