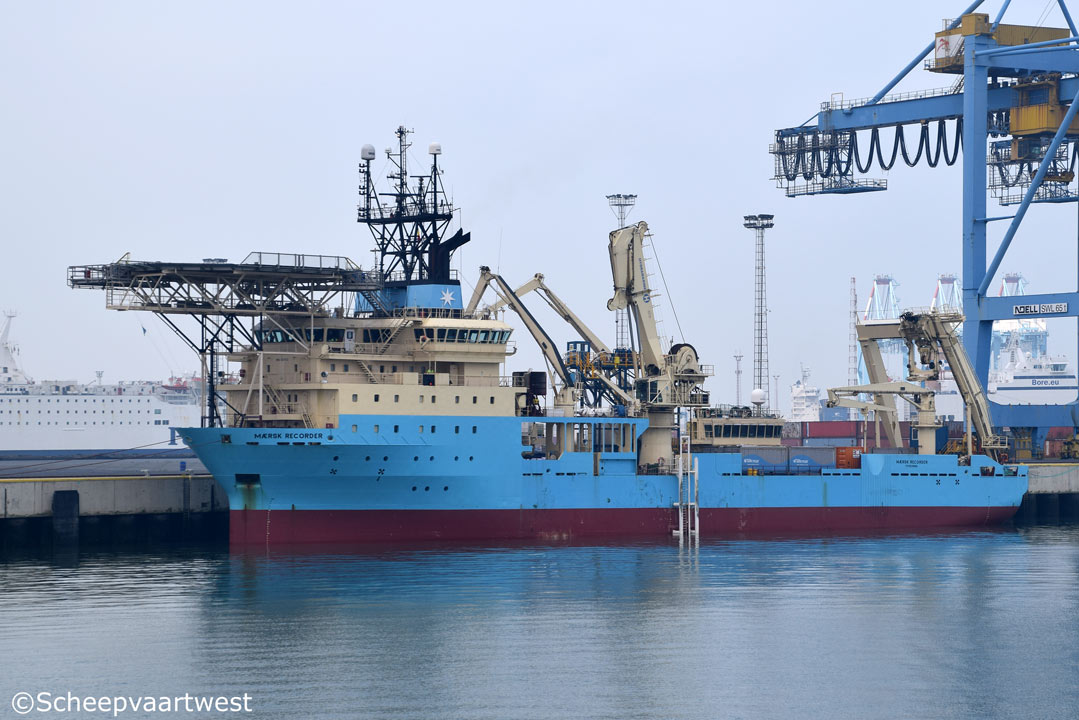

Maersk Recorder 03

Zeebrugge 25 October 2016

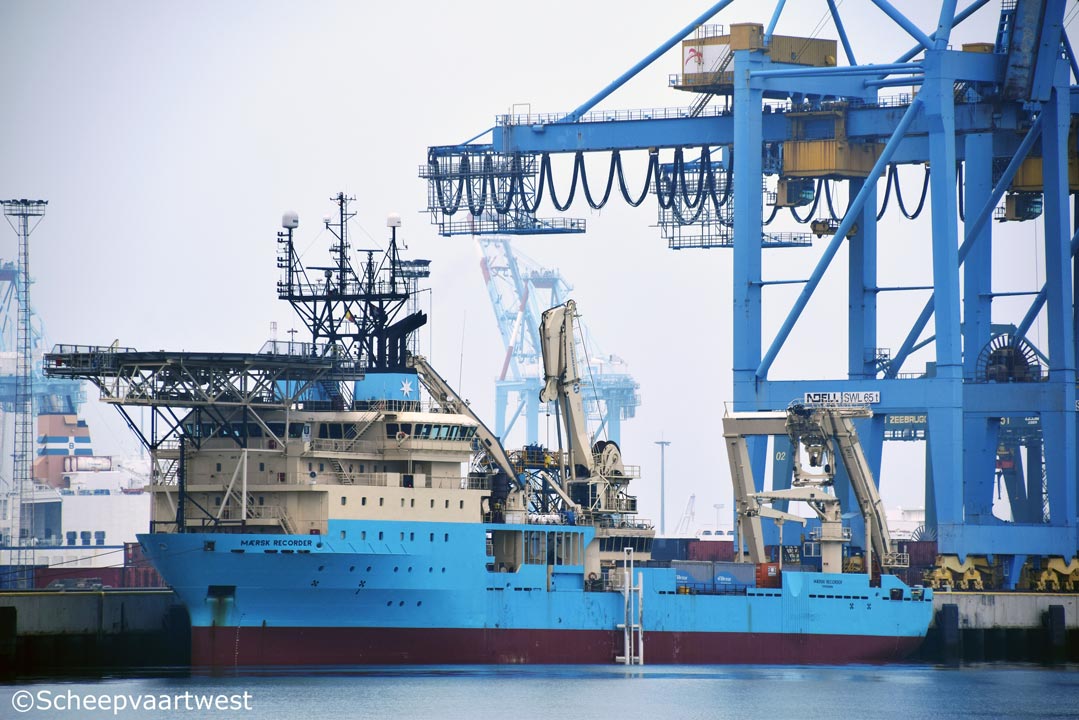

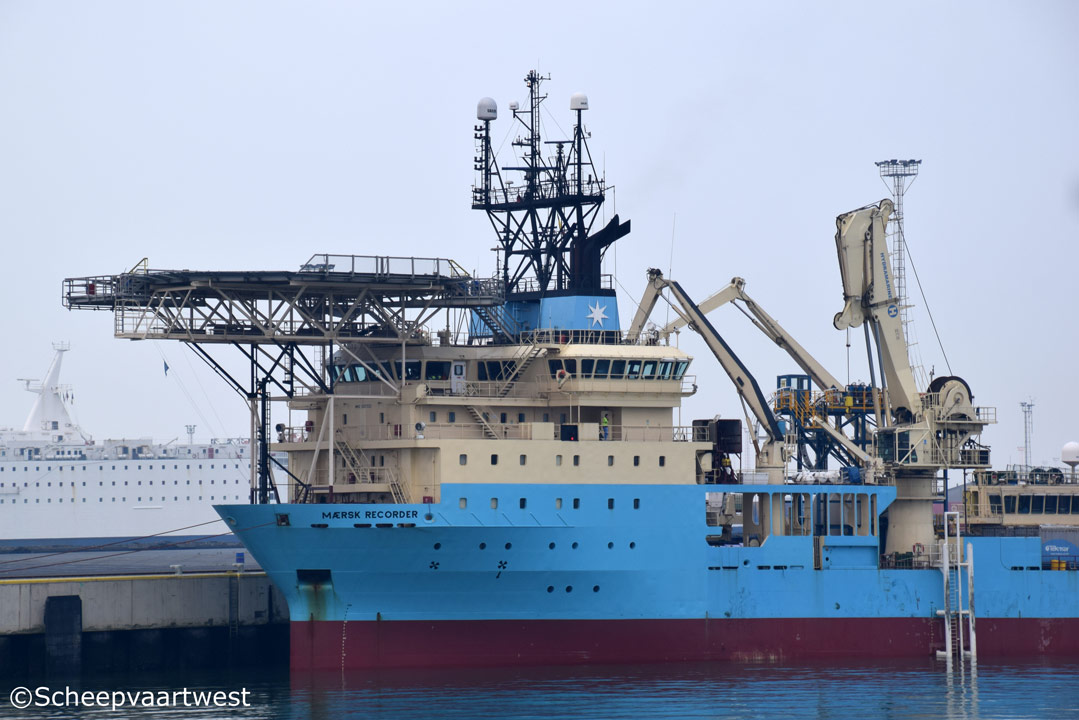

Maersk Recorder 01   Maersk Recorder 04
Zeebrugge 25/10/16 Zeebrugge 25/10/16


Name

MAERSK RECORDER

Type

Cable layer & Pipe layer - Service ship

IMO-number

9207053

Call sign

OZXK2

Flag

Denmark

Port of registry

Thyborøn

GT

6.292 t

DWT

7.919 t

NT

1.887 t

Length

105,80 m overall

83,70 m between perpendiculars

Breadth

20,01 m

Draught

Summer: 9,10 m

Depth

12,00 m

Speed

Max.: 14,2 knots

Economic: 10,0 knots

Built

2000

Builder

PS Werften Stralsund (Volkswerft)
Stralsund
Germany

Yard number

430

Hull material

Steel

Main engine

2x MAN B&W 8L32/40 - 8 cylinder diesel engines total 7.680 kW / 10.440 bhp

Propellers

2x Controllable pitch main propellers

Thrusters

1x Bow tunnel - 1.200 bhp

1x Bow azimuth - 1.000 bhp

2x Stern tunnel - 1.200 bhp

Bollard pull

112 t

Deck equipment

Crane Full AHC

Capacity: 30 t @ 1.500 m

Plough tow winch: 1x 60 t

Cable tanks capacity: 2x 2.500 t + 2x 500 t

Cable tanks volume: 2x 1.950 m³ + 2x 450 m³

Capstans: 2x 8 t

Tugger winches: 2x 10 t

Cranes: 3x 5 t @ 11,00 m

A-frame: 60 t

Deck capacity

Deck strength: 10 t/m² & 5 t/m²

Free deck area: Length 60,00 m Width 20,00 m

Cable load capacity

2.000 t

Cable volume

1.500 m

Helideck

19,50 m diameter
CAP 437
9,3 t take-off weight

Tank capacities

Drill/ballast water: 1.870 m³

Fresh water: 700 m³

Fuel: 2.415 m³

Crew

19

Accommodation

Person capacity: 68

Manager

AP Moller Maersk
50, Esplanaden
Copenhagen
Denmark

Owner

Maersk Supply Services
Lyngby Hovedgade 85
DK-2800 Lyngby
Denmark

Latest data adjustment

11 December 2016
