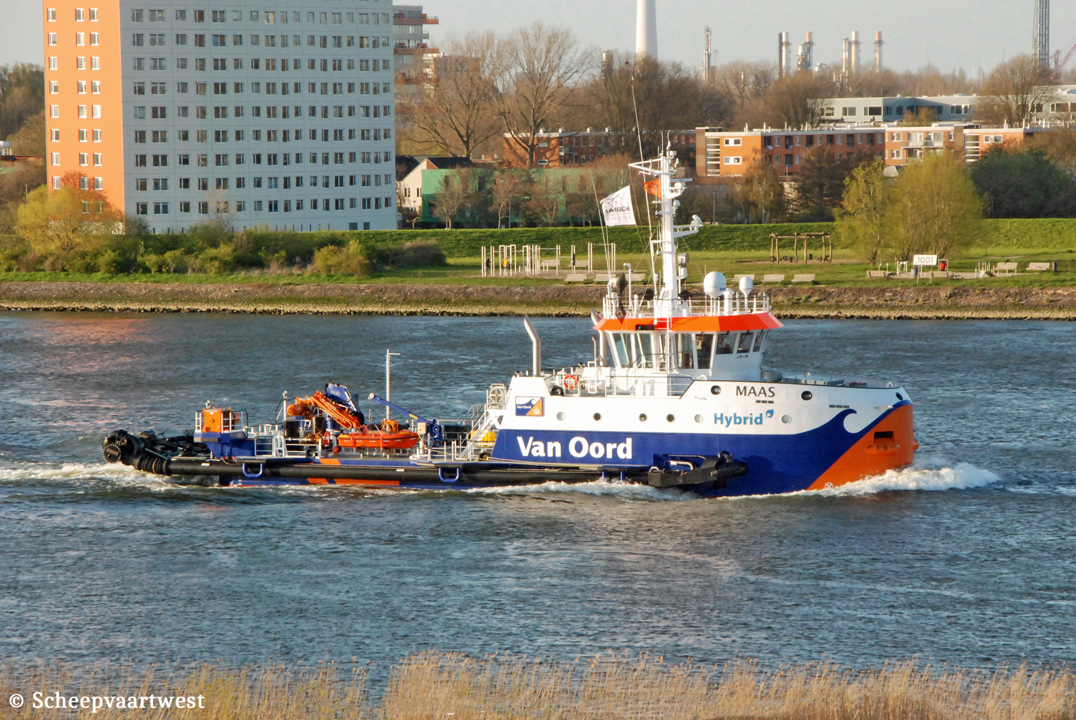

Maas IMO 9904948 01
Spijkenisse, The Netherlands 21 April 2021


Name

MAAS

Type

Hybrid water injection dredger

IMO-number

9904948

Call sign

PDTY

Flag

The Netherlands

Port of registry

Rotterdam

GT

482 t

DWT

204 t

NT

144 t

Length

43,07 m overall

35,79 m between perpendiculars

Breadth

9,70 m

Draught

2,10 m

Freeboard

1.306 mm

Depth

3,40 m

Speed

10,2 knots

Built

2021

Date of completion

23/04/2021

Builder casco

Shipyard Bomex 4M d.o.o.

Zrenjanin

Serbia

Builder completion

Scheepswerf Gebroeders Kooiman B.V.

Zwijndrecht

The Netherlands

Yard number

215

Hull material

Mild steel

Watertight compartments

23

Continuous decks

1

Main engine

2x Caterpillar C32 Acert - 4 stroke 12 cylinder 145 x 162 mm combustion engines total 1.066 kW / 1.448 hp at 1.800 rpm which is coupled to a hybrid energy management system whereby electricity is generated by heat recovery and stored in batteries

Propelling type

Electrical

Propellers

2x Azimuth thruster solid - aft at 1.000 rpm

Generators

1x Diesel generatorset 100 kVA - 80 kW - 117 hp

Total installed power

2.044 kW

Bow thruster

1x Tunnel bow thruster

Dredging depth

Min: 1,80 m

Max: 24,00 m

Tank capacities

Fuel: 102,0 m³

Accommodation

For 6 persons

Owner

Koninklijke Van Oord NV

Schaardijk 211

3063 NH Rotterdam

The Netherlands

Latest data adjustment

12 March 2022
