| Westerschelde 02 December 2019 |
 |
 |
|
| Westerschelde 01/12/19 | Westerschelde 01/12/19 | |
|
Name |

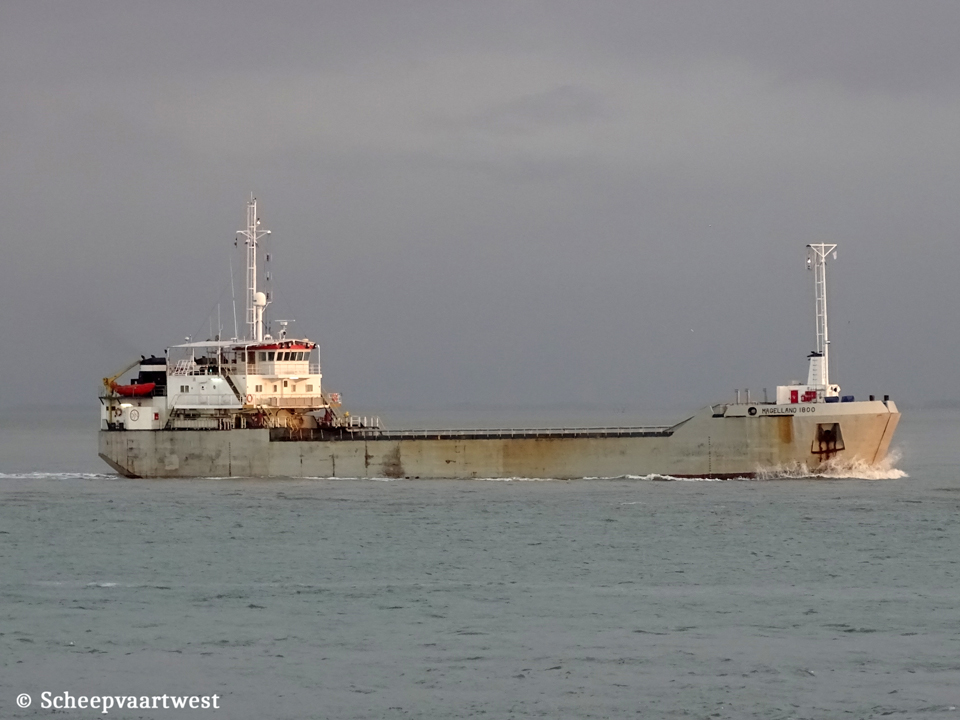

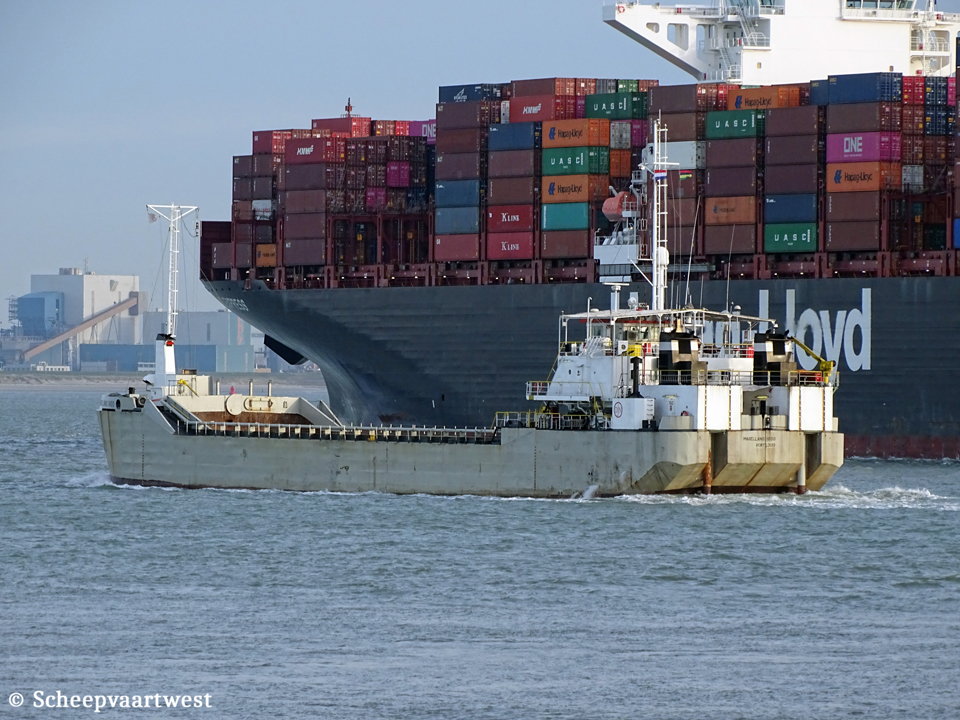

MAGELANO 1800 |
|
Type |
Split hopper barge - Self-propelled |
|
IMO-number |
7931002 |
|
Call sign |
3BLH |
|
Flag |
Mauritius |
|
Port of registry |
Port Louis |
|
Previous flags |
1980 - 2000 Belgium |
|
GT |
1.782 t |
|
DWT |
3.457 t |
|
NT |
561 t |
|
Length |
80,25 m overall 77,60 m between perpendiculars |
|
Breadth |
14,50 m |
|
Draught |
4,50 m loaded Summer: 3,70 m |
|
Freeboard |
1.822 mm |
|
Depth |
5,50 m |
|
Speed |
10,4 knots |
|
Built |
1979 |
|
Keel laid |
11/07/1979 |
|
Launch date |
11/1979 |
|
Date of completion |
17/01/1980 |
|
Builder |
Sing Koon Seng Pte. Ltd. Republic of Singapore |
|
Yard number |
0500 |
|
Hull material |
Steel |
|
Watertight compartment |
7 |
|
Continuous decks |
1 |
|
Main engine |
2x Deutz - 4 stroke 16 cylinder 142 x 160 mm combustion engines each 675 kW hp at 1.630 rpm Build: 1979 |
|
Propelling system |
2x Azimuth thruster |
|
Generators |
2x Main diesel generatorsets each 95 kVA - 76 kW - 255 hp |
|
Bow thruster |
1x 145 kW |
|
Total power |
1.440 kW |
|
Number of holds |
1 |
|
Hopper capacity |
2.000 m³ |
|
Tank capacities |
Fuel: 172 m³ |
|
Accommodation |
For 8 persons |
|
Owner |
Jan De Nul Group Jan De Nul NV Tragel 60 9308 Hofstade-Aalst Belgium |
|
Previous names owners |
1980 - 2000 Magellano 1800 - Ondernemingen Jan de Nul SA 2200 - 2008 Magellano 1800 - Port Louis Maritime Corp. 2008 - 20116 Magellano 1800 - Jan de Nul Dredging Ltd. |
|
Latest data adjustment |
28 July 2023 |
