Westerschelde 13 November 2015 |
 |
 |
|
| Westerschelde 13/11/15 | Westerschelde 13/11/15 | |
|
Name |

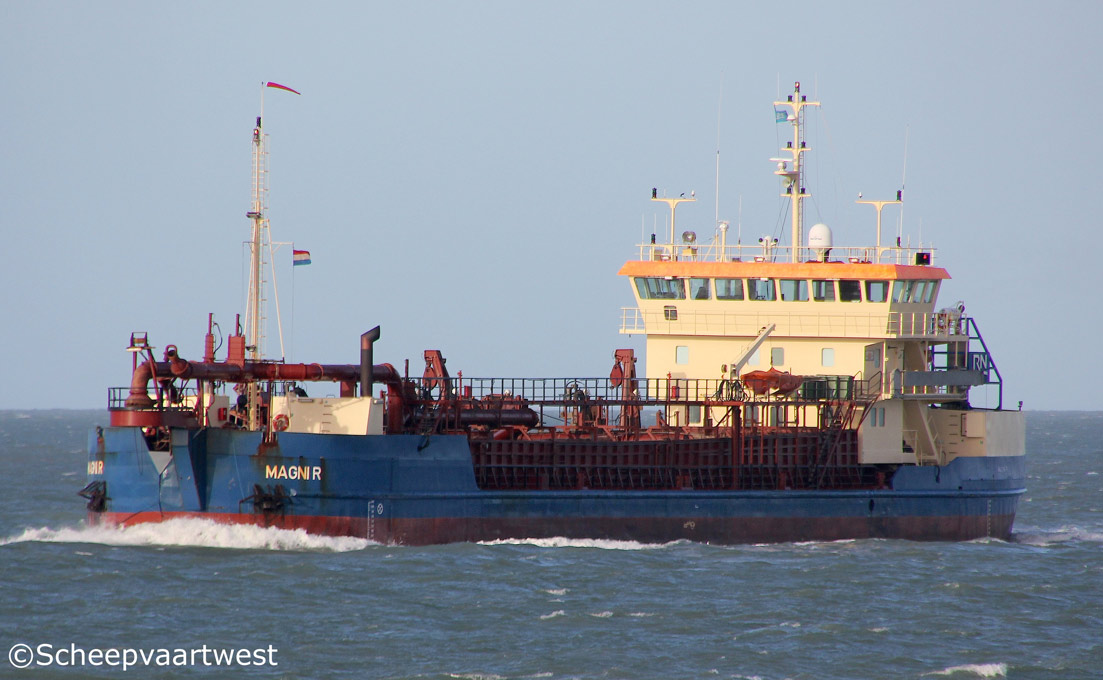

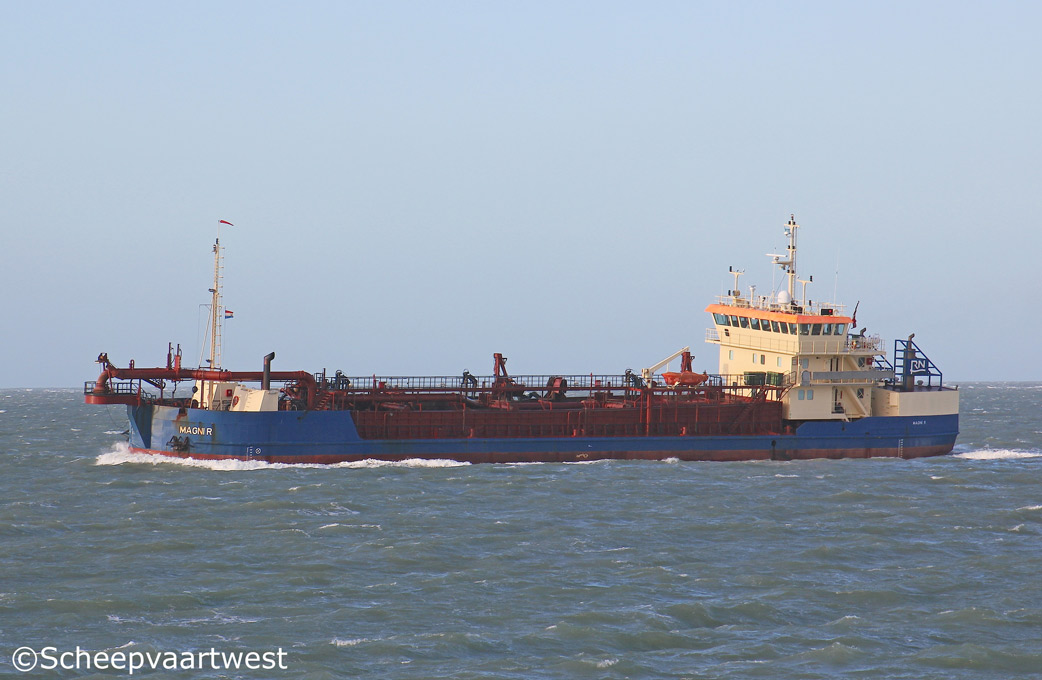

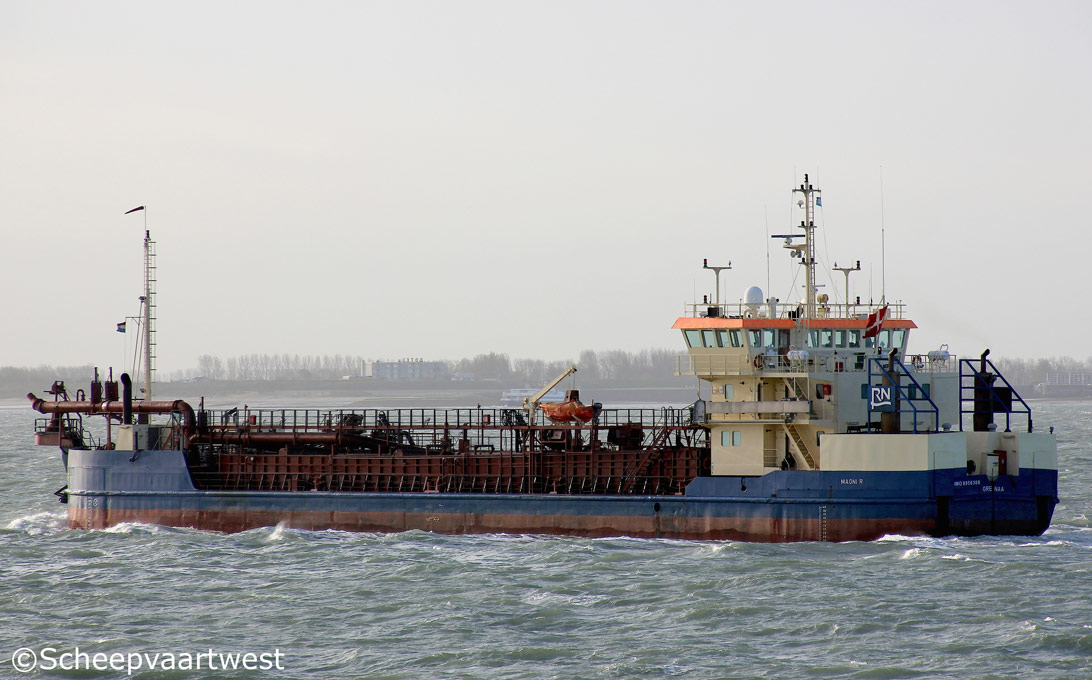

MAGNI R |
|
Previous names |
1996 - 2001 V28 |
|
Type |
Trailing suction hopper dredger |
|
IMO-number |
8956308 |
|
Call sign |
OWZO2 |
|
Flag |
Denmark |
|
Port of registry |
Grenaa |
|
GT |
1.414 t |
|
DWT |
Summer: 1.785 t |
|
NT |
425 t |
|
Length |
75,49 m overall 73,75 m between perpendiculars |
|
Breadth |
12,80 m extreme |
|
Draught |
1,50 m unloaded 3,81 m loaded |
|
Depth |
4,50 m |
|
Speed |
8,0 knots empty 7,5 knots loaded |
|
Built |
1996 2008 Converted into a trailing suction hopper dredger |
|
Keel laid |
06.1992 |
|
Launch date |
12.08.1994 |
|
Date of completion |
29.11.1996 |
|
Builder |
Jiangsu Jiangyang Shipyard Group Co. |
|
Hull material |
Steel |
|
Main engine |
2x Cummins KTA 38-M1 diesel engines each 746 KW |
|
Propellers |
2x Azimuth thruster propulsion |
|
Generators |
2x C18 diesel generatorsets |
|
Bow thruster |
1x 235 kW |
|
Hopper capacity |
1.570 m³ |
|
Total installed power |
5.049 kW |
|
Dredging depth |
38,00 m |
|
Number of dredging pipes |
1 |
|
Manager |
Rohde Nielsen A/S |
|
Registered owner |
RN Shipping A/S |
|
Latest data adjustment |
17 January 2016 |
