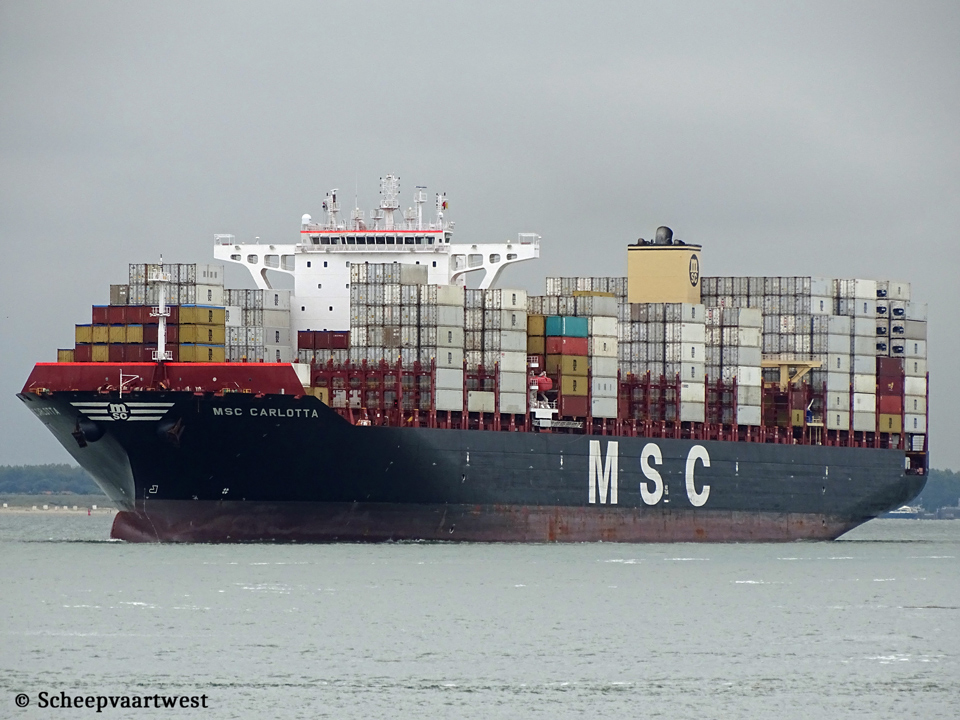

MSC Carlotta IMO 9756731 02

Westerschelde 16 September 2019

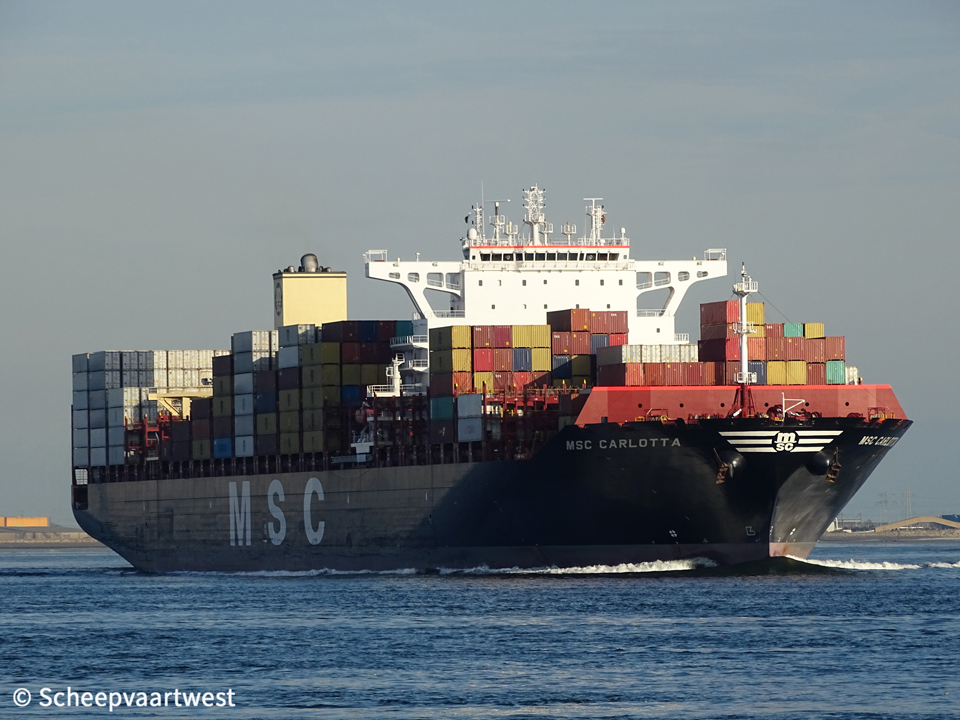

MSC Carlotta IMO 9756731 03   MSC Carlotta 01
Westerschelde 16/06/19 Westerschelde 20/10/18









Name

MSC CARLOTTA

Type

Cellular containership

IMO-number

9756731

Call sign

D5OE8

Flag

Liberia

Port of registry

Monrovia

GT

102.492 t

DWT

120.500 t

NT

54.865 t

Number of 20ft containers

10.776

Reefer capacity

1.800

Length

314,36 m overall

300,85 m between perpendiculars

Breadth

48,40 m extreme

48,20 m moulded

Draught

Max: 14,60 m

Depth

24,80 m

Speed

Max: 23,5 knots

Service: 21,0 knots

Built

2017

Keel laid

10/11/2015

Launch date

28/10/2016

Date of completion

27/11/2017

Builder

Jinhai Intelligent Manufacturing Co., Ltd.

1 Jinhai Avenue Changtu Town Daishan County

Zhoushan, 316291

China

Yard number

J0234

Hull material

Steel

Hull type

Double bottom

Double side

Continuous decks

1

Main engine

1x MAN-B&W 9S90ME-C9&10 - 2 stroke single acting 9 cylinder 900 x 3.260 mm combustion engine

Mcr: 47.600 kW / 64.717 hp at 84,0 rpm

Propellers

1x Fixed pitch propeller - aft at 84,0 rpm

Boilers

1x Auxiliary boiler, exhaust gas heated EA45013

1x Auxiliary boiler, exhaust gas heated economizer

1x Auxiliary boiler, oil/gas fired PA0601R20

Manufacturer: KangRim Heavy Industries Co.,Ltd.

Generators

3x MAN 9L32/40 - 4 stroke 9 cylinder 320 x 400 mm combustion engines each 4.500 kW connected with generators each 4.400 kW

2x MAN 6L32/40 - 4 stroke 6 cylinder 320 x 400 mm combustion engine each 3.000 kW connected with generators each 2.900 kW

Emergency generator

1x MAN D2842LE201 diesel generatorset 368 kW

Bow thruster

1x Tunnel thruster 3.050 kW / 4.147 bhp, forward

Tank capacities

Ballast: 35.254,2 m³

Anchor equipment

Length: 770,00 m

diameter: 114 mm

Cargo gear

Gearless

Manager

MSC Shipmanagement Limited

Sorrento

Italy

Operator

MSC - Mediterranean Shipping Company

Registered owner

Meridian 13 Limited

Hamilton

Bermuda

Latest data adjustment

08 January 2022
