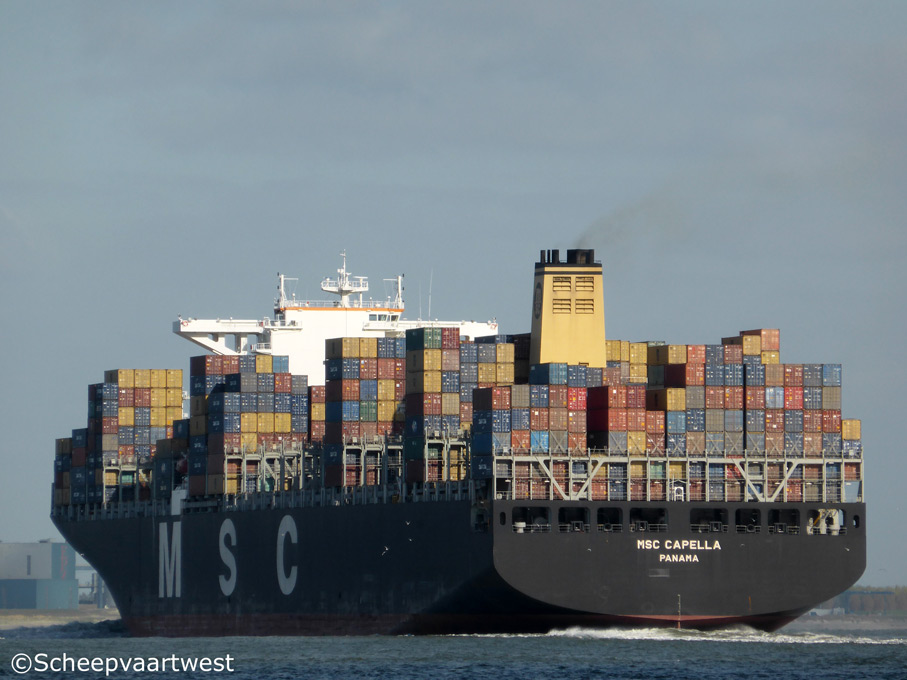

MSC Capella 01

Westerschelde 15 April 2014



Name

MSC CAPELLA

Type

Cellular containership

IMO-number

9465289

Call sign

3EUI7

Flag

Republic of panama

Port of registry

Panama City

GT

141.635 t

DWT

Summer: 141.103 t

NT

63.825 t

Number of 20ft containers

13.092

Container capacity 14t

8.921

Reefer capacity

1.600

Length

366,43 m overall

350,00 m between perpendiculars

Breadth

48,26 m extreme

Draught

15,50 m

Depth

29.85 m

Speed

Max.: 24,7 knots

Built

2012

Keel laid

26.07.2007

Launch date

30.12.2011

Date of completion

05.03.2012

Builder

Hyundai Heavy Industries Co., Ltd.
1, Cheonha-dong, Dong-gu
Ulsan, 682-792 Kyongsang-namdo
Republic of Korea

Yard number

2164

Hull material

Shipbuilding steel (standard)

Hull type

Partly double bottom

Main engine

1x HHI MAN B&W 12K98ME7 - 2 stroke 12 cylinder 980 x 2.660 mm combustion engine - 72.240 kW at 97,0 rpm

Year of Manufacture: 2011

Manufacturer: Hyundai Heavy Industries Co., Ltd.
1, Jeonha-dong, Dong-gu
Ulsan ,682-792 Kyongsang-namdo
Republic of Korea

Propellers

1x Solid propeller (keyless) - aft at 97,0 rpm

Boilers

1x Steam boiler, oil fired - 7,85 bar

Heating surface: 73,4 m²

1x Steam boiler, exhaust gas heated - 9,81 bat

Heating surface: 911,4 m²

Year of manufacture: 2011

Manufacturer: KangRim Heavy Industries Co., Ltd.
40, Wongnam-dong
Changwon ,642-290 Kyongsang-namdo
Republic of Korea

Electric installations

4x Plants each 6.600 V with 4.426,7 kVA

1x Plant 450 V - 370 kVA

2x Plants each 12 V - 3 Ah

2x Plants each 24 V - 200 Ah

12x Plants each 24 V - 200 Ah

12x Plants each 24 V - 200 Ah

Generators

4x HHI HIMSEN 7H32/40 main diesel generatorsets each 3.540 kW / 4.426,7 kVA

Emergency generator

1x Scania DC 123 54A diesel generatorset 370 kVA

Batteries

12x Batteries for UPS navigation each 200 Ah

12x Batteries for UPS radio each 200 Ah

2x Batteries for start emergency engine each 200 Ah

2x Batteries for other purpose each 3 Ah

Compressed air receivers

2x Receivers each 16.000 litres - 32,4 bar

1x Receiver 500 litres - 32,4 bar

1x Receiver 300 litres - 7,7 bar

1x Receiver 2.000 litres - 7,56 bar

Bow thruster

2x Transverse thruster each 1.800 kW, forward

Tank capacities

Ballast: 37.456,7 m³

Anchor equipment

Length: 770,00 m

Diameter: 122 mm

Cargo gear

Gearless

Crew size

28

Manager

MSC Mediterranean Shipping Company S.r.l.

Operator

MSC - Mediterranean Shipping Company

Owner

Promy 6 Limited Corp.

Latest data adjustment

16 May 2016
