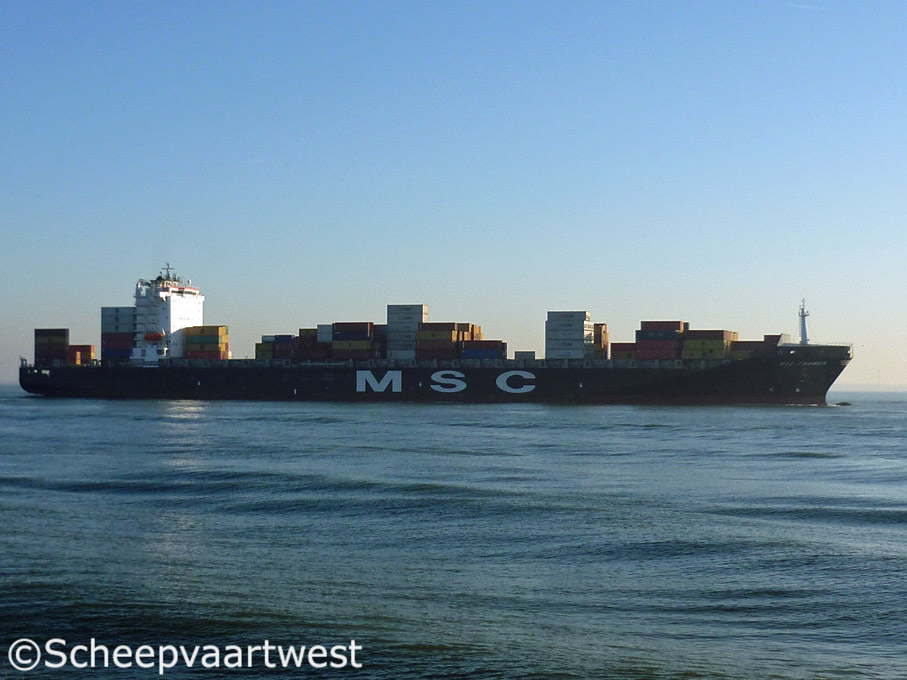

MSC Carmen 01
Westerschelde 10 November 2011



Name

MSC CARMEN

Type

Cellular containership

IMO-number

9349813

Call sign

3EQT

Flag

Republic of Panama

Port of registry

Panama City

GT

50.963 t

DWT

63.359 t

NT

30.224 t

Number of 20ft containers

4.860

Container capacity 14t

3.370

Reefer capacity

560

Length

274,96 m overall

262,82 m registered

Breadth

32,20 m registered

Draught

Max.: 13,50 m

Freeboard

3.858 mm

Depth

18,21 m moulded

Speed

Max.: 24,0 knots

Built

2008

Keel laid

12.03.2007

Launch date

21.10.2007

Date of completion

09.06.2008

Builder

Daewoo Mangalia Heavy Industries S.A.
Str. Portului Nr.1
8727 Mangalia , Jud. Constanta
Romania

Yard number

4064

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Watertight bulkheads

9

Continuous decks

1

Main engine

1x MAN-B&W 7K98MC-C - 2 stroke 7 cylinder 980 x 2.400 mm diesel engine - 39.970 kW / 54.320 bhp at 104,0 rpm

Year of manufacture: 2007

Manufacturer: HSD Engine Co., Ltd.
69 Sinchon-dong
Changwon , Kyungnam 641-370
Republic of Korea

Propellers

1x Solid propeller (keyless) - aft at 104,0 rpm

Boilers

1x Steam boiler, oil fired - 10,0 bar

1x Steam boiler, exhaust gas heated - 10,0 bar

Heating surface: 36,0 m²

Heating surface: 637,0 m²

Year of manufacture: 2007

Manufacturer: Alfa Laval Qingdao Ltd.
86 Guangzhou Road North Jiaozhou
266300 Qingdao , Shandong
People's Republic of China

Electric installations

4x Plant 440 V - 2.437,5 kVA

1x Plant 440 V - 688 kVA

1x Plant 24 V - 200 Ah

1x Plant 24 V - 300 Ah

Diesel generators

4x MAN-B&W 7L27/38 main diesel generatorsets each 1.950 kW/ 2.437,5 kVA

Emergency generator

1x Diesel generatorset 688 kVA

Batteries

1x Battery for automation 300 Ah

1x Battery for UPS radio 200 Ah

Compressed air receivers

2x Receivers each 15.000 litres - 30,0 bar

1x Receiver 300 litres - 30,0 bar

1x Receiver 200 litres - 30,0 bar

1x Receiver 350 litres - 7,0 bar

Bow thruster

1x Transverse thruster 1.500 kW / 2.040 bhp, forward

Largest hatch

12,60 x 28,07 m

Anchor equipment

3x Anchors weight each 12.900 kg

Chain Length: 715,00 m

Cargo gear

None

Crew size

30

Manager

MSC Mediterranean Shipping Company S.r.l.
Via Francesco Ciampa, 29
80063 Piano di Sorrento (NA)
Italy

Operator

MSC - Mediterranean Shipping Company S.A.

40. Avenue Eugène-Pittard
CH-1206 Geneva

Switzerland

Owner

Veana Holdings Inc.
Calle 50, No. 102 Edificio Universal
Panama City
Republic of Panama
