Westerschelde 10 June 2017 |
 |
|
| Westerschelde 08/10/17 | |
|
Name |

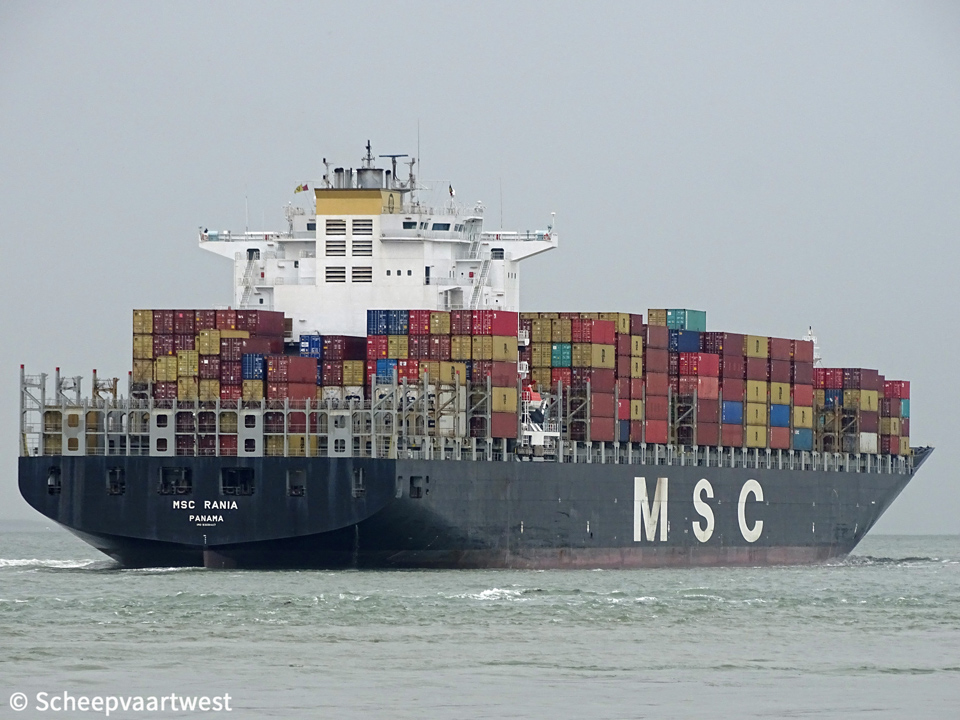

MSC RANIA |
|
Type |
Cellular containership |
|
IMO-number |
9309447 |
|
Call sign |
3EEB3 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
94.489 t |
|
DWT |
Summer: 114.108 t |
|
NT |
59.577 t |
|
Number of 20ft containers |
8.402 |
|
Container capacity 14t |
6.670 |
|
Reefer capacity |
700 |
|
Length |
331,99 m overall 317,20 m between perpendiculars |
|
Breadth |
43,20 m extreme |
|
Draught |
Max: 15,00 m |
|
Keel to mast end |
60,80 m |
|
Freeboard |
5.243 mm |
|
Depth |
15,00 m |
|
Speed |
Max: 25,3 knots Service: 24,8 knots |
|
Built |
2005 |
|
Keel laid |
20/06/2005 |
|
Launch date |
15/09/2005 |
|
Date of completion |
19/12/2005 |
|
Builder |
Daewoo Shipbuilding & Marine Engineering Co., Ltd. Okpo Shipyard South Korea |
|
Yard number |
4107 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Bulkheads |
10 |
|
Continuous decks |
2 |
|
Main engine |
1x Doosan/MAN-B&W 12 K98MC-C - 2 stroke 12 cylinder 980 x 2.400 mm combustion engine 68.640 kW / 93.120 hp |
|
Propellers |
1x Fixed pitch propeller 6 blades - diameter: 8.800 mm |
|
Boilers |
1x Auxiliary boiler, oil/gas fired 1x Auxiliary boiler, exhaust gas heated |
|
Generators |
4x MAN 7L32/40 main diesel generatorsets each 3.000 kW - 6.600 Volt 60 Hz |
|
Emergency generator |
1x Caterpillar 3412 DITA diesel generatorset |
|
Bow thruster |
1x 3.000 kW, forward |
|
Number of holds |
8 |
|
Tank capacities |
Ballast: 39.842,6 m³ m³ Fuel oil: 11.619,5 m³ Diesel oil: 259,1 m³ Fresh water: 467,1 m³ |
|
Anchor equipment |
Length: 742,50 m Diameter: 107 mm |
|
Lifting equipment |
1x Crane - SWL 1,5 t |
|
Cargo gear |
Gearless |
|
Crew size |
24 |
|
Manager |
Mediterranean Shipping Co., Srl. |
|
Operator |
MSC - Mediterranean Shipping Company |
|
Owner |
Panacea International SA Care of MSC Mediterranean Shipping Co., SA chemin Rieu, 12-14 1208 Geneva Switzerland |
|
Latest data adjustment |
15 October 2024 |
