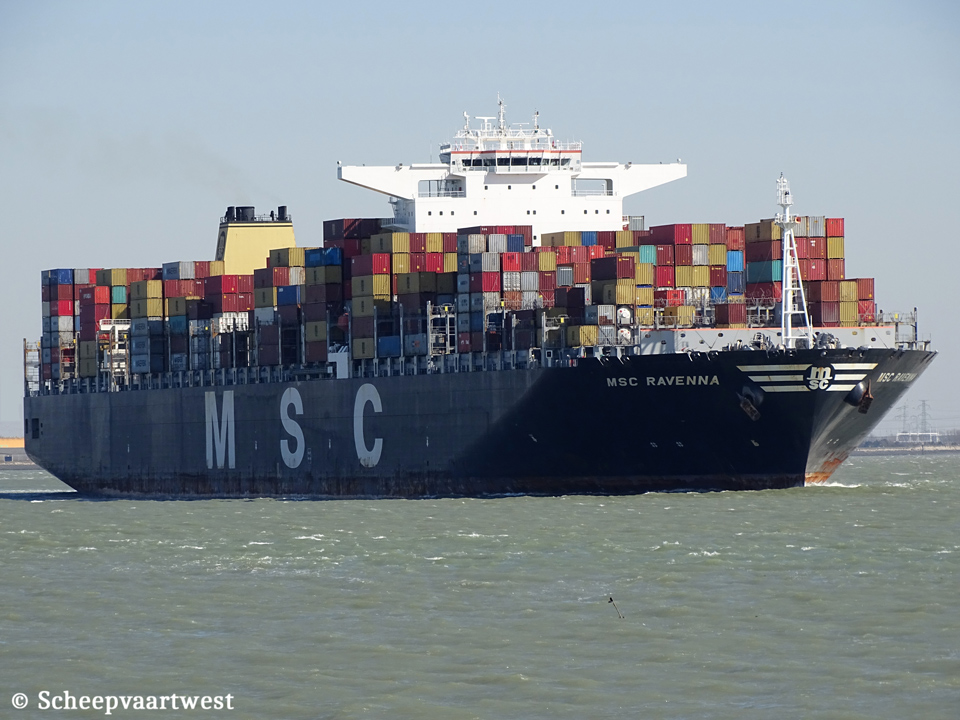

MSC Ravenna IMO 9484431 02

Westerschelde 23 March 2020

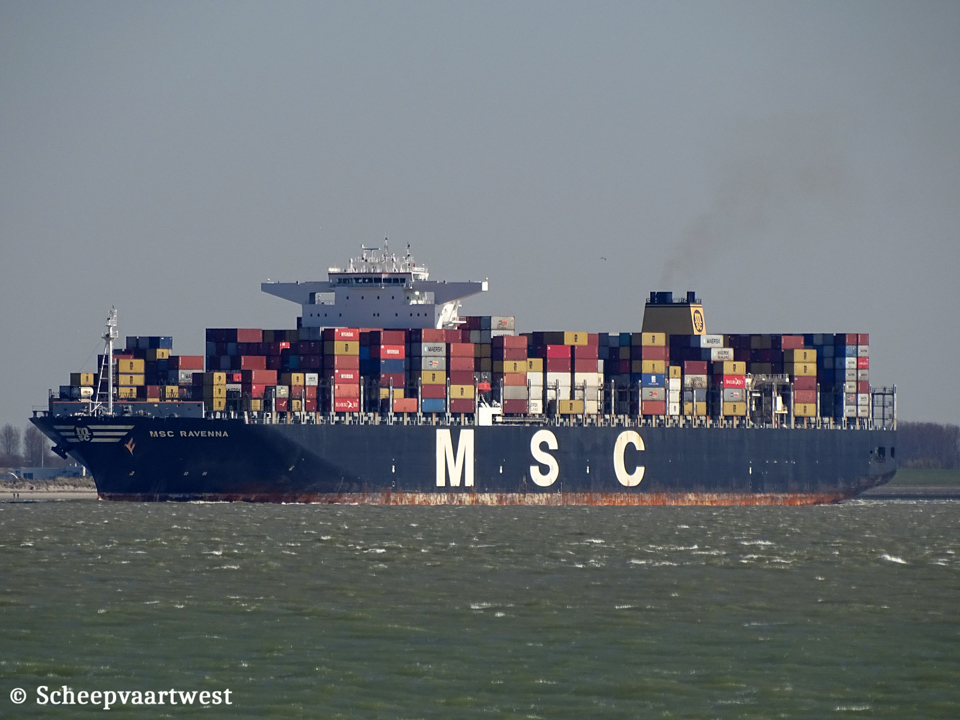

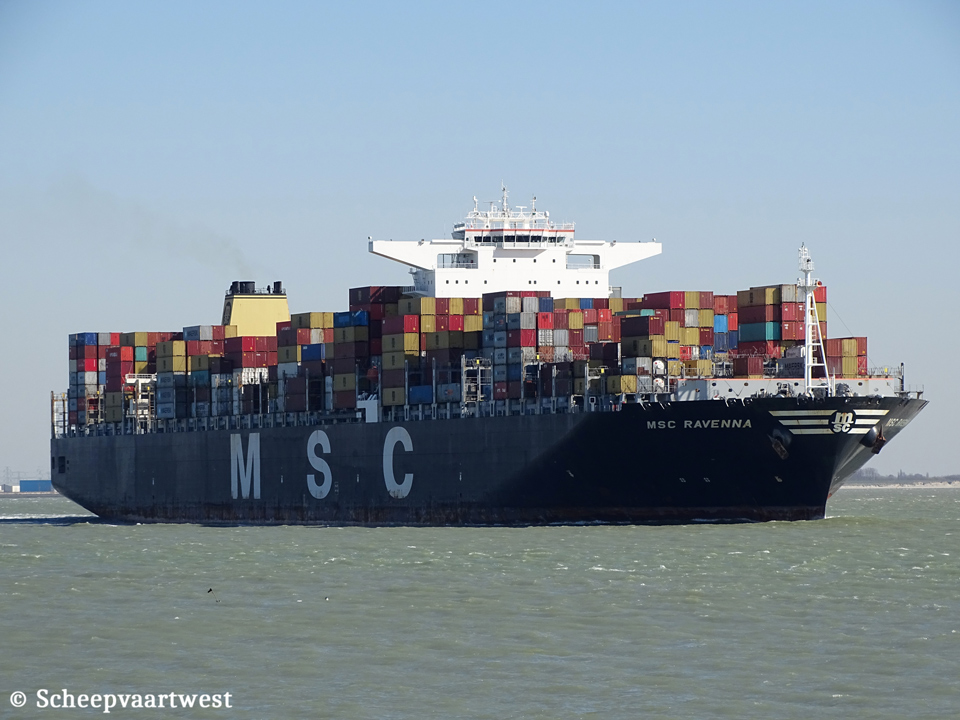

MSC Ravenna IMO 9484431 03   MSC Ravenna IMO 9484431 01
Westerschelde 23/03/20   Westerschelde 23/03/20













Name

MSC RAVENNA

Previous names

2011 Build as: CPO Ancona

06/2011 - 07/2011 MSC Baltic

Type

Cellular containership

IMO-number

9484431

Call sign

A8ZU8

Flag

Liberia

Port of registry

Monrovia

Previous flags

2011 - 2011 Germany

GT

153.115 t

DWT

Summer: 165.963,4 t

NT

89.067 t

Number of 20ft containers

13.988

Container capacity 14t

10.640

Reefer capacity

1.000

Length

365,79 m overall

349,80 m between perpendiculars

Breadth

51,20 m extreme

Draught

Summer: 16,00 m

Depth

29,90 m

Speed

Max: 25,0 knots

Built

2011

Keel laid

28/02/2011

Launch date

15/04/2011

Date of completion

27/07/2011

Builder

Daewoo Shipbuilding & Marine Engineering Co., Ltd.

Okpo Shipyard

South Korea

Yard number

4198

Hull material

Shipbuilding steel (standard)

Higher tensile steel

Hull type

Double bottom, continuous from peak to peak bulkhead

Watertight bulkheads

9

Continuous decks

2

Main engine

1x Doosan/MAN-B&W 12K98MC-C - 2 stroke single acting 12 cylinder 980 x 2.400 mm combustion engine 72/240 kW at 104,0 rpm

Manufacturer: Doosan Engine Co., Ltd., South Korea

Propellers

1x Fixed pitch keyless propeller - aft at 104,0 rpm

Boilers

1x Auxiliary boiler, oil/gas fired Mission TM OS - 10,0 bar

Heating surface: 46,2 m²

1x Auxiliary boiler, exhaust gas heated Mission XS2V - 10,0 bar

Heating surface: 679 m²

Electric installations

4x Plant 6.600 V - 5.120 kVA

1x Plant 450 V - 625 kVA

1x Plant 24 V - 15 Ah

1x Plant 24 V - 63 Ah

1x Plant 24 V - 92 Ah

1x Plant 24 V - 300 Ah

1x Plant 24 V - 300 Ah

2x Plants each 108 V - 40 Ah

Generators

4x MAN-B&W 8L32/40 main diesel generatorsets each 4.069 kW / 5.120 kVA - 6.600 Volt

Emergency generator

1X Cummins QSK19-DM diesel generatorset 625 kVA

Batteries

1x Battery for UPS navigation 300 Ah

1x Battery for UPS radio 300 Ah

1x Battery for automation 92 Ah

1x Battery for diesel control 63 Ah

2x Batteries for automation, each 40 Ah

1x Battery for diesel control 15 Ah

Compressed air receivers

2x Receivers 16,500 litres - 30,0 bar each

1x Receiver 540 litres - 30,0 bar

1x Receiver 200 litres - 30,0 bar

1x Receiver 2000 litres - 7,0 bar

1x Receiver 350 litres - 7,0 bar

Bow thruster

2x Hyundai HSC-24K each 1.800 kW

Tank capacities

Ballast: 47.621,4 m³

Anchor equipment

3x Anchors weight each 26.000 kg

Length: 770,00 m

Diameter: 127 mm

Cargo gear

Gearless

Crew

29

Manager

CPO - Claus-Peter Offen Containerschiffreederei (GmbH & Co.) KG

Bleichenbruecke 10

20354 Hamburg

Germany

Operator

MSC - Mediterranean Shipping Company

Registered owner

Kommanditgesellschaft MS "CPO ANCONA" Offen Reederei GmbH & Co.

Latest data adjustment

11 April 2021
