Nordisabella IMO 9697014 05

Westerschelde 25 April 2017

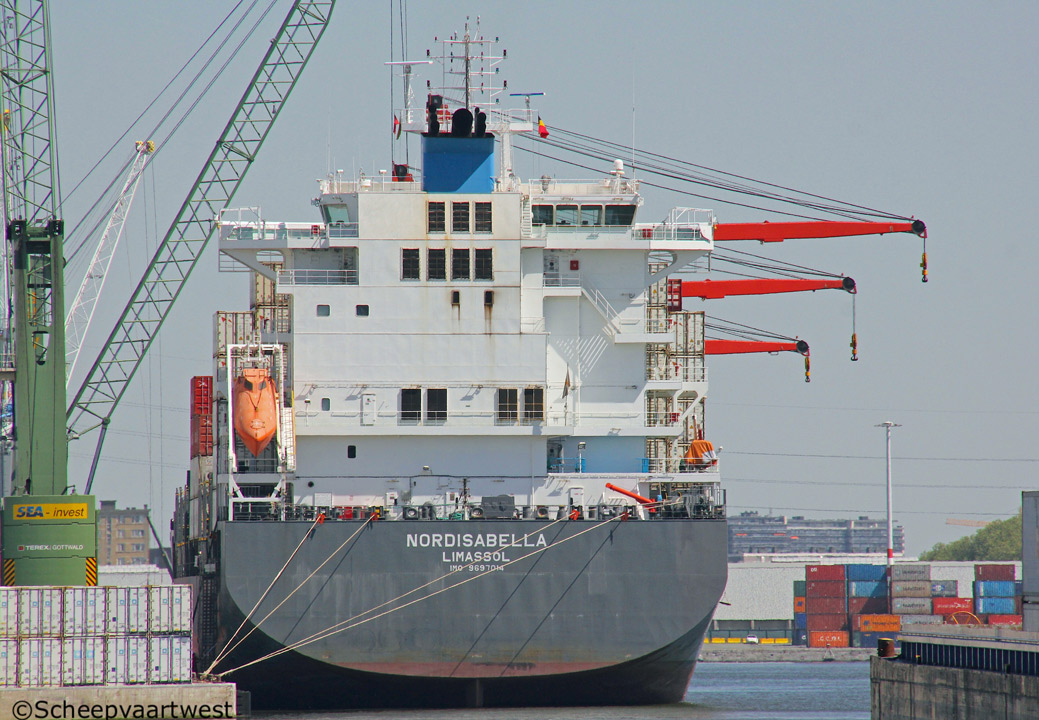

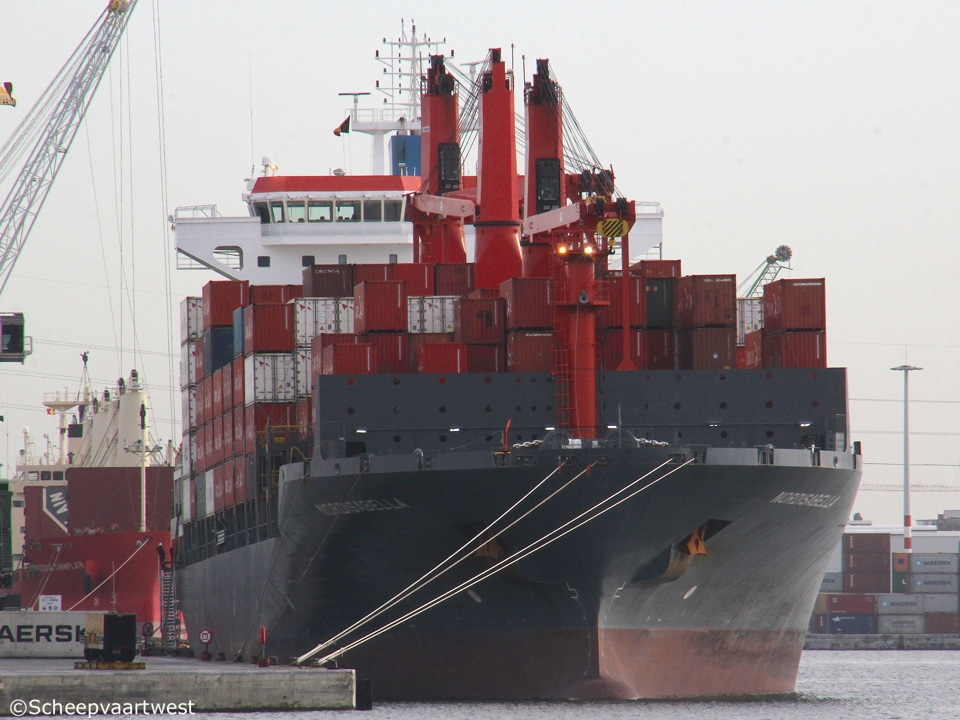

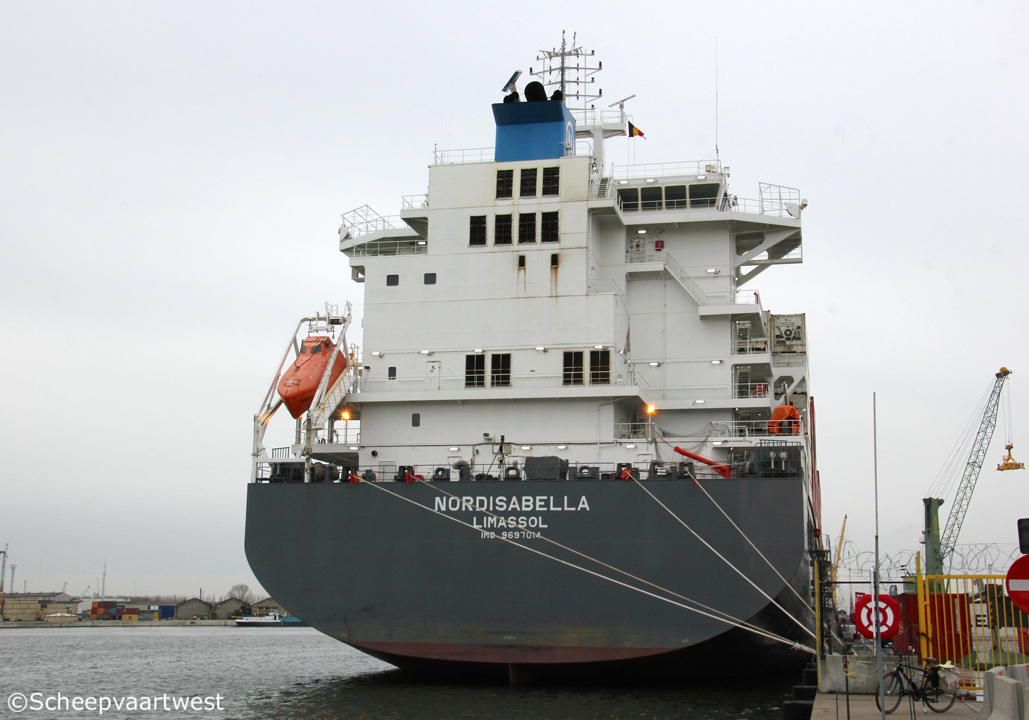

Nordisabella 01   Nordisabella 02   Nordisabella 03
Antwerpen 02/01/18   Antwerpen 02/01/18 Antwerpen 07/05/18


Name

NORDISABELLA

Type

Cellular containership

IMO-number

9697014

Call sign

5BLD4

Flag

Cyprus

Port of registry

Limassol

GT

28.316 t

Suez: 29.942,65 t

DWT

35.586,5 t

NT

12.334 t

Panama: 23.550 t

Suez: 25.876,43 t

Number of 20ft containers

2.506

Container capacity 14t

1.984

Reefer capacity

In hold: 289

On deck: 241

Total: 530

Length

194,87 m overall

184,93 m between perpendiculars

Breadth

32,25 m extreme

32,19 m moulded

Draught

11,50 m

Freeboard

5.530 mm

Depth

16,50 m

Speed

Max.: 18,0 knots

Built

2016

Keel laid

08/06/2015

Launch date

29/08/2015

Date of completion

19/01/2016

Builder

Guangzhou Wenchong Shipyard Co.,Ltd.

No. 1 Wenchuan Road Hongshan Street

Huangpu, Guangzhou, 510725

China

Yard number

GWS449

Hull material

Steel

Main engine

1x MAN-B&W 6G60ME-C 9.2 - 4 stroke 6 cylinder 600 x 2.790 mm combustion engine 12.832 kW at 97,0 rpm

Manufacturer: Hudong Heavy Machinery Co., Ltd.

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary boiler, composite

Generators

2x MAN-B&W 5L27/38 main diesel generatorsets each 1.350 kW

2x MAN-B&W 7L27/38 main diesel generatorsets each 1.995 kW

Emergency generator

1x MAN D2866LXE20 diesel generatorset

Tank capacities

Ballast: 12.256,11 m³

Diesel oil: 219,08 m³

Fuel oil: 4.696,44 m³

Fresh water: 167,41 m³

Lub oil: 277,40 m³

Anchor equipment

Length: 660,00 m

Diameter: 78 mm

Cargo gear

3x Deck cranes - SWL 45,0 t each

Manager

Reederei Nord GmbH

Astraturm

Zirkusweg 2

20359 Hamburg

Germany

Registered owner

Nord Isabella GmbH & Co. KG

Renamed

11/2019 Maersk Bermuda

Republic of Singapore, Singapore City - Call sign: 9V6595

Registered owner: Xiang L42 HK International Ship Lease Co. Limited

Latest data adjustment

13 January 2021
