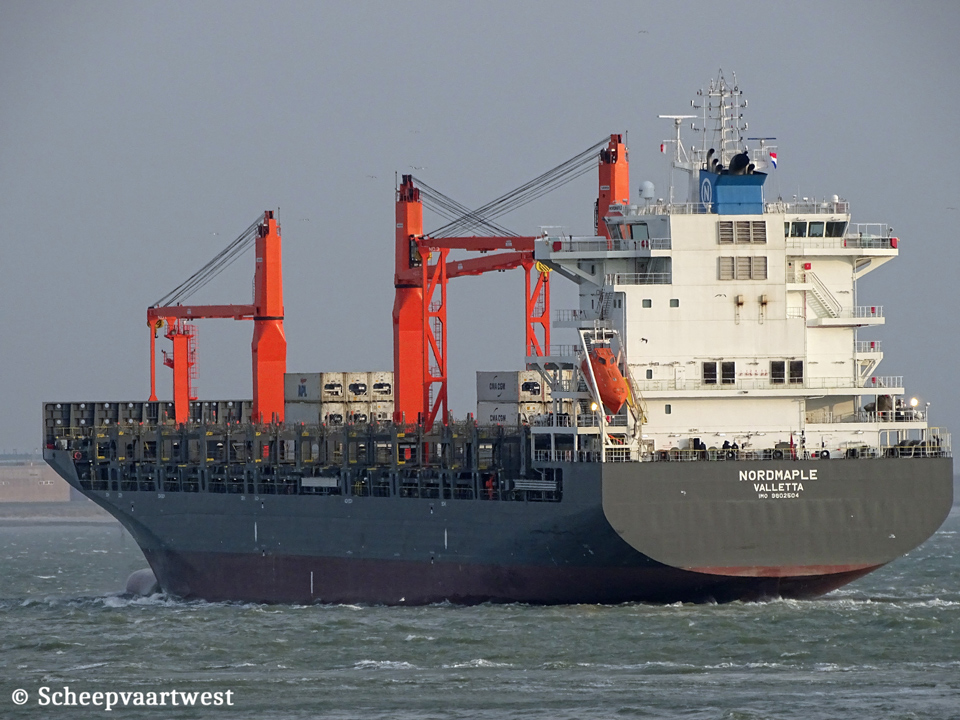

| Westerschelde 15 December 2018 |
|
Name |
NORDMAPLE |
|
Type |
Cellular containership - Feedermax |
|
IMO-number |
9802504 |
|
Call sign |
9HA4781 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
Previous flags |
Germany |
|
GT |
28.433 t |
|
DWT |
35.036 t |
|
NT |
12.631 t |
|
Number of 20ft containers |
On deck (8/7 tiers): 1.550 In hold: 956 Total: 2.506 |
|
Container capacity 14t |
1.989 |
|
Reefer plugs |
On deck: 460 In hold: 290 Total: 750 |
|
Length |
195,00 m overall 186,26 m between perpendiculars |
|
Breadth |
32,00 m moulded |
|
Draught |
Max: 11,50 m |
|
Depth |
17,00 m to main deck |
|
Speed |
Service: 19,0 knots Max: 20,8 knots |
|
Built |
2018 |
|
Keel laid |
18/12/2015 |
|
Date of completion |
11/07/2018 |
|
Delivery date |
04/2018 |
|
Builder |
AVIC Weihai Shipyard Co., Ltd. Weihai China |
|
Yard number |
W0221 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 6G60ME-C9.5-TII - 2 stroke single acting 6 cylinder 600 x 2.790 mm combustion engine Mcr 13.400 kW / 18.219 hp at 97,0 rpm Manufacturer: Hudong Heavy Machinery Co., Ltd. - China |
|
Propellers |
1x Fixed pitch propeller right handed - aft at 97,0 rpm 5 Blades - Diameter: 6.800 mm |
|
Boilers |
1x Auxiliary boiler |
|
Generators |
2x Hyundai Himsen 6H25/33 - 4 stroke 6 cylinder 250 x 330 mm diesel engines each Mcr 1.560 kW connected with generators each 1.440 ekW - 405 Volt 60 Hz 2x Hyundai Himsen 9H25/33 - 4 stroke 9 cylinder 250 x 330 mm diesel engines each Mcr 2.340 kW connected with generators each 1.774 ekW - 405 Volt 60 Hz |
|
Emergency generator |
1x Scania diesel generatorset 125 ekW |
|
Bow thruster |
1x Fixed pitch thruster 1.100 kW / 1.496 bhp, forward |
|
Hatch type |
Steel pontoon type |
|
Tank capacities |
Heavy fuel oil: 2.400 m³ Marine diesel oil: 325 m³ Lub oil; 204 m³ Fresh water: 250 m³ Ballast: 11.957 m³ |
|
Cargo gear |
3x Electro-hydraulic wire luffing type cranes - SWL 45,0 t at 28,00 m each |
|
Crew size |
20 |
|
Operator |
Reederei "Nord" Klaus E. Oldendorff |
|
Registered owner |
Nordmaple GmbH & Co Kg Germany |
|
Renamed |
06/2021 Marius Malta, Valletta - Call sign: 9HA4781 Owner: Reederei Nord GmbH, Hamburg - Germany Manager: Caroline 90 SAS, France - Care of Compagnie Maritime Marfret SA, Marseille - France |
|
Latest data adjustment |
05 February 2022 |
