| Westerschelde 06 October 2012 |
 |
| Westerschelde 01/08/14 |
|
Name |

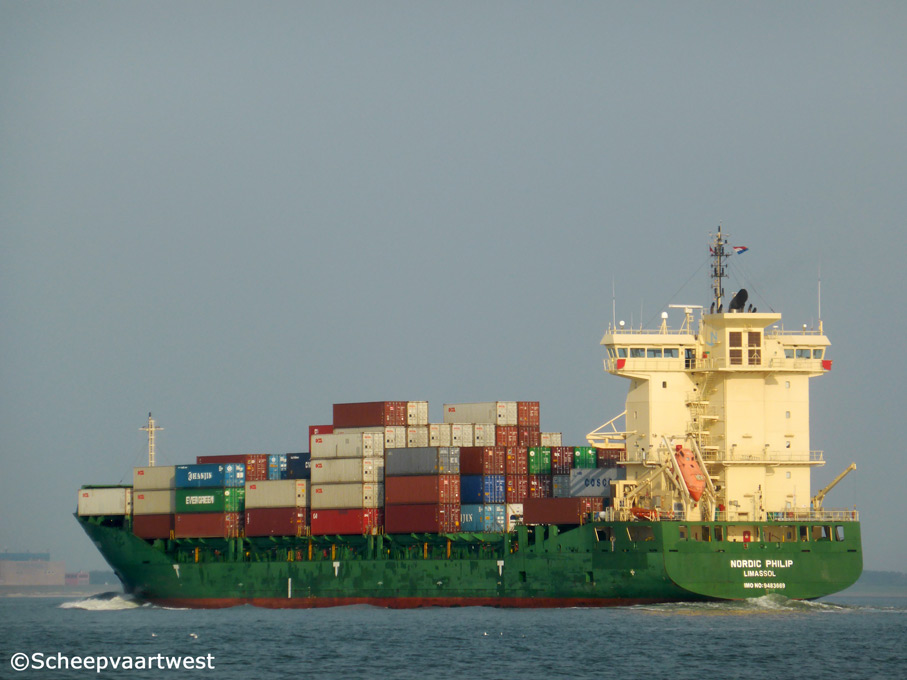

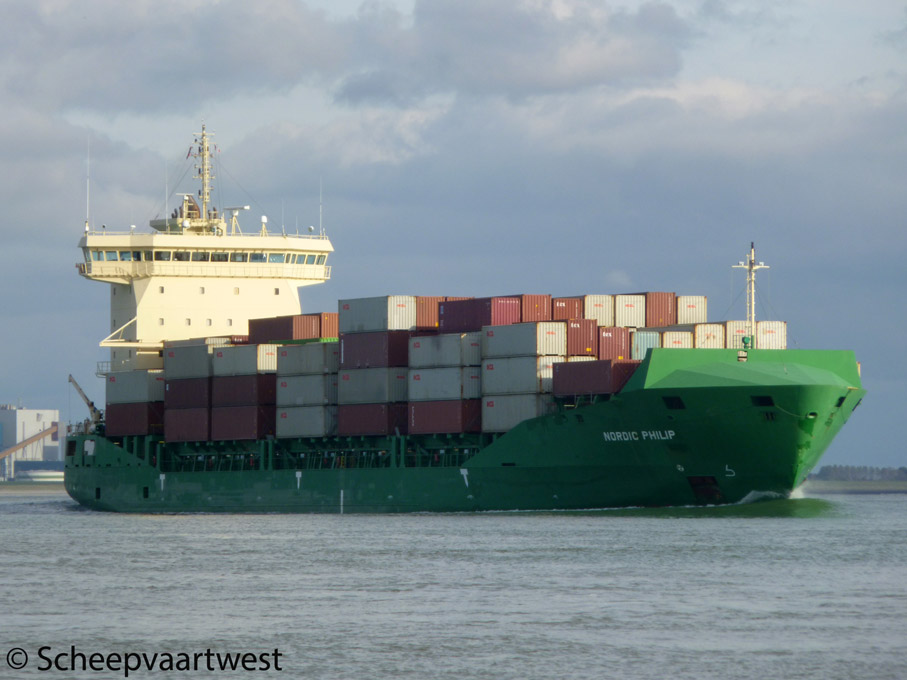

NORDIC PHILIP |
|
Previous names |
2010 - 04.2011 AS Franconia |
|
Type |
Feeder containership |
|
IMO-number |
9483669 |
|
Call sign |
5BZH2 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
GT |
10.318 t |
|
DWT |
13.031 t |
|
NT |
5.391 t |
|
Number of 20ft containers |
On deck: 714 Under deck: 322 Total: 1.036 |
|
Container capacity 14t |
740 |
|
Reefer capacity |
250 |
|
Length |
151,72 m overall 142,42 m between perpendiculars |
|
Breadth |
23,40 m |
|
Draught |
8,00 m |
|
Freeboard |
1.510 mm |
|
Depth |
9,50 m |
|
Speed |
18,5 knots |
|
Built |
2010 |
|
Keel laid |
15/01/2009 |
|
Delivery date |
01/12/2010 |
|
Builder |
Sainty Shipbuilding (Yangzhou) Co.,Ltd. Yangzhou China |
|
Yard number |
07STIG051 |
|
Hull material |
Steel |
|
Watertight compartments |
7 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 8L48/60 - 4 stroke 8 cylinder 480 x 600 mm combustion engine 9.000 kW / 12.228 hp at 500 rpm |
|
Propellers |
1x Screw propeller controllable pitch at 122 rpm |
|
Boilers |
1x Auxiliary boiler, composite 136,00 m² - 9,0 bar Manufacturer: Alfa Laval Aalborg A/S |
|
Shaft generator |
1x 2.125 kVA - 1.700 kW |
|
Generators |
3x Diesel generatorsets each 737 kVA - 590 kW - 842 hp |
|
Emergency generator |
1x MAN D2876 diesel generatorset 394 kVA - 315 kW - 523 hp |
|
Number of holds |
2 |
|
Hold capacity |
17.767,50 m³ |
|
Tank capacities |
Fuel: 1.177,2 m³ Ballast: 5.541,1 m³ |
|
Anchor equipment |
Length: 577,50 m Diameter: 60 mm |
|
Manager |
Nordic Hamburg shipmanagement Gmbh & Co KG Cremon 32 20457, Hamburg Germany |
|
Owner |
MS 'DORADO J' Schifffahrtsgesellschaft mbH & Co. KG, Hamburg Federal Republic of Germany |
|
Registered owner |
Philip Trading Opco LLC Hamburg Germany |
|
Renamed |
10/2018 X-Press Elbe Cyprus, Limassol - Call sign: 5BZH2 Reg. Owner: Merapana Holdings Ltd. Manager: X-Press Container Line (UK) Ltd. |
|
Latest data adjustment |
06 June 2021 |
