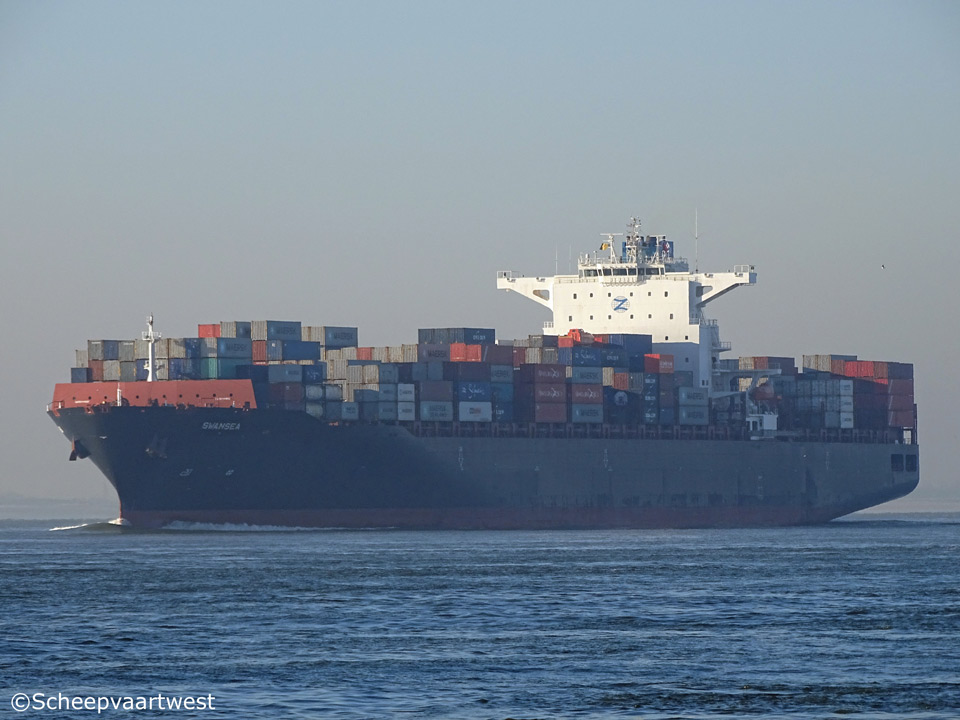

Swansea 01

Westerschelde 19 January 2017

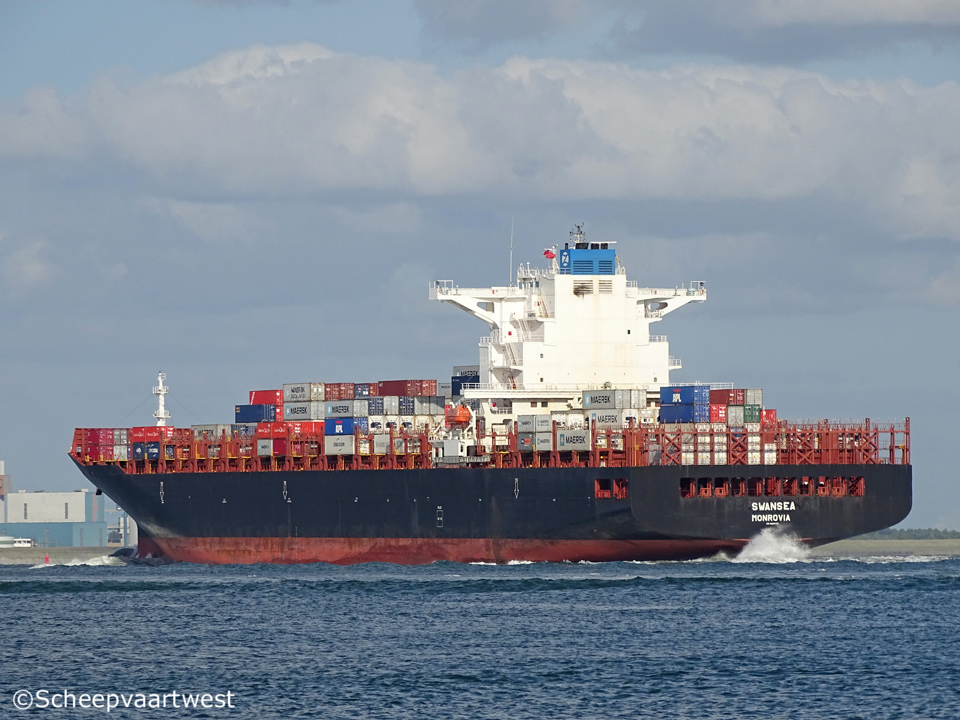

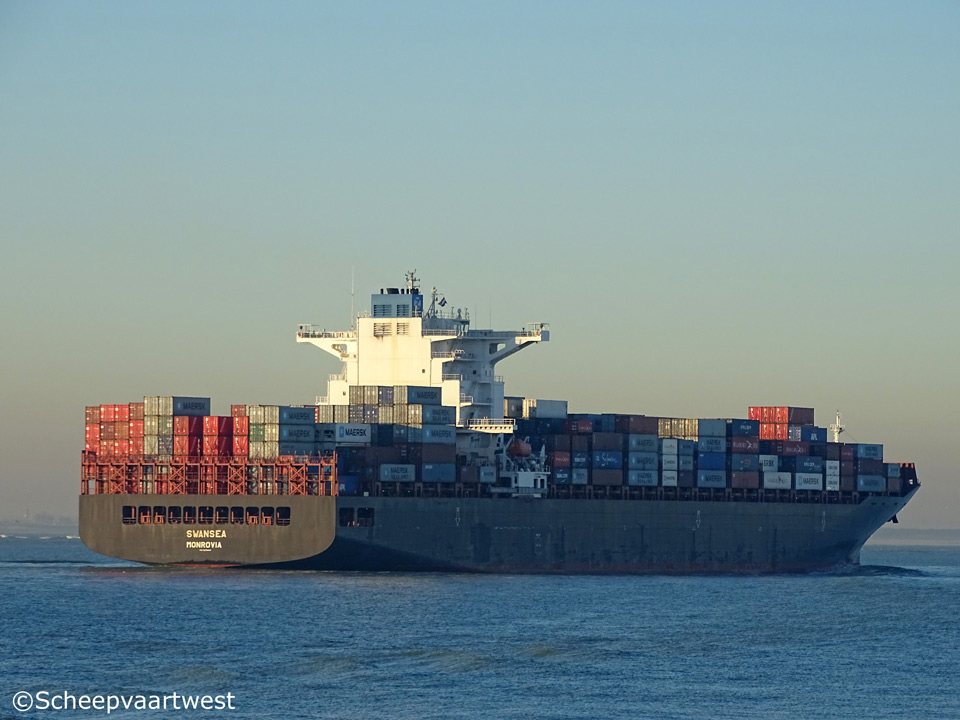

Swansea 02   Swansea 03
20/01/17   12/07/17



Name

SWANSEA

Previous names

2014 Built as: Swansea

2014 - 02.2015 CCNI Austral

Type

Cellular containership

IMO-number

9629469

Call sign

D5FD2

Flag

Liberia

Port of registry

Monrovia

GT

69.809 t registered

Suez: 73.086 t

DWT

Summer: 80.529 t

Winter: 77.621 t

Tropical: 83.470 t

NT

39.534 t registered

Suez: 63.223 t

Displacement

103.166 t

Light ship

22.637 t

Number of 20ft containers

In hold: 2.777

On deck: 3.845

6.622

Number of 40ft containers

In hold: 1.327

On deck: 1.909

Total: 3.236

Length

270,90 m overall

Breadth

42,80 m

Draught

Summer: 14,57 m

Winter: 14,26 m

Tropical: 14,87 m

Moulded L x B x D

258,40 x 42,80 x 20,24 m

Registered L x B x D

259,15 x 42,80 x 20,24 m

Freeboard

5.710 mm

Depth

20,24 m moulded

Speed

Max.: 22,9 knots

Service: 20,0 knots

Built

2014

Keel laid

01.02.2013

Launch date

04.06.2013

Date of completion

10.01.2014

Builder

Hanjin Heavy Industries & Construction Co., Ltd., Subic Bay

Yard number

PN-085

Hull material

Steel

Main engine

1x MAN-B&W 6S80ME-C - 2 stroke single acting 6 cylinder 800 x 3.450 mm combustion engine 27.060 kW at 78,0 rpm

Manufacturer: STX Engine Co., Ltd.

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 800 mm

Propellers

1

Boilers

1x Auxiliary vertical boiler - 8,8 bar

Evaporation: 5,50 t/h

Manufacturer: Kangrim Heavy Industries Co., Ltd.

Generators

5x Generators - 10.750 kVA

Number of holds

7

Number of hatches

7

Hatch 1: 12,95 x 12,60 m

Hatch 2: 33,14 x 12,60 m

Hatch 3-6: 38,40 x 12,60 m

Hatch 7: 10,19 x 12,60 m

Tank capacities

Fuel oil: 5.810 m³

Fresh water: 382 m³

Water ballast: 21.528 m³

Manager

Zodiac Maritime Limited Ship Management Company
5th Floor, Portman House

2 Portman Street
London, W1H 6DU
United Kingdom

Registered owner

Droshin Shipping Inc.

Latest data adjustment

23 May 2017
