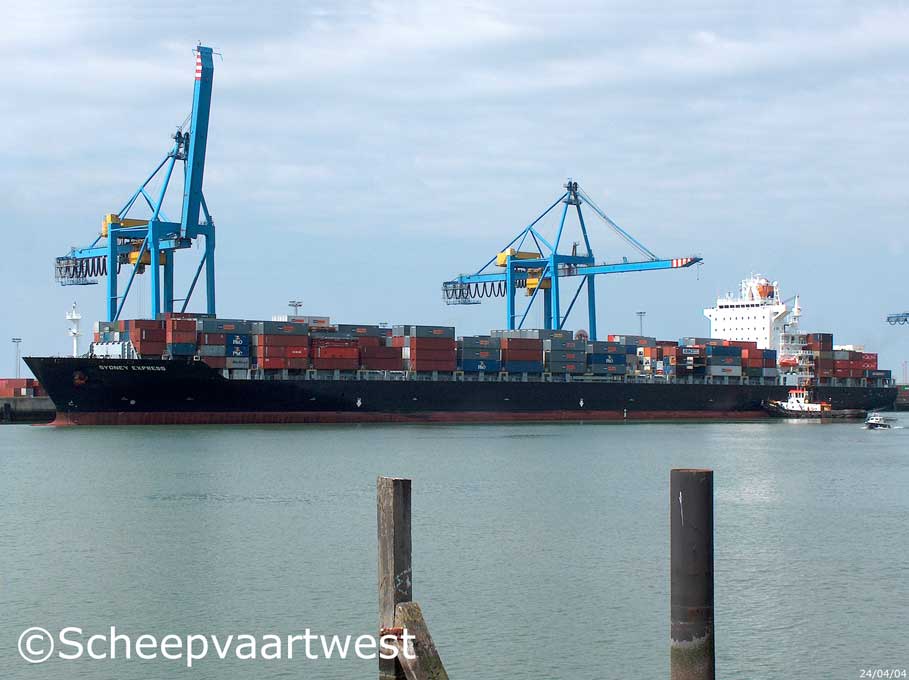

Sydney Express - IMO 9227326

Name

SYDNEY EXPRESS

Previous names

Launch as: Santa Roberta
2002 - 2003 P&O Nedlloyd Pegasus
2003 - 2006 Sydney Express

Type

Cellular Containership

IMO-number

9227326

Call sign

ELZZ6

Flag

Liberia

Port of registry

Monrovia

GT

45.803 t

DWT

53.462 t

NRT

25.077 t

Number of 20ft containers

4.112

Number of 40ft containers

718

Container capacity at 14t

2.840

Reefer capacity

1.300

Length

281,03 m overall
268,00 m between perpendiculars
268,86 m registered

Beam

32,20 m registered

Draught

Summer: 12,50 m

Poop

15,40 m

Freeboard

3.053 mm

Depth

17,38 m

Speed

25,1 knots

Built

2002

Keel laid

05.02.2002

Launch date

12.05.2002

Date of completion

08.2002

Builder

Samsung Heavy Industries Co., Ltd. Geoje Shipyard
530, Jangpyeong-ri, Sinhyeon-eup
Geoje , Gyeongsangnam-do 656-710
Republic of Korea

Yard number

1360

Hull material

Shipbuilding steel (higher tensile)

Hull type

Single hull
Double bottom

Watertight bulkheads

9

Continuous decks

2

Main engine

1x Sulzer 9 RTA 96 C-B - 2 stroke single acting 9 cylinder 960 x 2.550 mm diesel engine - 52.480 kW at 102 rpm
Year of manufacture: 2001
Manufacturer: HSD Engine Co., Ltd.
69 Sinchon-dong
Changwon , Kyungnam 641-370
Republic of Korea

Number of screws

1x Solid propeller (keyless) - aft

Boilers

1x Steam boiler, oil fired - 9,0 bar
Heating surface: 40,2 m²
1x Steam boiler, exhaust gas heated - 9,0 bar
Heating surface: 591,0 m²
Year of manufacture: 2002
Manufacturer: Aalborg Industries A/S Division Heaters
Gasvaerksvej 24
9100 Aalborg
Kingdom of Denmark

Electric installations

1x Plant 6.600/440 V - 21.198 kVA
1x Plant 440 V - 250 kVA
1x Plant 24 V - 200 Ah
1x Plant 24 V - 600 Ah

Generators

4x Main diesel generatorsets each 4.371 kVA / 3.500 kW
1x Generators - 3.714 kVA / 2.971 kW

Emergency generator

1x Diesel generatorset 250 kVA

Compressed air receivers

2x Receivers each 12.900 litres - 33,0 bar
1x Receiver 300 litres - 33,0 bar
1x Receiver 150 litres - 7,7 bar

Bow thruster

1x Transverse thruster NAKASHIMA - 1.600 kW, forward

Tank capacity

Fuel oil: 8519 m³

Ballast water: 14.286 m³

Anchor equipment

3x Anchors weight each 12.300 kg

Chain length: 687,50 m

Crew size

30

Manager

Reederei Claus-Peter Offen GmbH & Co. KG
Bleichenbrücke 10
20354 Hamburg
Federal Republic of Germany

Owner

Kommanditgesellschaft MS "SANTA ROBERTA" Offen Reederei GmbH & Co.
Bleichenbrücke 10
20354 Hamburg
Federal Republic of Germany

Renamed

2006 Maersk Dominica
