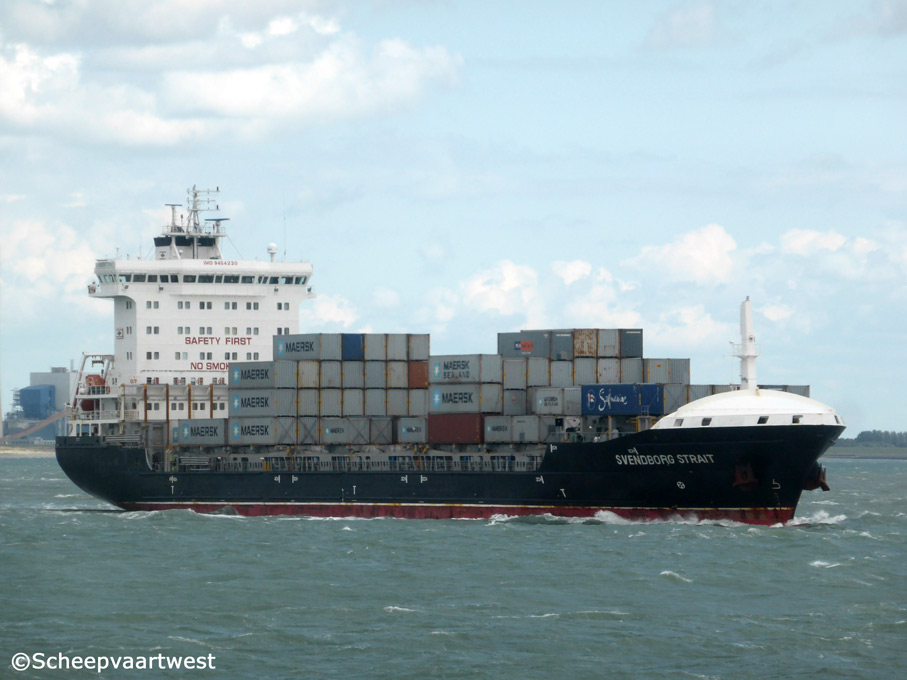

Svendborg Strait 01

Westerschelde 29 July 2015

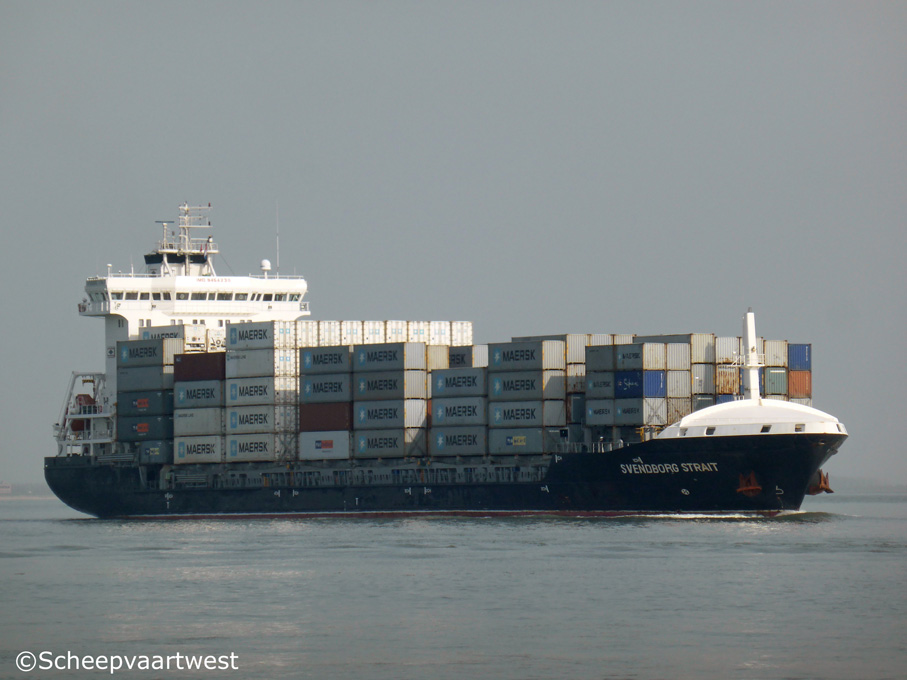

Svendborg Strait 02
10/04/15



Name

SVENDBORG STRAIT

Type

Cellular container vessel

IMO-number

9454230

Call sign

CQHS

Flag

Portugal

Port of registry

Madeira

Previous flags

2011 - 2014 Antigua and Barbuda, St. John's

GT

12.514 t

DWT

Summer: 14.220,3 t

NT

5.387 t

Number of 20ft containers

1.084

Number of 40ft containers

535 + 14 TEU

Container capacity 14t

733

Reefer capacity

On deck: 166

In holds: 84

Total: 250

Length

157,93 m overall

148,15 m between perpendiculars

Breadth

23,79 m extreme

23,50 m moulded

Draught

8,60 m

Depth

11,90 m

Speed

18,3 knots

Built

2011

Keel laid

18.09.2008

Launch date

13.10.2010

Date of completion

22.08.2011

Builder

Wujiazui Shipbuilding Co., Ltd.
Nanjing
China

Yard number

WJZ031

Hull material

Steel

Main engine

1x Sulzer/Hitachi 6RT-flex50B - 6 cylinder diesel engine - 9.960 kW / 13.215 hp at 124,0 rpm

Builder: Winterthur Gas & Diesel Ltd.

Propellers

1x Controllable pitch propeller

Boilers

1x Auxiliary boiler, composite Mission OC

Generators

3x Daihatsu 6DK-20 diesel generatorsets each 1.000 kW

Builder: Daihatsu Diesel Mfg. Co., Ltd. Moriyama Factory

Emergency generator

1x D0824LE201 diesel generatorset

Bow thruster

1x 700 kW

Number of holds

7

Number of hatches

7

No. 1: 13,30 x 12,80 m

No. 2: A+B 26,60 x 20,468 m

No. 3: A+B 28,00 x 20,468 m

No. 4: A+B 28,00 x 20,468 m

Type of hatchcovers

Hydraulically operated folding hatch covers

Tank capacities

Ballast: 5.672,7 m³

Anchor equipment

Length: 571,74 m

Diameter: 60 mm

Cargo gear

Gearless

Manager

Carsten Rehder Schiffsmakler und Reederei GmbH & Co. KG
Große Elbstraße 42
22767 Hamburg
Germany

Owner

Svendborg Beteiligungs GmbH & Co. KG

Previous owners

2011 - 2015 MS "SVENDBORG STRAIT" GmbH & Co. KG
Hamburg
Germany

Latest data adjustment

23 August 2015
