Westerschelde 08 May 2019 |
 |
| Westerschelde 01/05/15 |
|
Name |

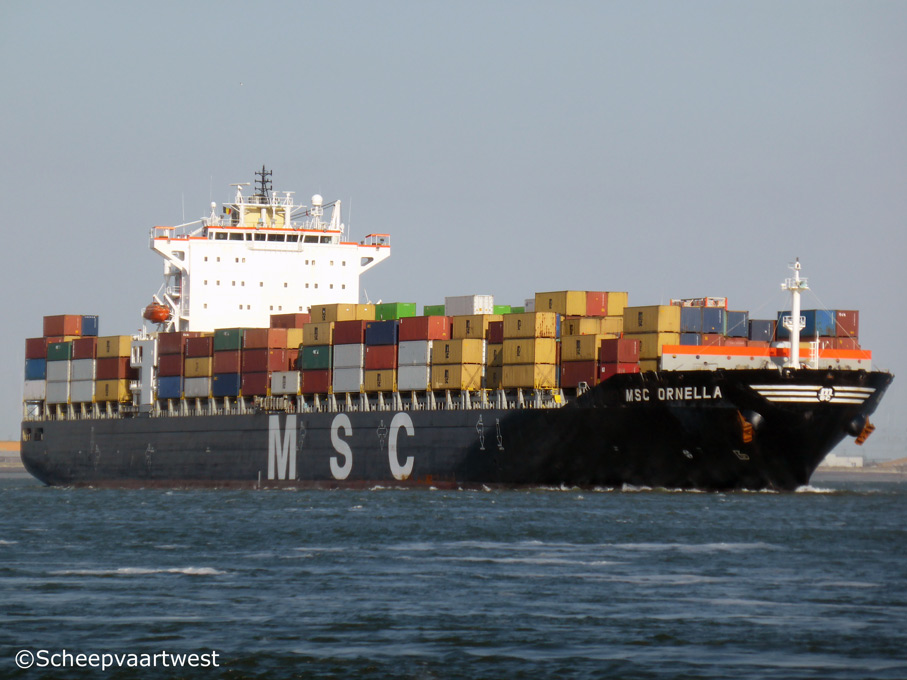

MSC ORNELLA |
|
Type |
Cellular containership |
|
IMO-number |
9281267 |
|
Call sign |
H3RF |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
54.304 t |
|
DWT |
Summer: 68.372 t |
|
NT |
31.318 t |
|
Number of 20ft containers |
5.048 |
|
Container capacity 14t |
3.373 |
|
Reefer capacity |
400 |
|
Length |
294,10 m overall 288,00 m between perpendiculars |
|
Breadth |
32,31 m extreme 32,20 m moulded |
|
Draught |
13,50 m |
|
Depth |
21,60 m |
|
Speed |
Max.: 23,0 knots |
|
Built |
2004 |
|
Keel laid |
19/12/2003 |
|
Launch date |
20/02/2004 |
|
Date of completion |
14/04/2004 |
|
Builder |
Hanjin Heavy Industries & Construction Co., Ltd. 29, 5-ga, Bongnae-dong Youngdo-gu 606-065 Busan 11 Republic of Korea |
|
Yard number |
N-116 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
7 |
|
Continuous decks |
2 |
|
Main engine |
1x MAN-B&W 9K90MC-C - 2 stroke 9 cylinder 900 x 2.300 mm combustion engine 41.130 kW at 104,0 rpm Year of manufacture: 2003 Manufacturer: HSD Engine Co., Ltd. 69 Sinchon-dong Changwon, Kyungnam 641-370 Republic of Korea |
|
Propellers |
1x Solid propeller (keyless) - aft at 104,0 rpm |
|
Boilers |
1x Steam boiler, oil fired - 10,0 bar Heating surface: 50,0 m² 1xSteam boiler exhaust gas heated - 10,0 bar Heating surface: 689,0 m² Year of manufacture: 2003 Manufacturer: KangRim Industries Co., Ltd. (3rd Factory) 40, Wongnam-dong Changwon Republic of Korea |
|
Electric installations |
4x Plant each 450/230 V - 1.987,5 kVA 1x Plant 450 V - 500 kVA 1x Plant 24 V - 42 Ah 1x Plant 24 V - 200 Ah 1x Plant 24 V - 200 Ah 1x Plant 24 V - 400 Ah |
|
Shaft generator |
MAN-B&W 8L28/32H main diesel generatorsets each 1.987,5 kVA |
|
Generators |
Manufacturer: MAN B&W Diesel A/S Holeby Diesel |
|
Emergency generator |
1x Scania DC12 41 diesel generatorset 500 kVA |
|
Compressed air receivers |
2x Receivers each 13.500 litres - 32,4 bar 1x Receiver 300 litres - 32,4 bar 4x Receivers each 60 litres - 9,7 bar 1x Receiver 20 litres - 9,7 bar 1x Receiver 250 litres - 7,7 bar |
|
Bow thruster |
1x Transverse thruster ULSTEIN - 1.900 kW, forward |
|
Tank capacities |
Fuel oil: 6.672 m³ Ballast water: 19.222 m³ |
|
Lifting equipment |
3x Anchors weight each 13.500 kg Length: 714,70 m Diameter: 90 mm |
|
Cargo gear |
Gearless |
|
Manager |
MSC Shipmanagement Ltd. MSC House 8, Spyrou Kyprianou Avenue 3070 Limassol Republic of Cyprus |
|
Operator |
MSC - Mediterranean Shipping Company S.A. |
|
Registered owner |
Saltgate Panama Shipping Inc. |
|
Latest data adjustment |
04 April 2021 |
