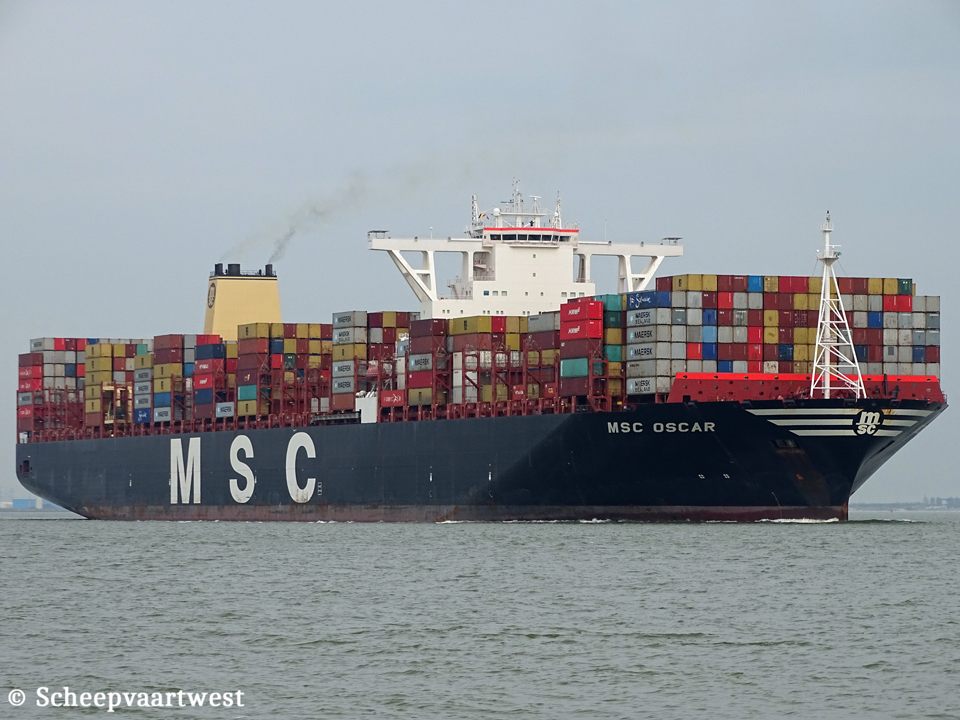

MSC Oscar IMO 9703291 01
Westerschelde 09 April 2019

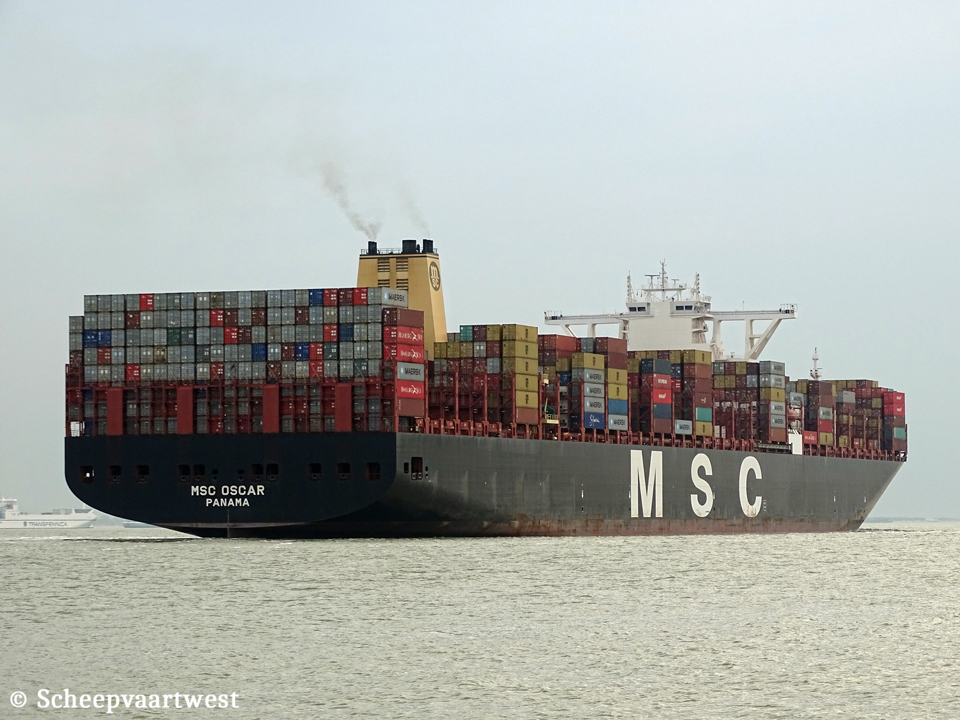

MSC Oscar IMO 9703291 02
Westerschelde 09/04/19













Name

MSC OSCAR

Type

Cellular containership

IMO-number

9703291

Call sign

3FBT7

Flag

Republic of Panama

Port of registry

Panama City

GT

192.237 t

DWT

199.272,7 t

NT

11.423 t

Number of 20ft containers

19.224

Reefer capacity

1.800

Length

395,47 m overall

379,39 m between perpendiculars

Breadth

59,08 m extreme

Draught

16,00 m

Freeboard

6.579 mm

Depth

30,30 m

Speed

Max: 22,8 knots

Built

2015

Keel laid

15/07/2014

Launch date

10/10/2014

Date of completion

29/12/2014

Builder

Daewoo Shipbuilding & Marine Engineering Co., Ltd.

South Korea

Yard number

4277

Hull material

Steel

Bulkheads

13

Number of decks

Upper deck

2nd deck

Main engine

1x STX/MAN-B&W 11S 90ME-10.2- II - 2 stroke 11 cylinder 900 x 3.260 mm combustion engine Mcr 62.500 kW / 84.975 hp at 82,2 rpm

Propellers

1x Fixed pitch propeller

Boilers

3x Auxiliary boiler, exhaust gas heated

1x Auxiliary boiler, oil/gas fired

Build: 13/06/2014

Builder: Kangrim Heavy Ind Co.,Ltd

Generators

2x MAN 8L32/40 diesel generatorsets each 4.400 kW

2x MAN 9L32/40 diesel generatorsets each 4.500 kW

Emergency generator

1x MAN D2842LE201 diesel generatorset 620 KW at 1.800 rpm

Bow thruster

2x 2.500 kW each

Number of holds

11

Tank capacities

Ballast: 60.566,5 m³

Lifting equipment

Length: 770,00 m

Diameter: 132 mm

Cargo gear

Gearless

Commerical manager

MSC Mediterranean Shipping Co.

chemin Rieu, 12-14

1208 Geneva

Switzerland

ISM manager

Mediterranean Shipping Company S.r.l.

Via Francesco Ciampa 29

80063 Piano di Sorrento NA

Italy

Registered owner

Xiangtian International Ship lease Co., Ltd.

Care of MSC Mediterranean Shipping Co SA

chemin Rieu, 12-14

1208 Geneva

Switzerland

Latest data adjustment

30 April 2022
