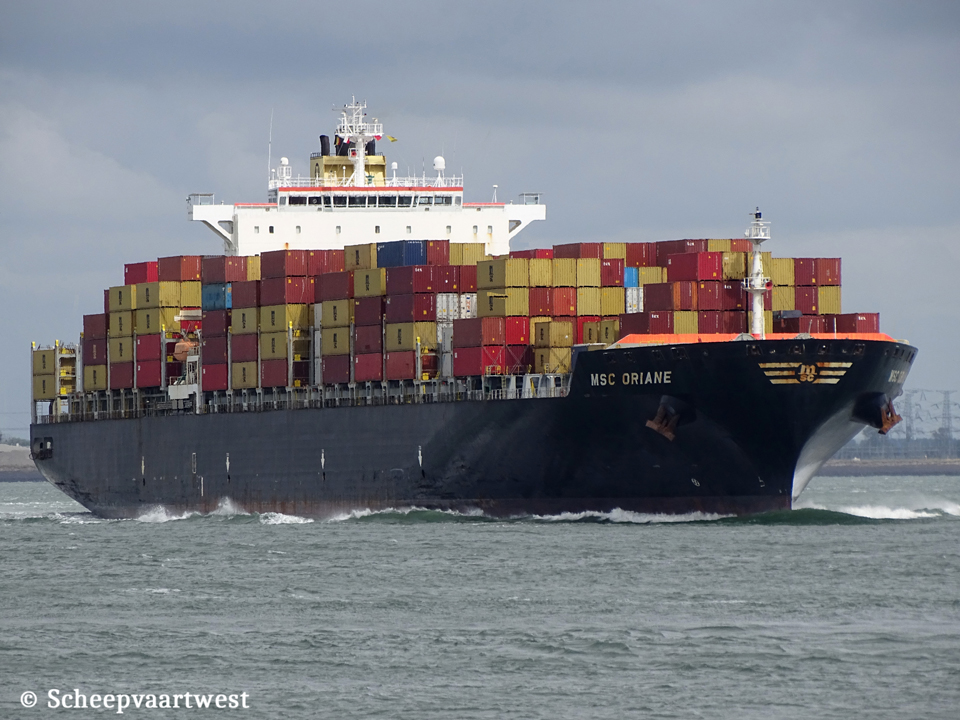

Westerschelde 04 June 2020 |
 |
 |
 |
||

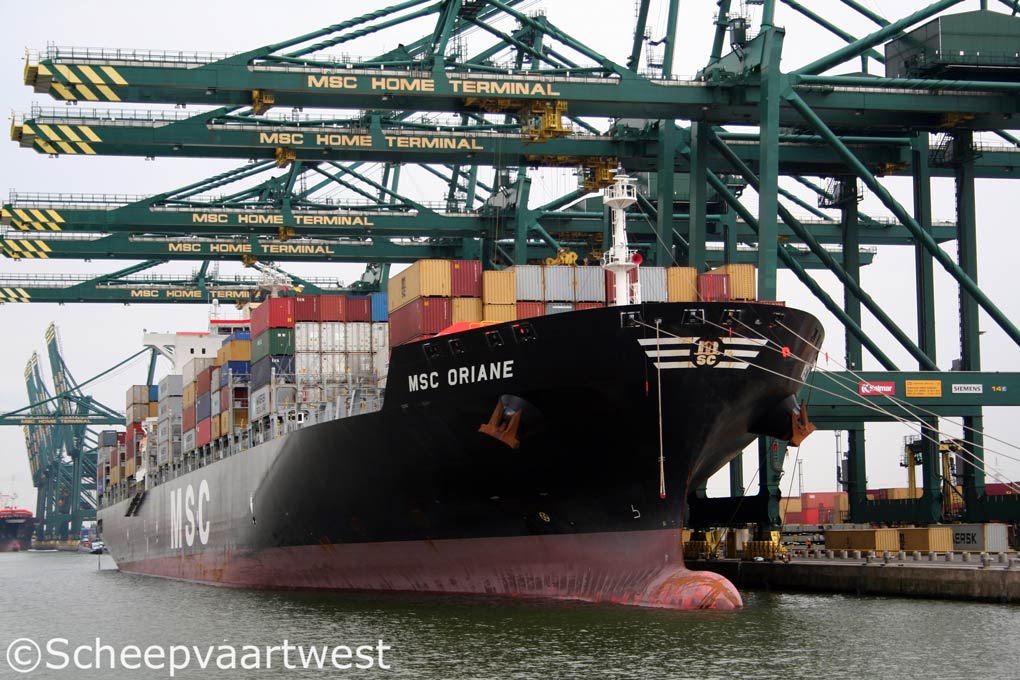

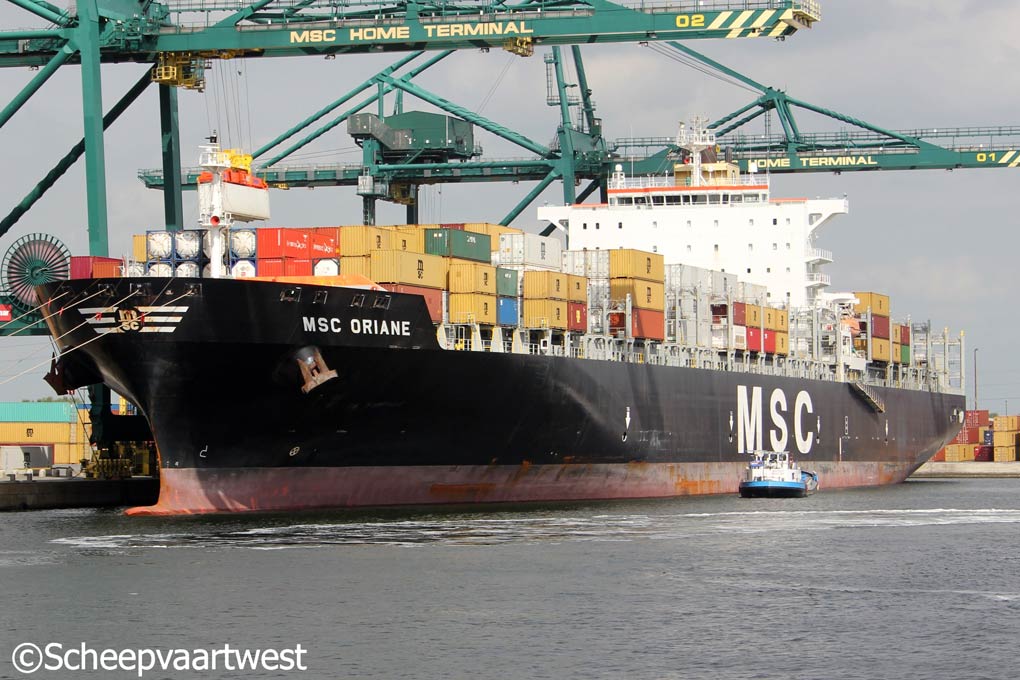

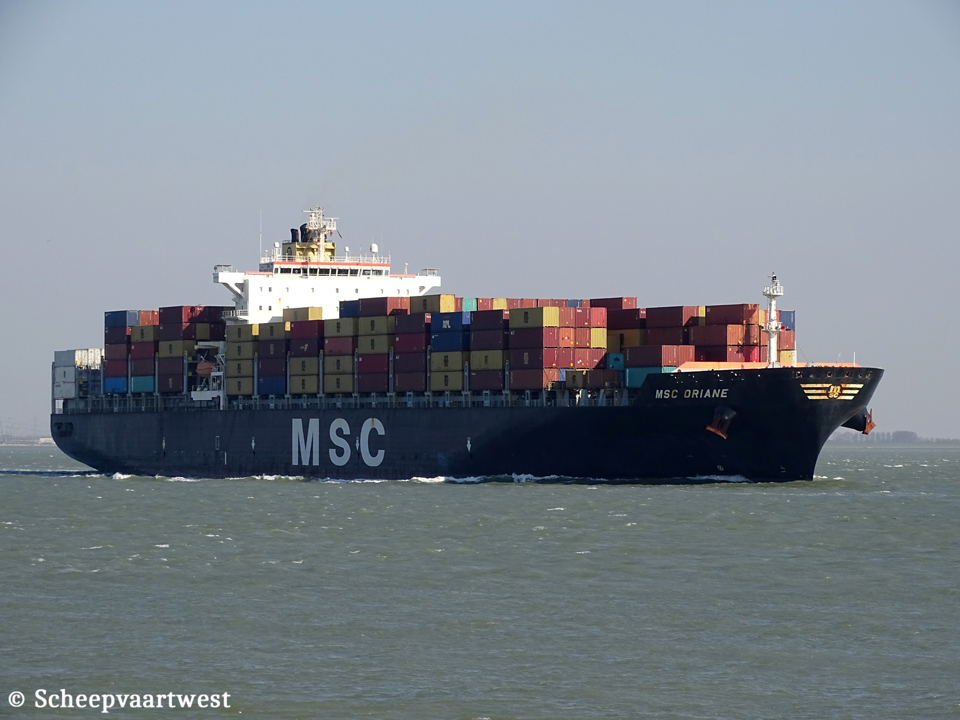

| Westerschelde 26/03/20 | Antwerpen 31/08/11 | Antwerpen 31/08/11 |
|
Name |
MSC ORIANE |
|
Type |
Cellular containership |
|
IMO-number |
9372482 |
|
Call sign |
3EPY8 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
66.399 t |
|
DWT |
72.900 t |
|
NT |
37.740 t |
|
Number of 20ft containers |
5.762 |
|
Container capacity 14t |
4.180 |
|
Reefer point |
632 |
|
Length |
277,30 m overall 263,00 m between perpendiculars |
|
Breadth |
40,00 m |
|
Draught |
14,50 m |
|
Keel to mast end |
60,00 m |
|
Depth |
24,30 m |
|
Speed |
Max.: 24,8 knots |
|
Built |
2008 |
|
Date of completion |
28/04/2008 |
|
Builder |
Samsung Heavy Industries Co., Ltd. Geoje Shipyard Goeje (Kyungnam) South Korea |
|
Yard number |
1653 |
|
Hull material |
Steel |
|
Main engine |
1x Doosan/MAN-B&W 9K98MC-C - 2 stroke 9 cylinder 900 x 2.550 mm combustion engine 51.535 kW / 70.020 hp at 94,0 rpm |
|
Propelling system |
1x Fixed pitch propeller |
|
Boilers |
1x CHR Kangrim Industries 354,00 m² - 9,0 bar 1x CHO Kangrim Industries 81,15 m² - 7,0 bar |
|
Diesel generators |
4x Main diesel generatorsets each 2.300 kW |
|
Bow thruster |
1x 2.500 kW |
|
Lifting equipment |
2x Cranes - SWL 12,5 t each |
|
Cargo gear |
Gearless |
|
Commercial manager |
MSC - Mediterranean Shipping Company S.A. Chemin Rieu 12 141208 Geneva Switzerland |
|
ISM manager |
Mediterranean Shipping Co. Srl Via Francesco Ciampa 29 80063 Piano di Sorrento NA Italy |
|
Operator |
MSC - Mediterranean Shipping Company S.A. |
|
Registered owner |
Compania Naviera Oriane S.A. - Republic of Panama Care of MSC Mediterranean Shipping Co SA , chemin Rieu, 12-14 1208 Geneva Switzerland |
|
Latest data adjustment |
28 June 2022 |
