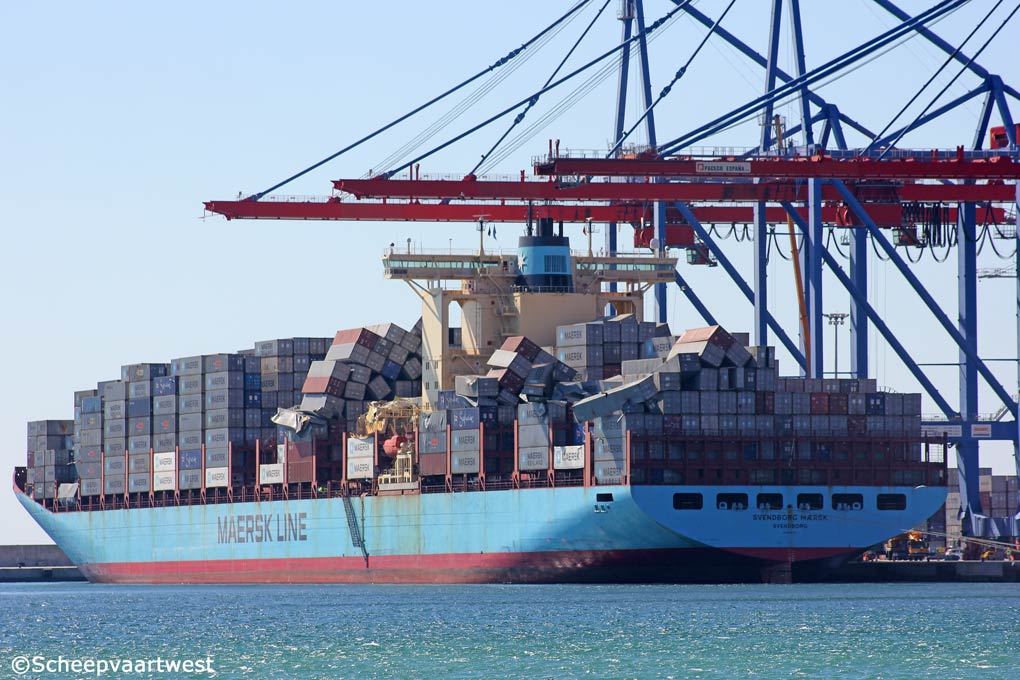

Svendborg Maersk 01

Malaga - Spain 19 February 2014

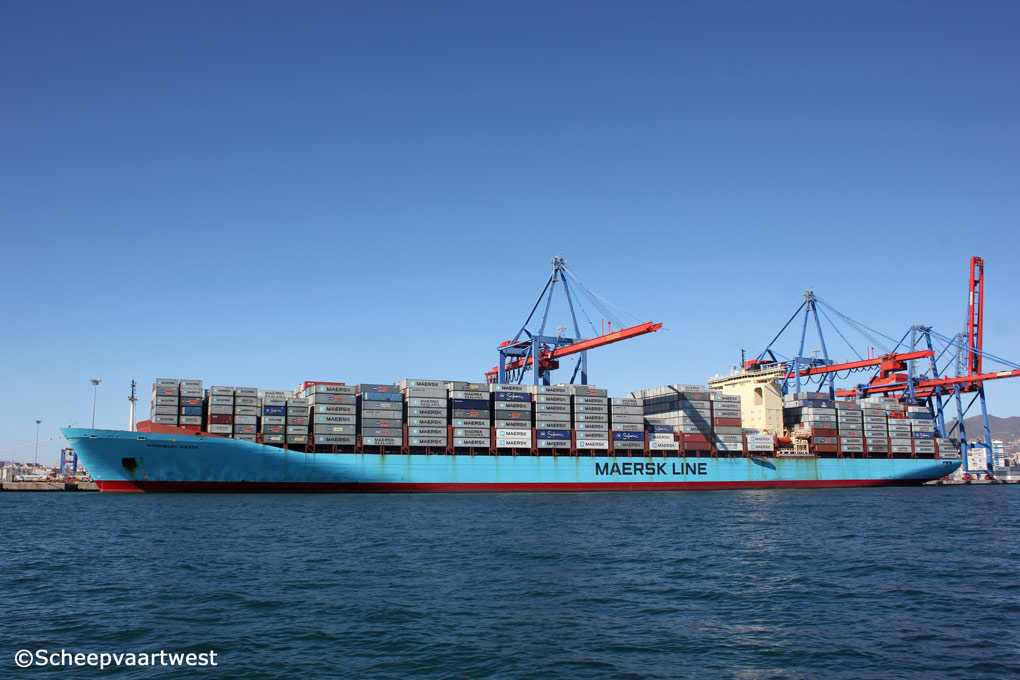

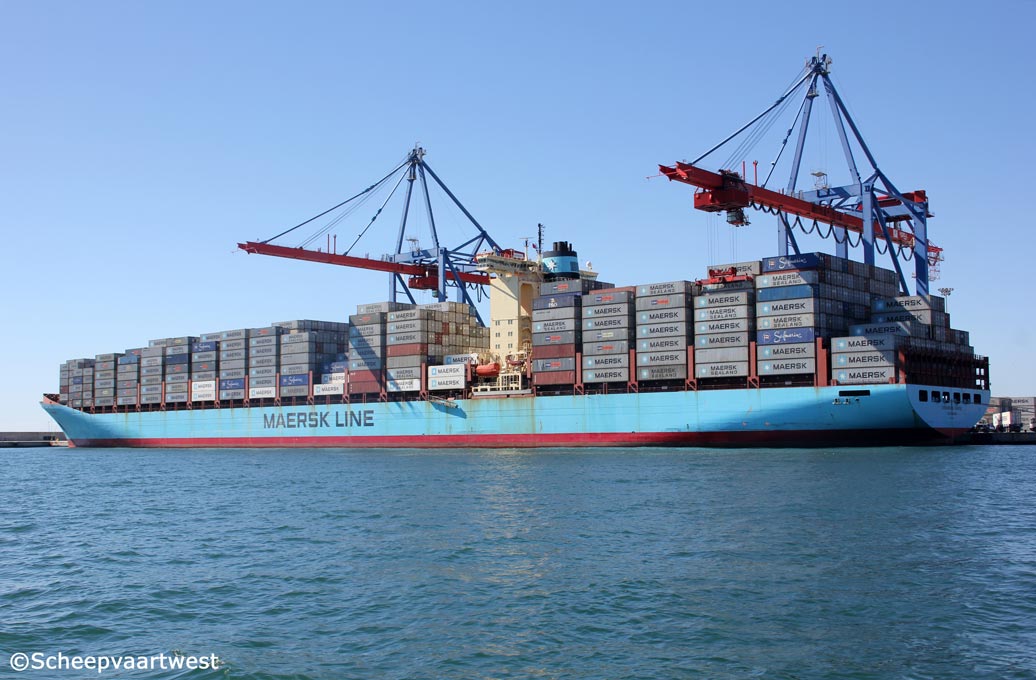

Svendborg Maersk 03   Svendborg Maersk 04
22/02/14   23/02/14



Name

SVENDBORG MAERSK

Type

Cellular containership - Carriage of dangerous goods

IMO-number

9146467

Call sign

OZSK2

Flag

The Kingdom of Denmark

Port of registry

Svendborg

GT

92.198 t registered

Suez: 91.097,24 t

DWT

Summer: 110.387 t

NT

53.625 t registered

Suez: 80.614,37 t

Number of 20ft containers

7.226

Container capacity 14t

6.600

Reefer capacity

703

Length

346,98 m overall

331,50 m between perpendiculars

Breadth

42,80 m moulded

Draught

14,50 m

Freeboard

9.159 mm

Depth

24,10 m moulded

Speed

25,0 knots

Built

1998

Keel laid

01.04.1998

Date of completion

25.09.1998

Builder

Odense Steel Shipyard Ltd.
Odense
Denmark

Yard number

L164

Hull material

High strength steel

Ordinary strength steel

Watertight bulkheads

14

Main engine

1x MAN-B&W 12K90MC Mk VI - 12 cylinder 900 x 2.550 mm combustion engine - 55.681,44 kW

Manufacturer: Hitachi Zosen Diesel & Engr.

Propellers

1

Boilers

Auxiliary water tube boiler

Waste heat fire tube boiler

Generators

5x MAN-B&W 7L32/40 main diesel generatorsets each 3.000 kW

Cargo capacity

Grain: 192.141 m³

Number of tanks

Ballast: 24

Fuel oil: 19

Lubricating oil: 16

Fresh water: 5

Waste water: 5

Diesel oil: 4

Potable water: 3

Sludge: 3

Hydraulic oil: 1

Chain: 1

Slop: 1

Tank capacities

Freshwater: 420 m³

Fuel oil: 11.784 m³ / 11.076,96 t

Tank Ballast: 35.916 m³

Cargo gear

None

Manager

A.P. Møller - Mærsk A/S
Attn: Technical Organisation
Account Payable
Esplanaden 50
1098 København K
Denmark

Operator

Maersk Line

Registered owner

A.P. Møller - Mærsk A/S

Latest data adjustment

08 April 2014
