Westerschelde 07 April 2014 |
 |
| Westerschelde 07/04/14 |
|
Name |

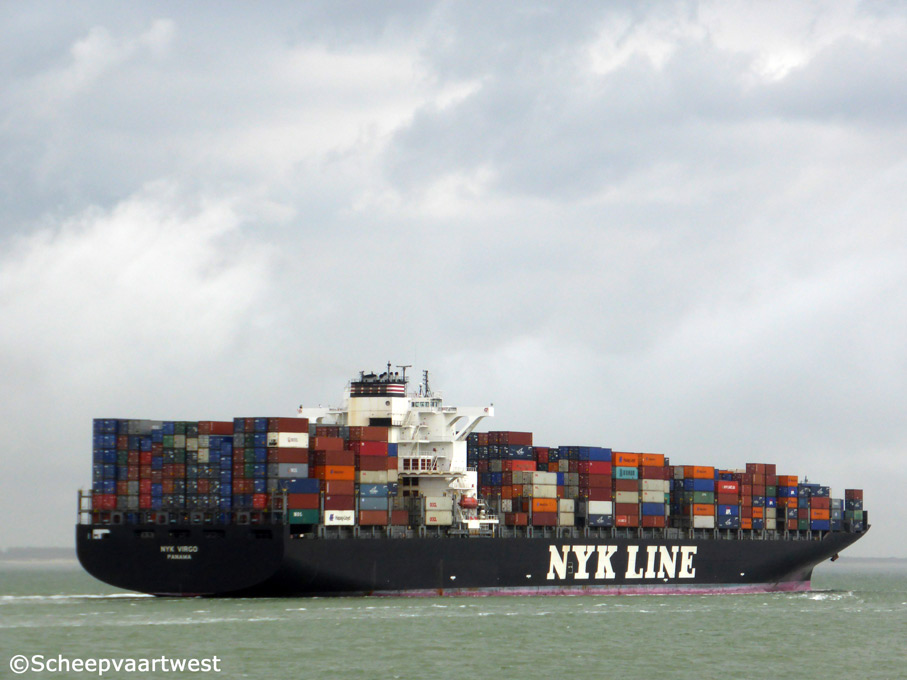

NYK VIRGO |
|
Type |
Cellular containership |
|
IMO-number |
9312810 |
|
Call sign |
3EKK2 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
97.825 t |
|
DWT |
Summer: 103.284 t |
|
NT |
37.907 t |
|
Number of 20ft containers |
9.012 |
|
Number of 40ft containers |
4.388 |
|
Container capacity 14t |
7.000 |
|
Reefer capacity |
854 |
|
Length |
338,17 m overall |
|
Breadth |
46,00 m |
|
Draught |
Summer: 14,52 |
|
Moulded L x B x D |
321,09 x 45,60 x 20,14 m |
|
Registered L x B x D |
325,37 x 45,60 x 24,60 m |
|
Freeboard |
5.659 mm |
|
Depth |
10,14 m moulded |
|
Speed |
Max.: 25,0 knots |
|
Built |
2007 |
|
Keel laid |
29.09.2006 |
|
Launch date |
16.03.2007 |
|
Date of completion |
07.05.2007 |
|
Builder |
Hyundai Heavy Industries Co., Ltd. Ulsan South Korea |
|
Yard number |
1717 |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W 12K98MC - 2 stroke single acting 12 cylinder 980 x 2.660 mm combustion engine - 64.033 kW at 94,0 rpm Manufacturer: Hyundai Heavy Industries Co., Ltd. Engine & Machinery Department |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 980 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 9,8 bar Evaporation: 36,67 t/h 1x Exhaust gas boiler - 4,9 bar Evaporation: 3,48 t/h Manufacturer: Osaka Boiler Mfg., Co., Ltd. |
|
Generators |
6x Generators total 18.250 kVA |
|
Tank capacities |
Fuel oil: 11.368 m³ Fresh water: 712 m³ Water ballast: 25.442 m³ |
|
Cargo gear |
Gearless |
|
Manager |
NYK Shipmanagement Pte., Ltd. |
|
Operator |
NYK Line |
|
Registered owner |
Bartlett Marine Corp. |
|
Latest data adjustment |
03 May 2014 |
