Westerschelde 07 November 2018 |
 |
| Westerschelde 07/11/18 |
|
Name |

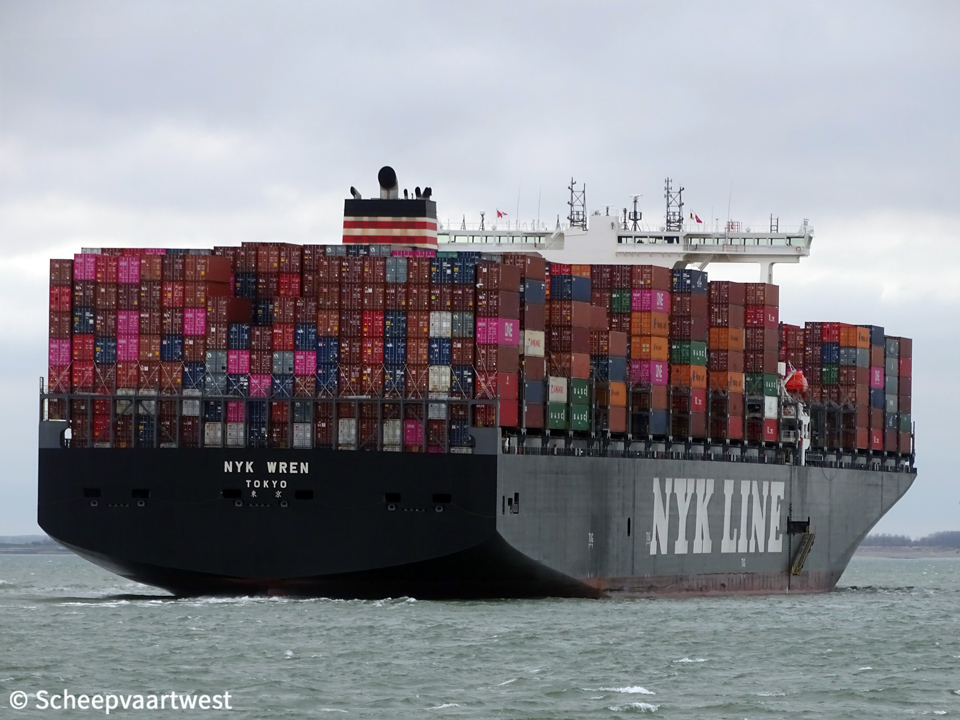

NYK WREN |
|
Type |
Cellular containership |
|
IMO-number |
9784776 |
|
Call sign |
7KBS |
|
Flag |
Japan |
|
Port of registry |
Tokyo |
|
GT |
145.251 t registered |
|
DWT |
139.335 t |
|
NT |
84.742 t registered |
|
Number of 20ft containers |
14.026 |
|
Reefer capacity |
1.120 |
|
Length |
364,15 m overall |
|
Breadth |
50,60 m |
|
Draught |
Summer: 15,79 m |
|
Moulded L x B x D |
349,20 x 50,60 x 23,04 m |
|
Registered L x B x D |
353,91 x 50,60 x 23,04 m |
|
Freeboard |
Summer: 15.786 mm |
|
Depth |
23,04 m moulded |
|
Speed |
Max: 21,1 knots |
|
Built |
2018 |
|
Keel laid |
09/11/2015 |
|
Launch date |
10/11/2017 |
|
Date of completion |
23/03/2018 |
|
Builder |
JMU- Japan Marine United Corporation Kure Shipyard |
|
Yard number |
5111 |
|
Hull material |
Steel |
|
Main engine |
1x Wärtsilä-Diesel United W9X82 - 2 stroke single acting 9 cylinder 820 x 3.375 mm combustion engine 28.310 / 37.964 bhp at 65,3 rpm Manufacturer: Diesel United, Ltd. Aioi Machinery Works - Japan |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 1.020 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 7,0 bar Evaporation: 5,70 t/h Manufacturer: Osaka Boiler Mfg. Co., Ltd. |
|
Generators |
4x Main diesel generatorsets each 3.200 kW |
|
Bow thruster |
2x 1.800 kW |
|
Tank capacities |
Fuel oil: 10.515,8 m³ Fresh water: 599,3 m³ |
|
Manager |
Nippon Yusen Kaisha - NYK-Line |
|
Operator |
Anchor Ship Investment Co. Ltd. |
|
Registered owner |
Vanilla Ship Holding LLC |
|
Latest data adjustment |
16 August 2019 |
