Westerschelde 16 September 2019 |
 |
 |
|
| Westerschelde 06/04/19 | Westerschelde 20/08/20 | |
|
Name |

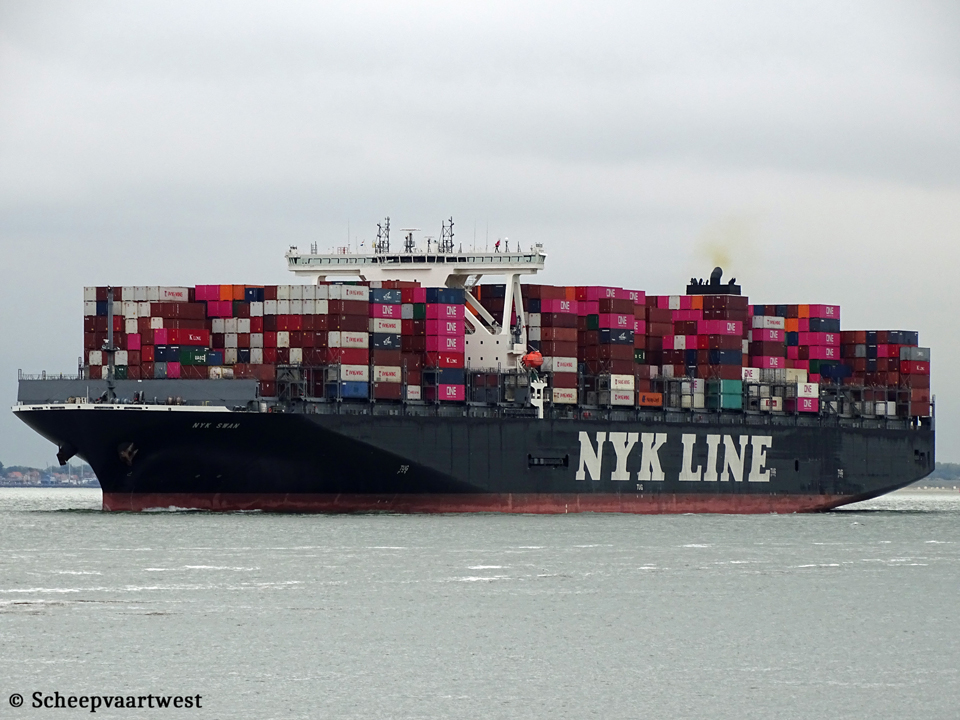

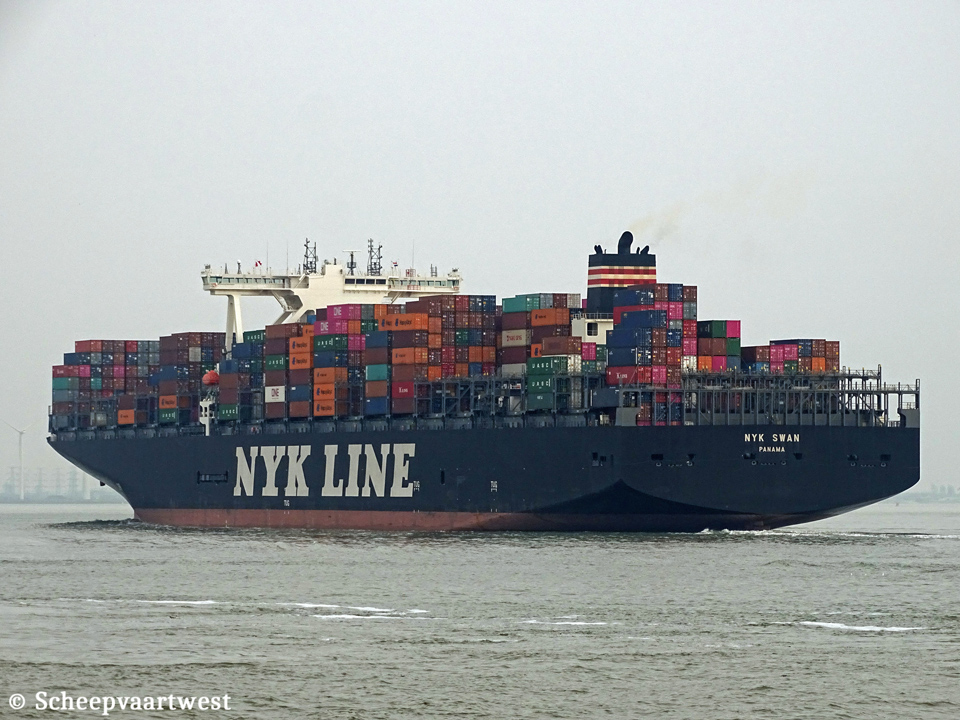

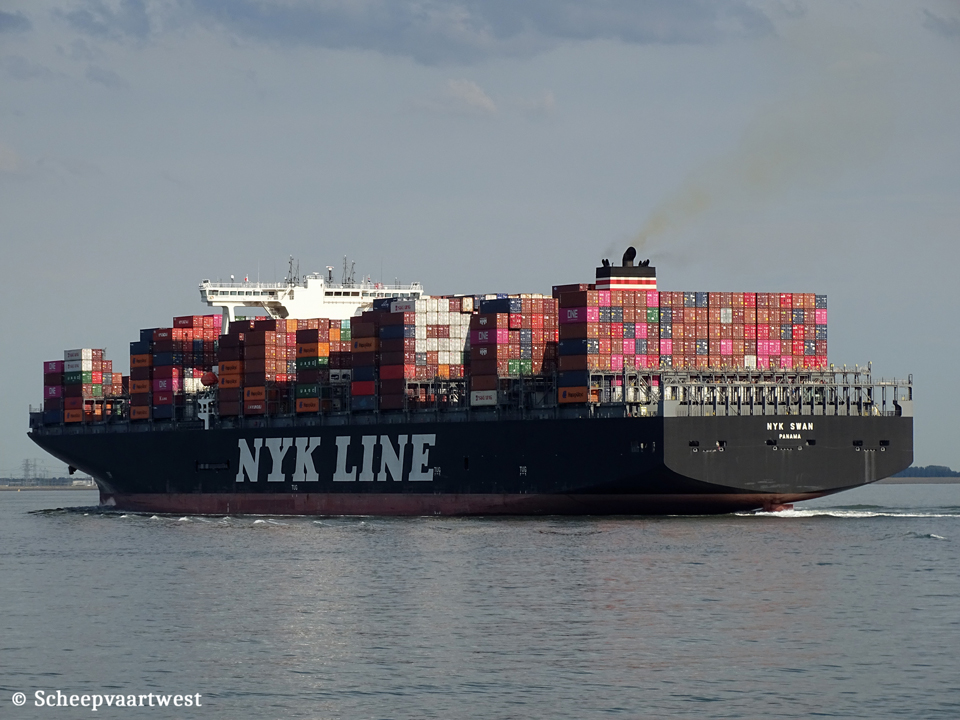

NYK SWAN |
|
Type |
Cellular containership |
|
IMO-number |
9741437 |
|
Call sign |
HOJR |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
145.407 t |
|
DWT |
138.907 t |
|
NT |
82.126 t |
|
Number of 20ft containers |
14.026 |
|
Container capacity 14t |
9.150 |
|
Reefer capacity |
1.120 |
|
Length |
364,15 m overall |
|
Breadth |
50,60 m moulded |
|
Draught |
Summer: 15,79 m |
|
Moulded L x B x D |
349,20 x 50,60 x 23,04 m |
|
Registered L x B x D |
351,57 x 50,60 x 23,04 m |
|
Freeboard |
Summer: 7.301 mm |
|
Depth |
23,04 m moulded |
|
Speed |
Max: 24,0 knots Service: 21,0 knots |
|
Built |
2017 |
|
Builder |
Japan Marine United Corp. - Kure HS Yard Japan |
|
Yard number |
5077 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 9X82 - 2 stroke single acting 9 cylinder 820 x 3.375 mm combustion engine 42.180 kW at 74,6 rpm Manufacturer: Diesel United, Ltd. |
|
Propellers |
1x Fixed pitch propeller - aft at 65,0 rpm |
|
Generators |
4x Main diesel generatorsets each 3.200 ekW |
|
Bow thruster |
1x Tunnel thrusters each 1/800 kW / 2.447 bhp, forward |
|
Tank capacities |
Fuel oil: 10.515,83 m³ Fresh water: 599,34 m³ |
|
Cargo gear |
Gearless |
|
Crew size |
24 |
|
Manager |
NYK Line Yusen Building, 3-2, Marunouchi 2-chome, Chiyoda-ku, Tokyo, 100-0005 Japan |
|
Renamed |
2020 One Swan Republic of Panama, Panama City - Call sign: HOJR Owner: Wakaba Ship Holding SA Manager: NYK Line- Japan |
|
Latest data adjustment |
02 September 2021 |
