Westerschelde 06 April 2014 |
 |
 |
|
| Westerschelde 06/04/14 | Westerschelde 06/04/14 |
|
Name |

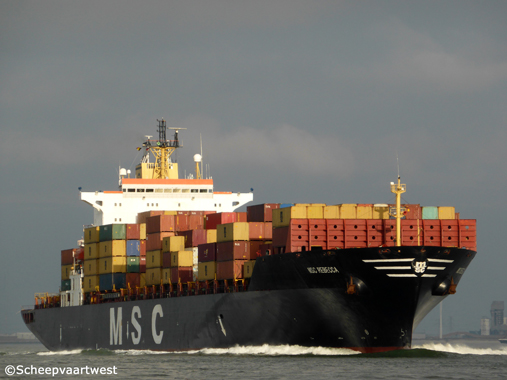

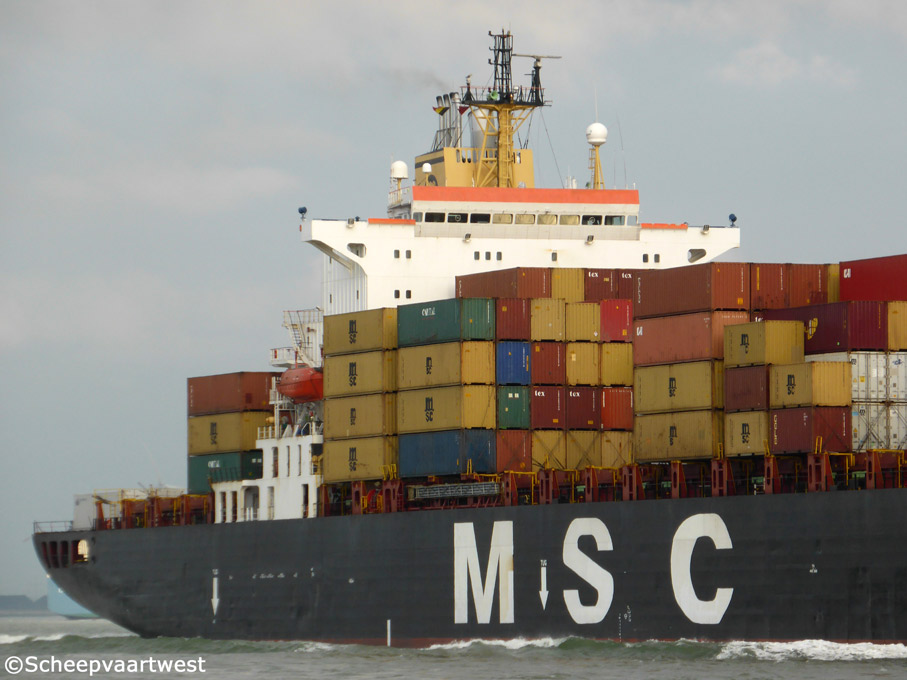

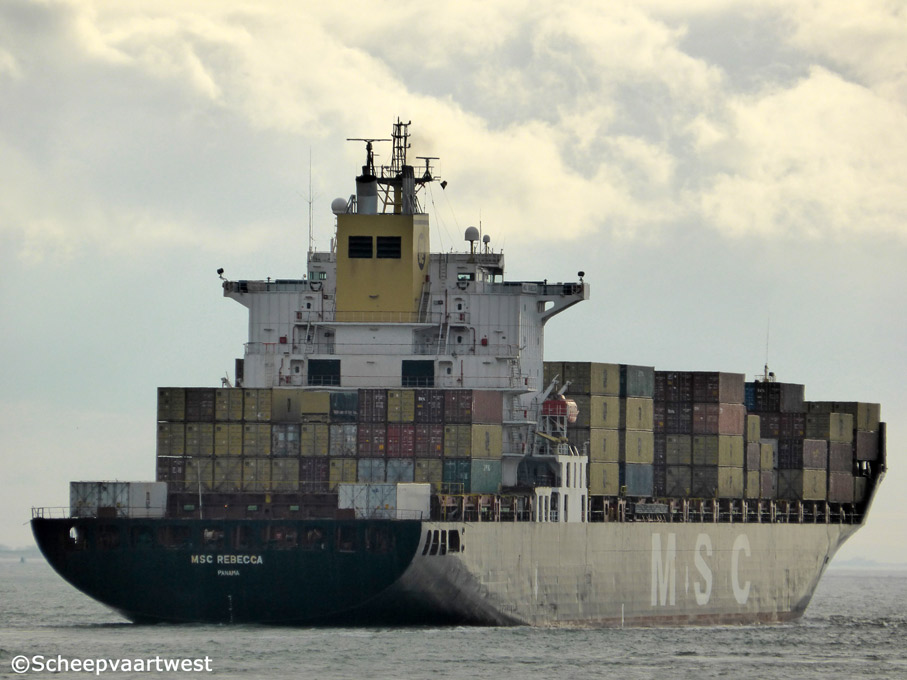

MSC REBECCA |
|
Previous names |
1997 Launch as: Grand Concord |
|
Type |
Cellular containership |
|
IMO-number |
9139505 |
|
Call sign |
HONW |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
37.579 t |
|
DWT |
Summer: 42.954 t |
|
NT |
21.891 t |
|
Number of 20ft containers |
3.398 |
|
Container capacity 14t |
2.320 |
|
Reefer capacity |
301 |
|
Length |
242,83 m overall 227,37 m registered |
|
Breadth |
32,20 m registered |
|
Draught |
12,10 m |
|
Forecastle |
45,47 m |
|
Quarterdeck |
7,70 m |
|
Depth |
16,35 m moulded |
|
Speed |
23,2 knots |
|
Built |
1997 |
|
Keel laid |
21.02.1997 |
|
Launch date |
20.04.1997 |
|
Date of completion |
26.06.1997 |
|
Builder |
Samsung Shipbuilding & Heavy Industries Co., Ltd. 530, Jangpyung-ri, Sinhyun-up Koje-gun Republic of Korea |
|
Yard number |
1195 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
9 |
|
Continuous decks |
3 |
|
Main engine |
1x Sulzer 7RTA84C - 2 stroke 7 cylinder 840 x 2.400 mm combustion engine - 28.350 kW / 38.545 bhp at 102,0 rpm Year of manufacture: 1997 Manufacturer: Samsung Shipbuilding & Heavy Industries Co., Ltd. Changwon Plant 67-6, Shinchon-dong Changwon, Kyongsang-namdo Republic of Korea |
|
Propellers |
1x Solid propeller (keyless) - aft at 102,0 rpm |
|
Boilers |
Steam boiler, exhaust gas heated - 10,0 bar Heating surface: 415,0 m² Year of manufacture: 1996 Steam boiler, oil fired - 7,0 bar Heating surface: 20,3 m² Year of manufacture: 1997 Manufacturer: KangRim Industries Co., Ltd. (1st Factory) 505 Shinpyung-dong, Saha-gu Busan Republic of Korea |
|
Electric installations |
4x Plants each 440/220 V - 1.231 kVA 1x Plant 440 V - 250 kVA |
|
Generators |
4x Main diesel generatorsets each 1.231 kVA |
|
Emergency generator |
1x Diesel generatorset 250 kVA |
|
Compressed air receivers |
2x Receivers each 14.900 litres - 30,0 bar 1x Receiver 700 litres - 12,0 bar 1x Receiver 500 litres - 10,0 bar 1x Receiver 60 litres - 8,8 bar 1x Receiver 500 litres - 8,0 bar |
|
Bow thruster |
1x Transverse thruster NAKASHIMA 900 kW, forward |
|
Tank capacities |
Fuel oil: 4.286 m³ Ballast water: 11.432 m³ |
|
Anchor equipment |
3x Anchors weight each 10.500 kg Chain length: 660,00 m |
|
Cargo gear |
Gearless |
|
Manager |
MSC Shipmanagement Ltd. MSC House 8, Spyrou Kyprianou Avenue 3070 Limassol Republic of Cyprus |
|
Operator |
MSC - Mediterranean Shipping Company S.A. CH-1206 Geneva Switzerland |
|
Registered owner |
Caique Shipping Co. Ltd. c/o MSC Ship Management (Hong Kong) Ltd. Unit 4502 - 4507, 45th Floor The Centre 99 Queens Road Central Hong Kong Hong Kong Special Administration Region of P.R. China |
|
Latest data adjustment |
30 April 2014 |
