Westerschelde 23 August 2018 |
|
Name |

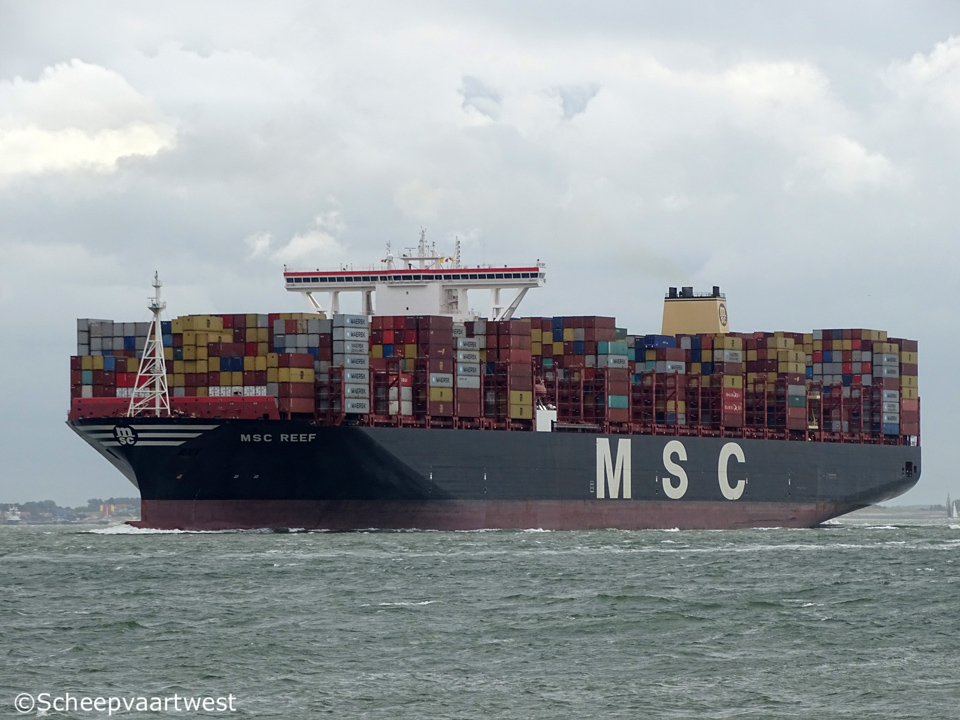

MSC REEF |
|
Type |
Cellular containership |
|
IMO-number |
9754965 |
|
Call sign |
D5LQ2 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
194.308 t |
|
DWT |
200.148 t |
|
NT |
112.221 t |
|
Number of 20ft containers |
19.224 |
|
Container capacity 14t |
17.200 |
|
Reefer capacity |
1.800 |
|
Length |
398,45 m overall 982,4 m between perpendiculars |
|
Breadth |
59,08 m extreme |
|
Draught |
16,00 m |
|
Depth |
30,30 m |
|
Speed |
Max: 24,0 knots |
|
Built |
2016 |
|
Keel laid |
04/12/2015 |
|
Launch date |
29/04/2016 |
|
Date of completion |
27/07/2016 |
|
Builder |
Daewoo Shipbuilding & Marine Engineering Co., Ltd. Okpo Shipyard |
|
Yard number |
4298 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W/Doosan 11G95ME-C9.5 - 2 stroke single acting 11 cylinder 950 x 3.460 mm combustion engine CSR: 64.234 kW / 87.333 hp Manufacturer: MAN Diesel & Turbo, Filial of MAN Diesel & Turbo SE - Germany |
|
Propellers |
1x Mono-block fixed pitch propeller aft at 80,0 rpm |
|
Boilers |
1x Auxiliary boiler, oil/gas fired (Aux Boiler) 2x Auxiliary boiler, oil/gas fired (EGE) 1x Auxiliary boiler, exhaust gas heated (Exh.Gas Boiler) |
|
Generators |
2x MAN 8L32/40CD - 4 stroke 8 cylinder 320 x 400 mm combustion engines each 4.000 kW coupled with generators each 3.900 kVA each 2x MAN 9L32/40CD - 4 stroke 9 cylinder 320 x 400 mm combustion engines each 4.500 kW coupled with generators each 4.400 kVA |
|
Emergency generator |
1x MAN D2842 LE201 diesel generatorset |
|
Bow thruster |
2x Tunnel thruster 2.500 kW / 3.399 bhp |
|
Tank capacities |
Ballast: 62.388,9 m³ |
|
Anchor equipment |
Length: 770,00 m Diameter: 132 mm |
|
Cargo gear |
Gearless |
|
Manager |
Mediterranean Shipping Company S.r.l. |
|
Operator |
MSC - Mediterranean Shipping Company |
|
Registered owner |
Xiangfu International Ship Lease Co., Limited |
|
Latest data adjustment |
29 September 2018 |
