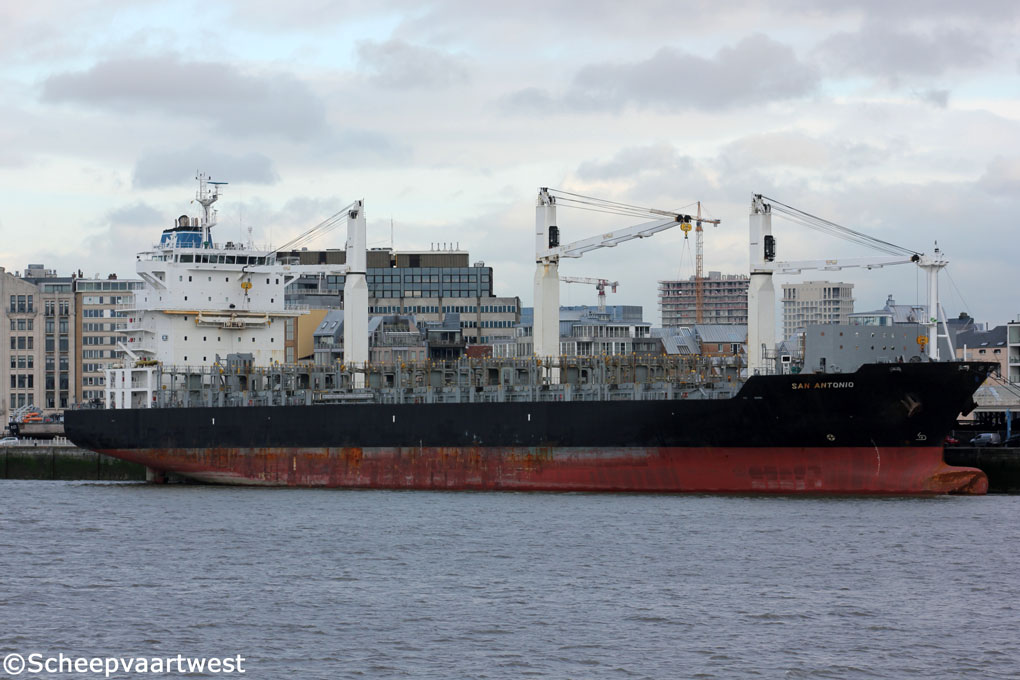

San Antonio 01
Antwerpen 17 January 2014



Name

SAN ANTONIO

Previous names

2008 - 07.2009 IBN Rushd

Type

Cellular containership- Handymax-Klasse

IMO-number

9347267

Call sign

A8PC7

Flag

Liberia

Port of registry

Monrovia

GT

22.914 t

DWT

Summer: 28.196 t

NT

9.277 t

Number of 20ft containers

1.819

Container capacity 14t

1.293

Reefer capacity

462

Length

186,33 m overall

176,82 m registered

Breadth

27,60 m registered

Draught

11,30 m

Freeboard

5.820 mm

Depth

17,10 m moulded

Speed

21,3 knots

Built

2008

Keel laid

26.10.2007

Launch date

03.01.2008

Date of completion

15.02.2008

Builder

Hyundai Mipo Dockyard Co., Ltd.
1381, Bangeo-dong, Dong-gu
Ulsan
Republic of Korea

Yard number

4009

Hull material

Shipbuilding steel (standard)

Higher tensile steel

Hull type

Double bottom

Watertight bulkheads

8

Continuous decks

1

Main engine

1x MAN-B&W 6L70MC-C - 2 stroke 6 cylinder 700 x 2.360 mm diesel engine - 19.620 kW at 108,0 rpm

Year of manufacture: 2007

Manufacturer: Hyundai Heavy Industries Co., Ltd.
1, Jeonha-dong, Dong-gu
Ulsan ,682-792 Kyongsang-namdo
Republic of Korea

Propellers

1x Solid propeller - aft at 108,0 rpm

Boilers

Steam boiler, oil fired - 9,0 bar

Heating surface: 21,0 m²

Steam boiler, exhaust gas heated - 9,0 bar

Heating surface: 630,0 m²

Year of manufacture: 2007

Manufacturer: Alfa Laval Qingdao Ltd.
86 Guangzhou Road North Jiaozhou
Qingdao, Shandong
People's Republic of China

Electric installations

4x Plants each 450 V - 2.093,3 kVA

1x Plant 450 V - 187,5 kVA

1x Plant 24 V - 200 Ah

1x Plant 24 V - 300 Ah

Generators

4x Main diesel generatorsets each 2.093,3 kVA

Emergency generator

1x Diesel generatorset 187,5 kVA

Batteries

1x Battery for UPS navigation 300 Ah

1x Battery for UPS radio 200 Ah

Compressed air receivers

2x Receivers each 7.000 litres - 30,0 bar

1x Receiver300 litres - 30,0 bar

1x Receiver250 litres - 7,0 bar

Bow thruster

1x Transverse thruster 1.000 kW, forward

Anchor equipment

3x Anchors weight each 8.700 kg

Chain length: 632,50 m

Cargo gear

2x Cranes - SWL 45,0 t each

Crew size

27

Manager

Reederei Claus-Peter Offen (GmbH & Co.) KG
Bleichenbrücke 10
20354 Hamburg
Federal Republic of Germany

Registered owner

Kommanditgesellschaft MS "SAN ANTONIO" Offen Reederei GmbH & Co.
Bleichenbrücke 10
20354 Hamburg
Federal Republic of Germany

Latest data adjustment

26 February 2014
