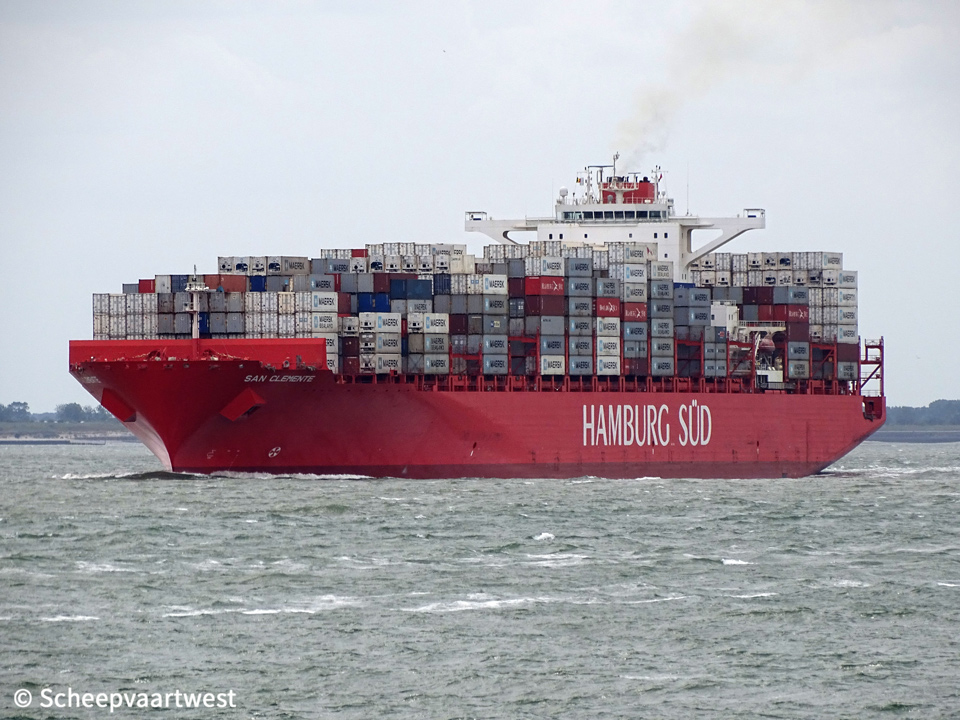

San Clemente 01

Westerschelde 11 August 2019

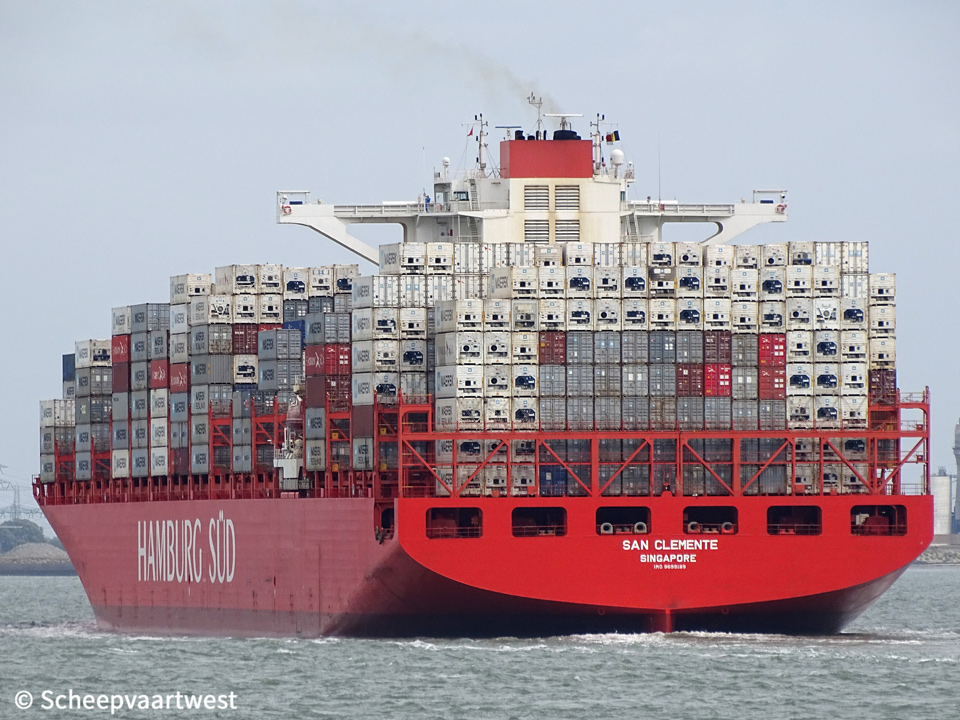

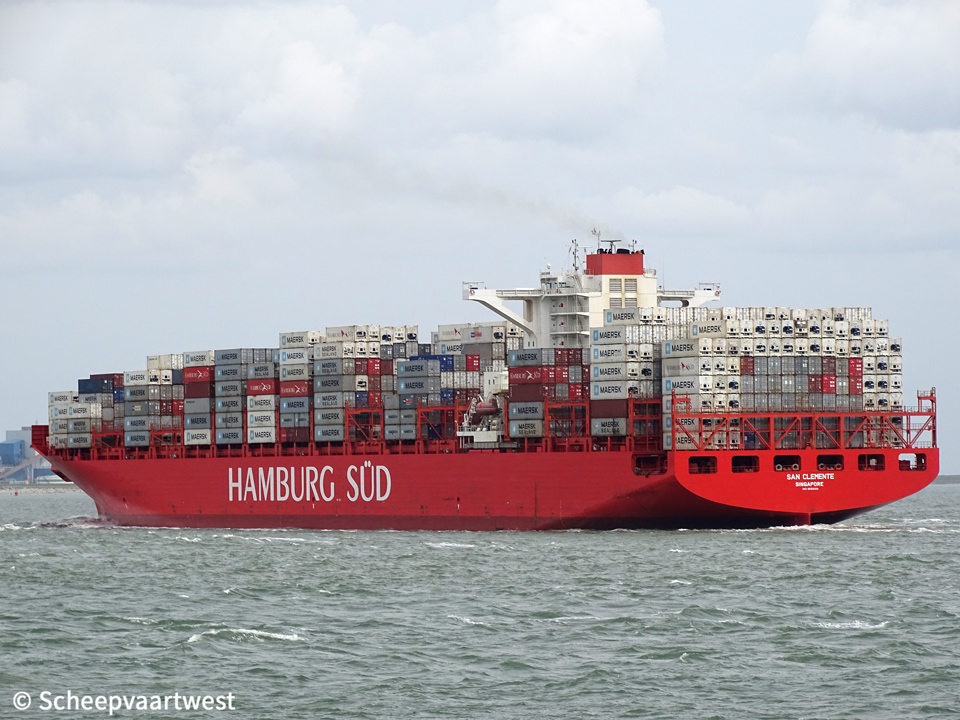

San Clemente 02   San Clemente 03
Westerschelde 11/08/19   Westerschelde 11/08/19













Name

SAN CLEMENTE

Type

Cellular containership - Carriage of dangerous goods - Panamax

IMO-number

9699189

Call sign

9V9091

Flag

Republic of Singapore

Port of registry

Singapore City

Previous flags

2014 - 2018 Liberia, Monrovia - Call sign: D5GN4

GT

94.930 t

Suez: 96.835,36 t

DWT

Summer: 112.231 t

NT

58.464 t

Suez: 86.065,57 t

Panama: 93.558 t

Displacement

142.961 t

Number of 20ft containers

9.034

Container capacity 14t

7.200

Reefer capacity

1.370

Length

299,92 m overall

287,00 m between perpendiculars

Breadth

48,28 m moulded

Draught

Max: 12,50 m

Freeboard

5.756 mm

Depth

24,80 m moulded

Speed

Max: 22,0 knots

Built

2014

Keel laid

04/03/2014

Launch date

23/05/2014

Delivery date

28/07/2014

Builder

Hyundai Heavy Ind. Co., Ltd.

Contract Management Dept. 1000 Bangeojinsunhwan-Doro

Dong-Gu

Ulsan

South Korea

Yard number

2711

Hull material

Steel

Continuous decks

1

Main engine

1x Wärtsilä W9X82 - 2 stroke single acting 9 cylinder 820 x 3.375 mm combustion engine 36.440 kW / 49.544 hp at 74,5 rpm

Manufacturer: Hyundai Heavy Industries Engine & Machinery Div. - South Korea

Propellers

1x Fixed pitch propeller - Aft at 74,5 rpm

Manufacturer: Hyundai Heavy Industries Engine & Machinery Div.

Boilers

1x Auxiliary boiler - 6,87 MPa

1x Exhaust Gas Boiler - 6,87 MPa

Manufacturer: Kangrim Heavy Industries Co., Ltd.

Generators

3x Main diesel generatorsets each 3.840 kW

1x Main diesel generatorset 2.880 kW

Manufacturer: Hyundai Heavy Industries Electro Electric System

Tank capacities

Diesel oil: 578,40 m³

Fuel oil: 7.482,20 m³

Ballast: 28.927,50 m³

Lub oil: 466,60 m³

Fresh water: 598,80 m³

Lifting equipment

1x Engine room crane - SWL 9,5 t

Manufacturer: Oriental Prec & Eng'g Co.

1x Monorail crane - SWL 9,5 t

Manufacturer: Dongnam Marine Crane Co., Ltd.

Cargo gear

Gearless

Crew size

24

Manager

Maersk Line A/S

Esplanaden 50

1098 Copenhagen, K

Denmark

Operator

Hamburg Süd

Hamburg

Germany

Registered owner

A.P. Moller Singapore Pte. Ltd.

200 Cantonment Road #10-00 Southpoint

Singapore, 089763

Republic of Singapore

Previous owners

Siebte Santa GmbH & Co KG

Latest data adjustment

19 June 2020
