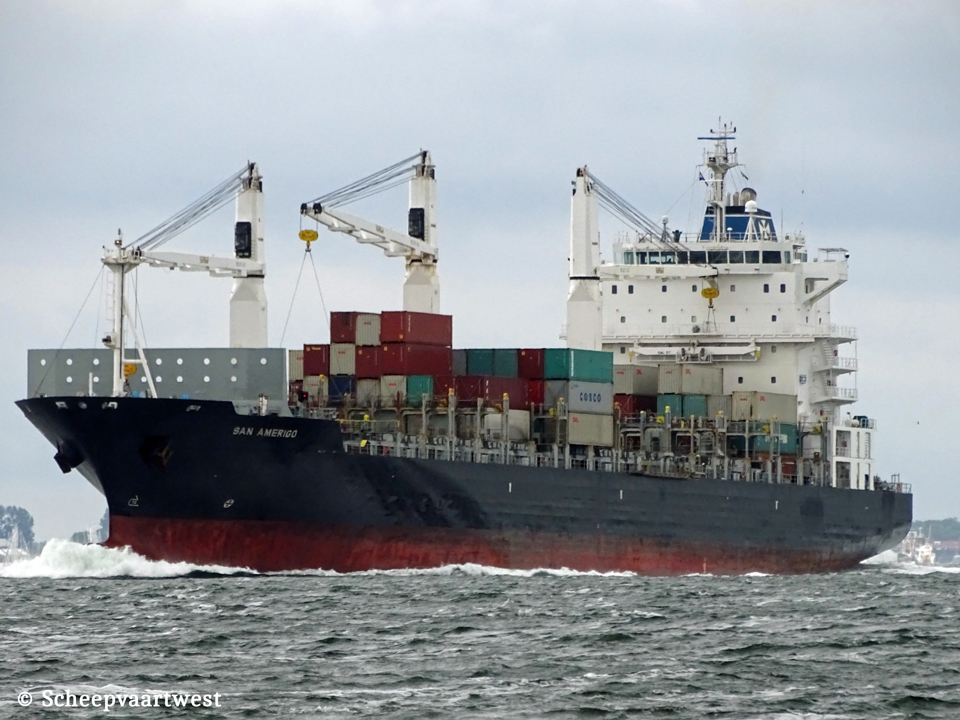

San Amerigo IMO 9344693 02

Westerschelde 19 January 2017

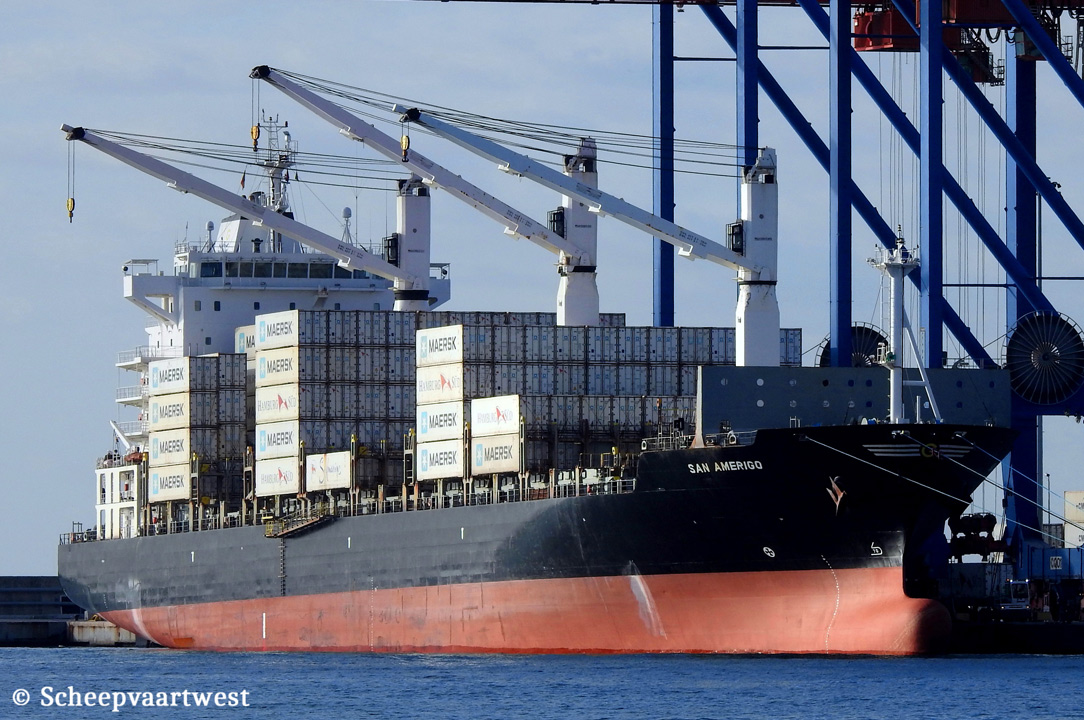

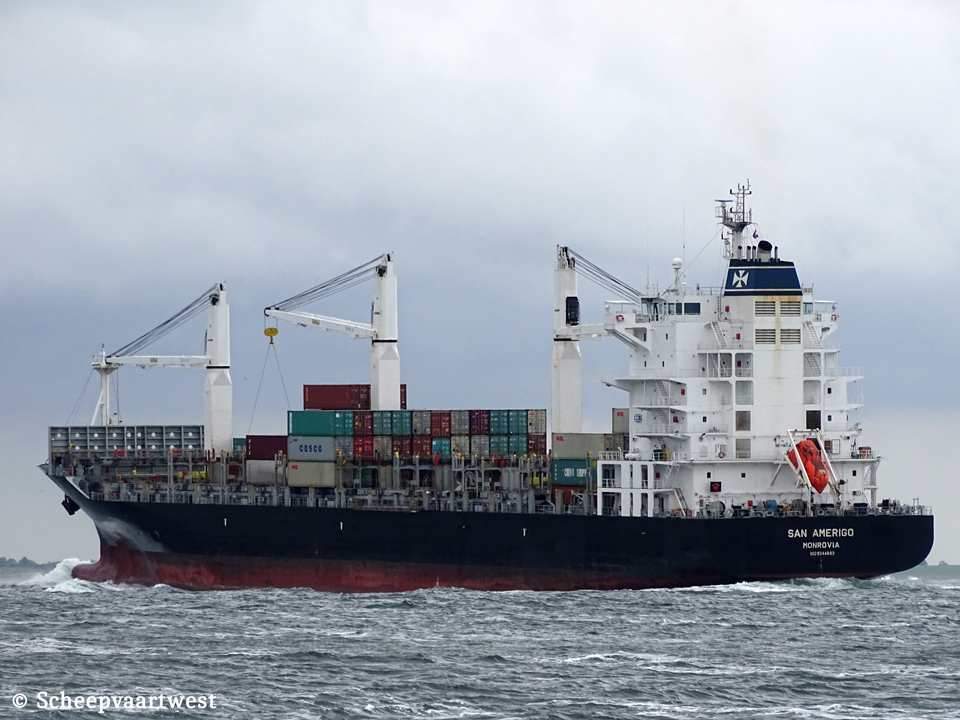

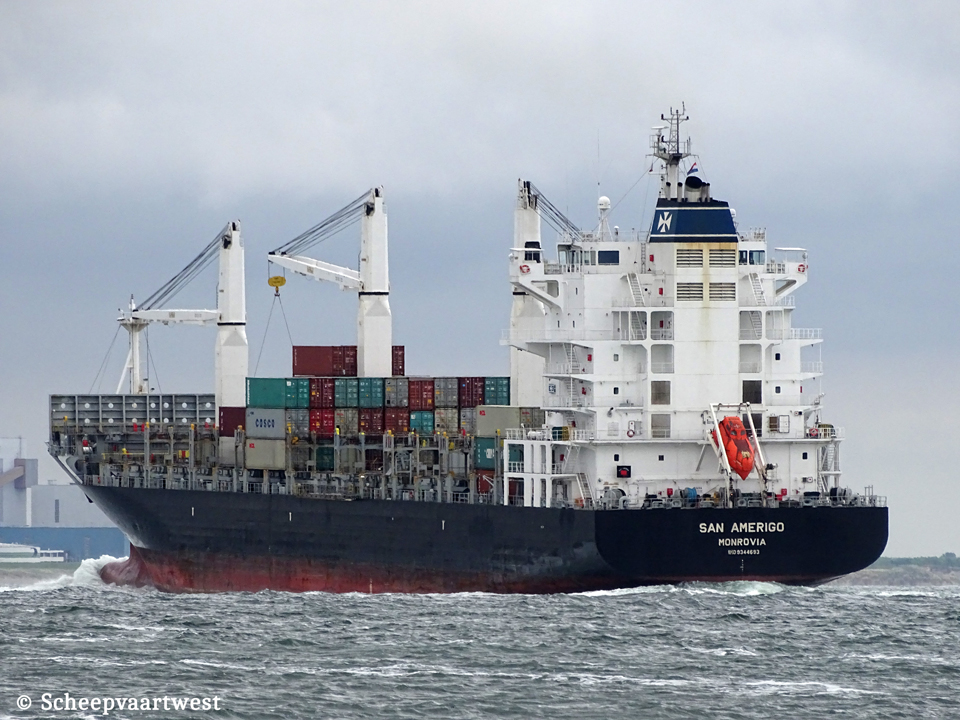

San Amerigo IMO 9344693 03   San Amerigo IMO 9344693 04   San Amerigo IMO 9344693 01
Westerschelde 19/01/17   Westerschelde 19/01/17   Malaga, Spain 16/12/20


Name

SAN AMERIGO

Type

Cellular containership

IMO-number

9344693

Call sign

A8OK6

Flag

Liberia

Port of registry

Monrovia

GT

22.914 t

DWT

Summer: 28.186,9 t

NT

9.277 t

Number of 20ft containers

On deck: 1.083 (6 tiers)

In hold: 736

Total: 1.819

Container capacity 14t

1.293

Reefer plugs

On deck: 265

In hold: 197

Total: 462

Length

186,34 m overall

175,00 m between perpendiculars

Breadth

27,65 m extreme

Draught

Summer: 11,30 m

Freeboard

5.820 mm

Depth

17,10 m

Speed

21,0 knots

Built

2008

Keel laid

10/09/2007

Launch date

20/11/2007

Date of completion

04/01/2008

Builder

Hyundai Mipo Dockyard Co., Ltd.

South Kotra

Yard number

4007

Hull material

Shipbuilding steel (standard)

Hull type

Single hull double bottom, continuous from peak to peak bulkhead

Watertight bulkheads

8

Continuous decks

1

Main engine

1x Hyundai/MAN-B&W 6L70MC-C - 2 stroke 6 cylinder 700 x 2.360 mm combustion engine 19.620 kW / 26.675 hp at 108,0 rpm

Manufacturer: Hyundai Heavy Industries Co., Ltd.

Propellers

1x Fixed pitch propeller

Boilers

1x Steam boiler, oil fired / exhaust gas heated - 9,0 bar

Heating surface: 21,0 m²

Heating surface: 630,0 m²

Manufacturer: Alfa Laval Qingdao Ltd.

Generators

4x Hyundai/HimSen 7H25/33 main diesel generatorsets each 1.570 kW / 2.093,3 kVA

Emergency generator

1x Cummins 6CTA8 3D(M) diesel generatorset 187,5 kVA

Batteries

1x Battery for UPS navigation 300 Ah

1x Battery for UPS radio 200 Ah

Compressed air receivers

2x Receivers each 7.000 litres - 30,0 bar

1x Receiver 300 litres - 30,0 bar

1x Receiver 250 litres - 7,0 bar

Bow thruster

1x Transverse thruster 1.000 kW

Number of holds

4

Hatch type

Steel pontoon type, non-sequential

Tank capacities

Heavy fuel oil abt.: 2.180 m³

Marine diesel oil abt.: 220 m³

Fresh water abt.: 200 m³

Ballast water abt.: 8.800 m³

Anchor equipment

3x Anchors weight each 8.700 kg

Length: 632,50 m

Diameter: 73 mm

Cargo gear

3x Electro hydraulic deck cranes - SWL 45,0 t each

Crew size

27

ISM & commercial manager

Goldenport Shipmanagement Ltd.

41, Athinas Avenue, Vouliagmeni, 166 71

Athens

Greece

Registered owner

Avra Marine Amerigo Limited

Care of Goldenport Shipmanagement Ltd.

41, Athinas Avenue, Vouliagmeni, 166 71

Athens

Greece

Latest data adjustment

19 February 2023
