| Westerschelde 01 May 2016 |
|
Name |

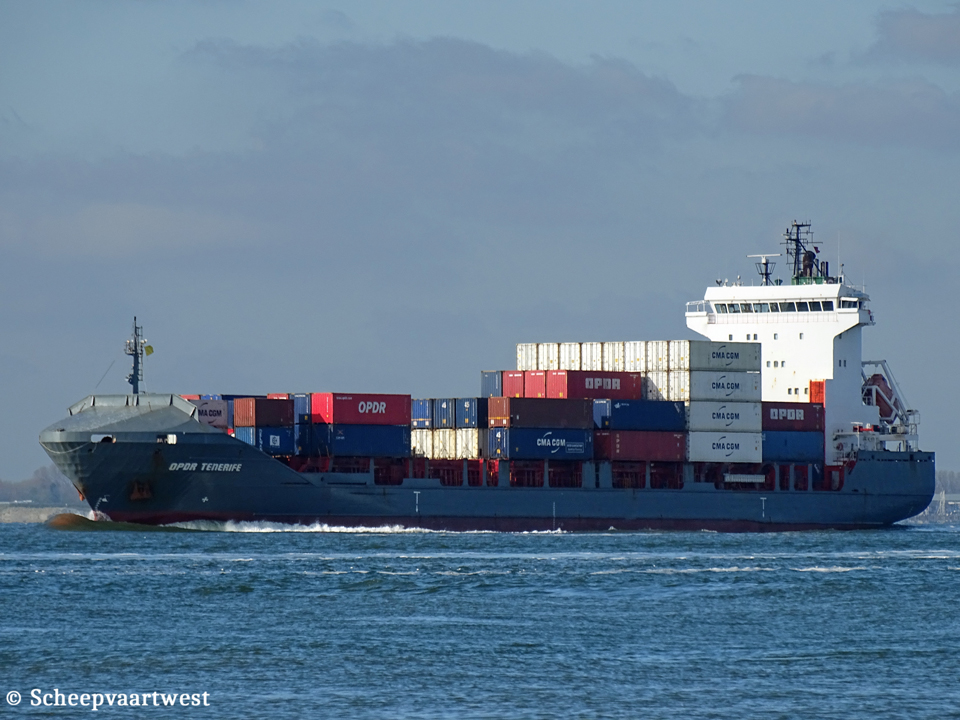

OPDR TENERIFE |
|
Previous names |
Build as: 2002 OPDR Tenerife 2002 - 2008 Focs Tenerife |
|
Type |
Containership |
|
IMO-number |
9216846 |
|
Call sign |
5BEM3 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
Previous flags |
2002 - 2011 Spain, Canary Islands - Call sign: EBWL |
|
GT |
7.360 t |
|
DWT |
8.461 t |
|
NT |
3.085 t |
|
Number of 20ft containers |
694 |
|
Container capacity 14t |
440 |
|
Reefer sockets |
On deck: 81 In hold: 34 Total: 115 |
|
Length |
128,00 m |
|
Breadth |
21,00 m |
|
Draught |
Summer: 7,40 m |
|
Forecastle |
8,53 m |
|
Poop |
9,87 m |
|
Depth |
10,80 m |
|
Speed |
Max: 16,5 knots |
|
Built |
2002 |
|
Keel laid |
30/03/2001 |
|
Launch date |
30/10/2001 |
|
Date of completion |
24/09/2002 |
|
Builder |
Fujian Mawei Shipbuilding Ltd. Fuzhou China |
|
Yard number |
VMW437-2 |
|
Hull material |
Steel |
|
Hull type |
Single hull double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
5 |
|
Main engine |
1x MaK 7M43C - 4 strtoke 7 cylinder 430 x 610 mm combustion engine 6.300 kW / 8.568 bhp at 500 rpm Builder: Caterpillar Motoren GmbH & Co. KG |
|
Propellers |
1x Controllable pitch propeller - aft at 135,0 rpm |
|
Boilers |
1x Thermal oil heater, oil fired - 10,0 bar Heating surface: 35,8 m² 1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 87,2 m² Builder: PWT Prozesswärmeträgertechnik GmbH |
|
Shaft generator |
1x 1.250 kVA / 1.000 kW |
|
Generators |
3x Main diesel generatorsets each 563 kVA |
|
Emergency generator |
1x Diesel generatorset 156 kVA |
|
Batteries |
1x Battery for automation 120 Ah 1x Battery for UPS radio 170 Ah 1x Battery for start emergency engine 80 Ah |
|
Compressed air receivers |
2x Receivers each 500 litres - 30,0 bar 1x Receiver 20 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster 600 kW, forward |
|
Number of holds |
4 |
|
Cargo hold capacity |
Grain: 6.410 m³ |
|
Number of hatches |
4 |
|
Tank capacities |
Fuel: 672 m³ Water ballast: 3.390 m³ |
|
Anchor equipment |
3x Anchors weight each 4.590 kg Chain length: 550.00 m |
|
Cargo gear |
Gearless |
|
Crew size |
19 |
|
Manager |
Bernhard Schulte Shipmanagement (Deutschland) GmbH & Co KG |
|
Registered owner |
Oldenburg-Portugiesische Dampfschiffs-Reederei GmbH & Co. KG Hamburg Germany |
|
Previous names & owners |
|
|
Renamed |
2016 - 2017 Tenerife Cyprus, Limassol - Call sign: 5BEM3 2017 - 2019 Hai Su 1 China, Hong Kong - Call sign: VRQQ2 Owner: Hengan Shipping Co., Ltd. |
|
Scrapped |
11/12/2019 Beached at Chittagong under new name Hai |
|
Latest data adjustment |
10 December 2023 |
