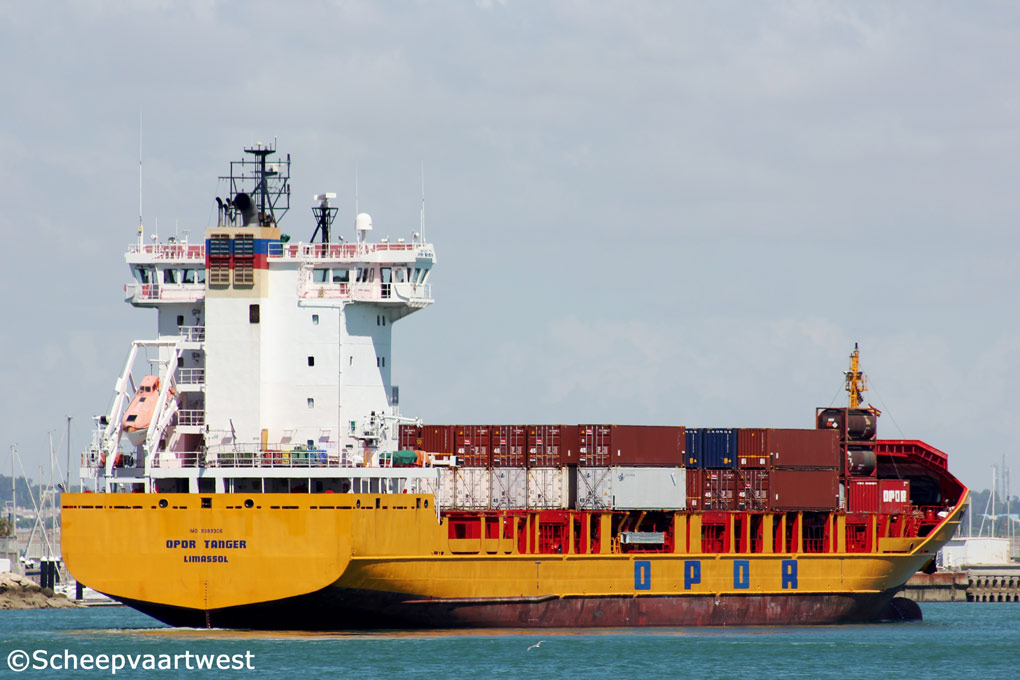

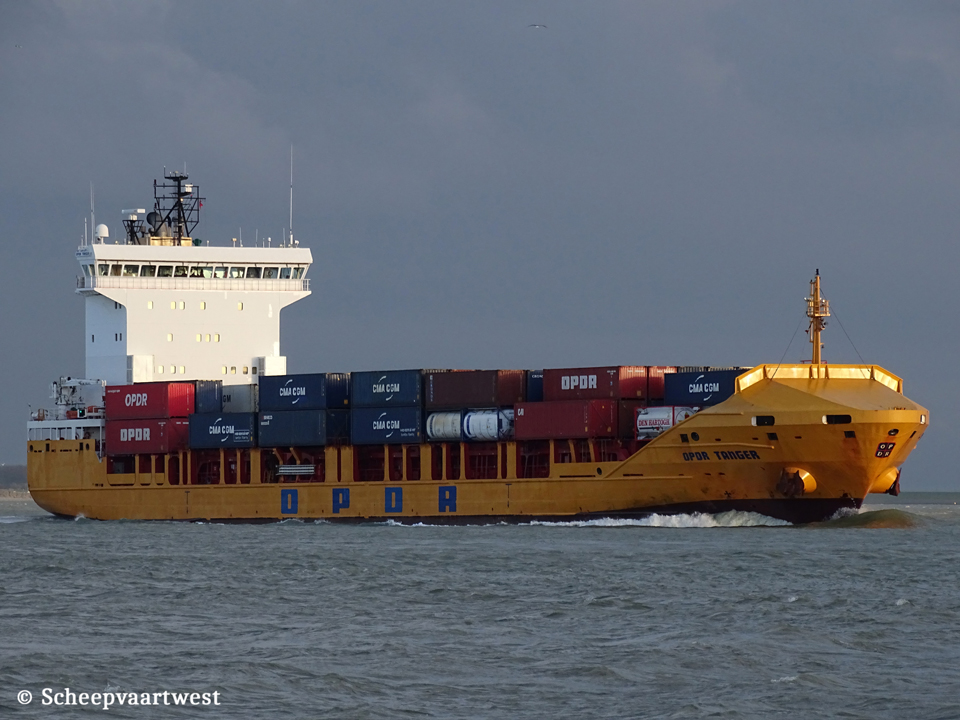

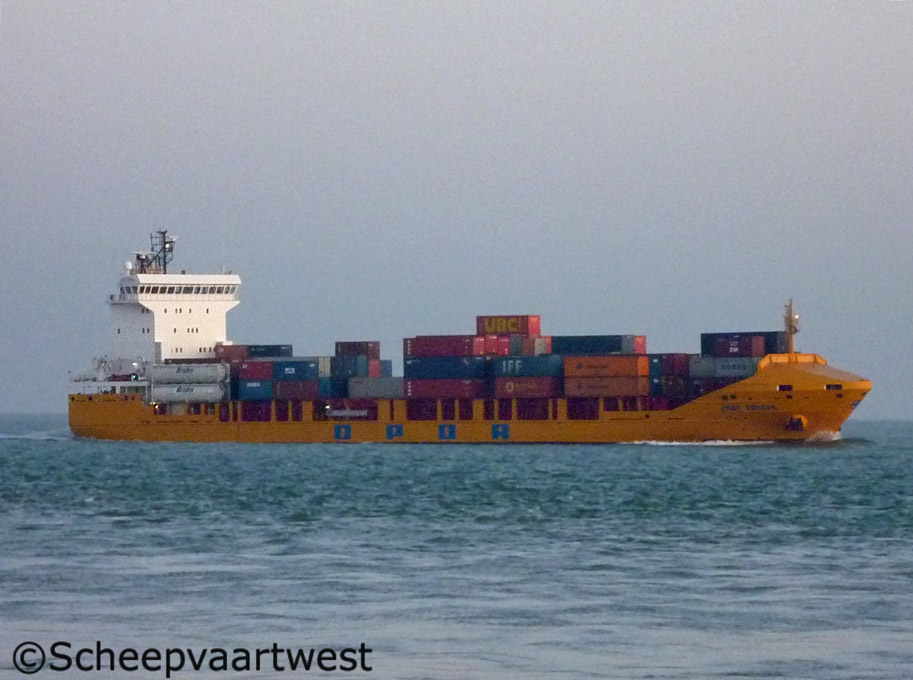

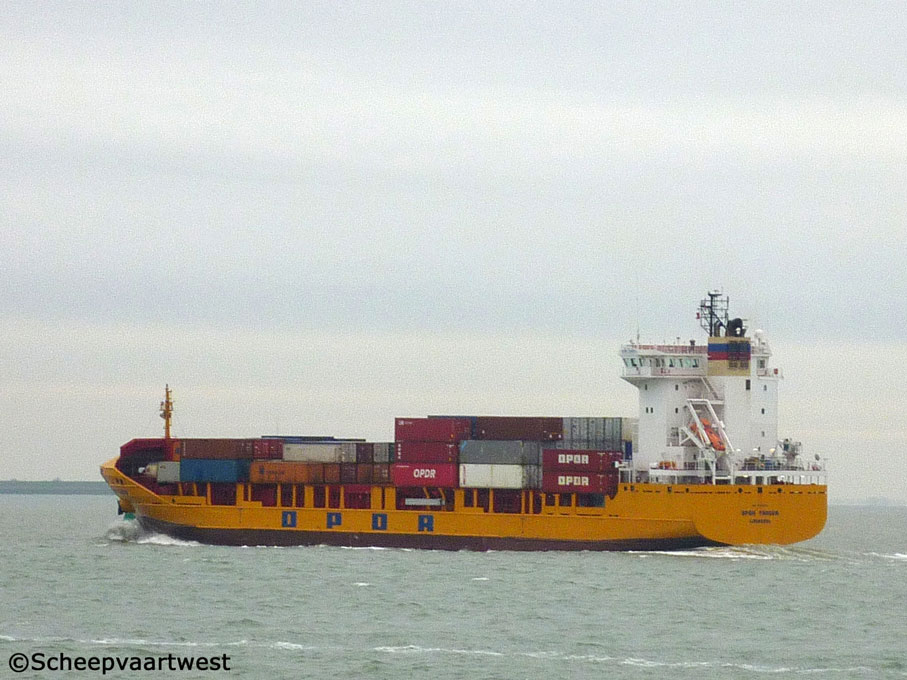

| Westerschelde 18 ovember 2011 |
 |
 |
 |
||

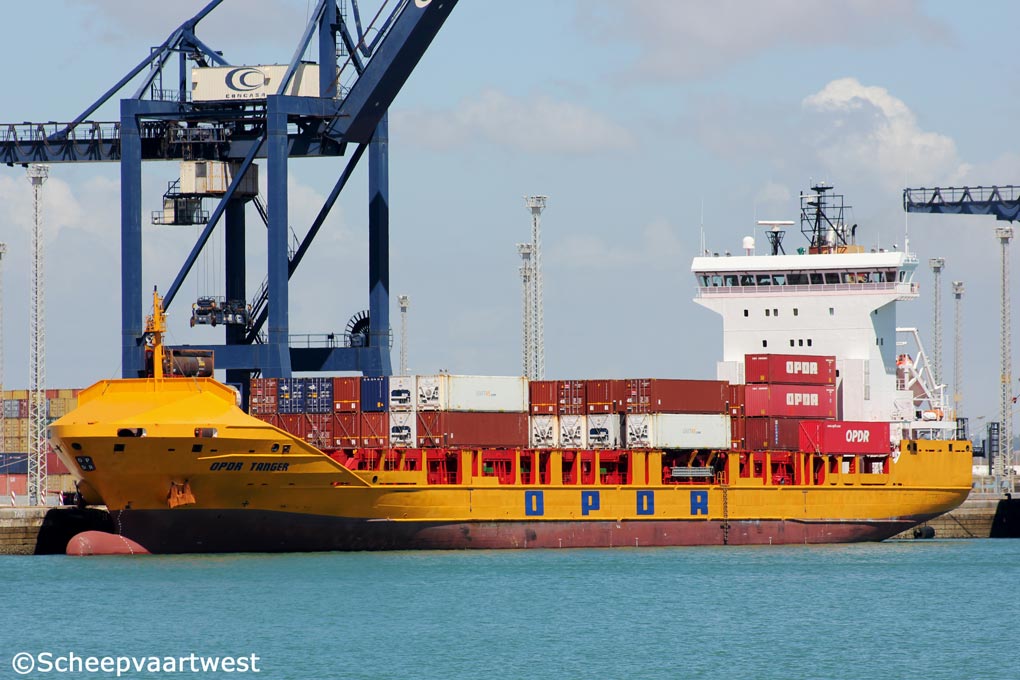

| Westerschelde 25/01/14 | Cadiz, Spain 12/09/14 | Cadiz, Spain 12/09/14 |
|
Name |
OPDR TANGER |
|
Type |
Containership |
|
IMO-number |
9389306 |
|
Call sign |
5BAH2 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
GT |
7.545 t |
|
DWT |
8.168 t |
|
NT |
3.165 t |
|
Number of 20ft containers |
698 |
|
Container capacity 14t |
437 |
|
Reefer point |
On deck: 86 In Hold: 34 Total: 120 |
|
Length |
129,59 m overall 120,34 m between perpendiculars 119,65 m registered |
|
Breadth |
20,60 m registered |
|
Draught |
7,40 m |
|
Forecastle |
8,81 m |
|
Poop |
10,00 m |
|
Freeboard |
3.412 mm |
|
Depth |
10,80 m moulded |
|
Speed |
16,5 knots |
|
Built |
2008 |
|
Keel laid |
24.09.2007 |
|
Launch date |
10.12.2007 |
|
Date of completion |
04.02.2008 |
|
Builder |
Fujian Mawei Shipbuilding Ltd. |
|
Yard number |
VMW437-29 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom |
|
Main engine |
1x MaK 7 M43C - 4 stroke 7 cylinder 430 x 610 mm diesel engine - 7.000 kW at 500 rpm Year of manufacture: 2007 Manufacturer: Caterpillar Motoren GmbH & Co. KG |
|
Propellers |
1x Controllable pitch propeller - aft at 148 rpm |
|
Boilers |
1x Thermal oil heater, oil fired - 10,0 bar Heating surface: 49,5 m² 1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 141,7 m² Year of manufacture: 2007 Manufacturer: GESAB Göteborgs Energy Systems AB |
|
Electric installations |
3x Plant 450 V - 620 kVA 1x Plant 450 V - 1.250 kVA 1x Plant 450 V - 220 kVA 1x Plant 24 V - 56 Ah 1x Plant 24 V - 143 Ah 1x Plant 24 V - 200 Ah |
|
Shaft generator |
1x 1.000 kW / 1.250 kVA |
|
Generators |
3x Main diesel generatorsets each 496 kW / 620 kVA |
|
Emergency generator |
1x Diesel generatorset 220 kVA |
|
Batteries |
1x Battery for automation 200 Ah 1x Battery for UPS radio 143 Ah 1x Battery for start emergency engine 56 Ah |
|
Compressed air receivers |
2x Receivers each 500 litres - 30,0 bar 1x Receiver 20 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster - 600 kW forward |
|
Tank capacities |
Fuel: 672 m³ Ballast water: 3.390 m³ |
|
Anchor Equipment |
3x Anchors weight each 4.590 kg Chain length: 550,00 m |
|
Cargo gear |
None |
|
Crew size |
14 |
|
Manager |
Bernhard Schulte Shipmanagement (Deutschland) GmbH & Co. KG |
|
Operator |
OPDR - Oldenburg-Porugiesische Dampfchiffs Rhederei |
|
Owner |
Oldenburg-Portugiesische Dampfschiffs-Rhederei GmbH & Co. KG Kajen 10 |
|
Latest data adjustment |
28 October 2014 |
