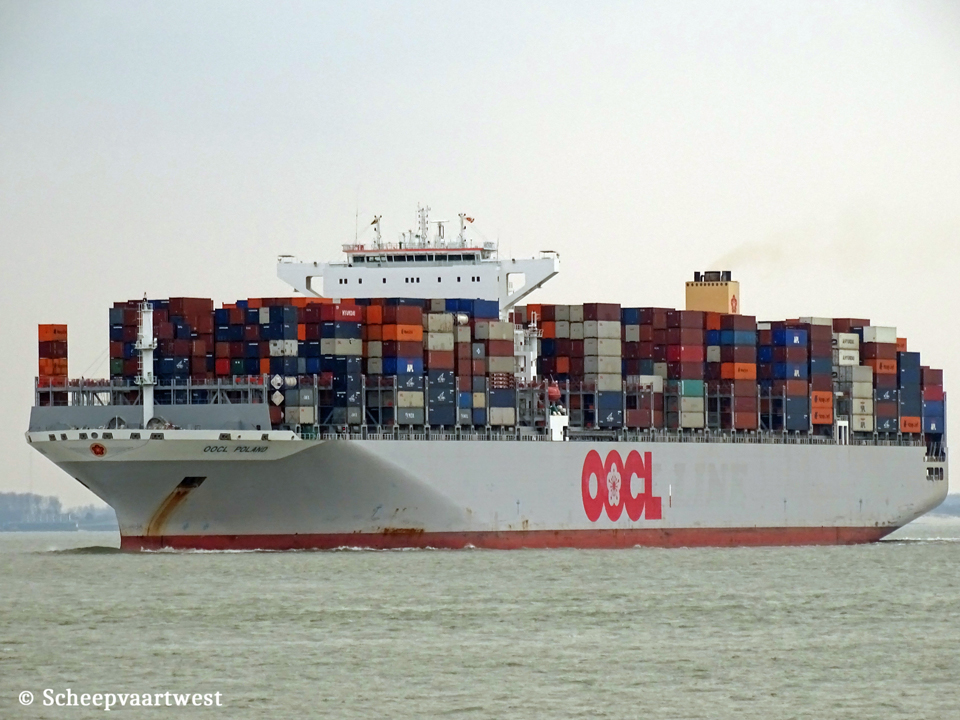

| Westerschelde 26 February 2016 |
|
Name |
OOCL POLAND |
|
Previous names |
2013 - 2016 NYK Helios |
|
Type |
Cellular containership - Carriage of dangerous goods |
|
IMO-number |
9622588 |
|
Call sign |
VRLJ2 |
|
Flag |
Hong Kong - China |
|
Port of registry |
Hong Kong |
|
GT |
141.003 t |
|
DWT |
Summer: 144.342 t |
|
NT |
69.987 t Panama: 144.368 t |
|
Displacement |
Summer: 186.922,2 t |
|
Light ship |
42.580,2 t |
|
Number of 20ft containers |
13.208 |
|
Container capacity 14t |
8.080 |
|
Reefer capacity |
1.150 |
|
Length |
366,47 m overall 344,93 m between perpendiculars |
|
Breadth |
48,20 m moulded |
|
Draught |
Summer: 15,52 m |
|
Freeboard |
7.424 mm |
|
Depth |
29,80 m moulded |
|
Speed |
Max: 23,5 knots |
|
Built |
2013 |
|
Keel laid |
02/07/2012 |
|
Launch date |
19/09/2012 |
|
Date of completion |
22/01/2013 |
|
Builder |
Samsung Heavy Industries Co., Ltd. 80 Jangpyeong 3-Ro Geoje-Si,Gyeongsangnam-Do South Korea |
|
Yard number |
2002 |
|
Hull material |
Steel |
|
Watertight bulkheads |
11 |
|
Main engine |
1x Hyundai/MAN-B&W 12S90ME-C9.2 - 2 stroke 12 cylinder 900 x 3.260 mm combustion engine Mcr 54.200 kW / 73.691 hp at 77,2 rpm Manufacturer: Hyundai Engine Mfg. Co.,Ltd. |
|
Propellers |
1x Fixed propeller Manufacturer: Nakashima Propeller Co., Ltd. |
|
Boilers |
1x Auxiliary boiler 1x Exhaust gas boiler - 10,0 bar Manufacturer: Kangrim Heavy Industries Co. |
|
Shaft generator |
1x 3.300 kW Manufacturer: Nishishiba Electric Co., Ltd. |
|
Generators |
4x Main combustion generatorsets each 3.650 kW Manufacturer: Nishishiba Electric Co., Ltd. |
|
Bow thruster |
2x Each 1.800 kW |
|
Number of holds |
7 |
|
Number of tanks |
Ballast: 23 Lubricating oil: 16 Fuel oil: 12 Waste water: 7 Diesel oil: 6 Sludge: 5 Fresh water: 4 Chain: 2 |
|
Tank capacities 100% |
Diesel oil: 1.158,3 m³ Fresh water: 870,5 m³ Fuel oil: 9.695,8 m³ Lube oil: 599,6 m³ Ballast: 44.306,0 m³ |
|
Lifting equipment |
2x Engine room crane - SWL 12,5 t 1x Monorail crane - SWL 13,0 t 1x Provision crane port - SWL 4,0 t 1x Provision crane starboard - SWL 4,0 t Manufacturer: Oriental Prec & Eng'g Co. |
|
Cargo gear |
Gearless |
|
Crew |
30 |
|
Manager |
OOCL - Orient Overseas Container Line 33rd Floor, Harbour Centre, 25 Harbour Road, Wan Chai Hong Kong China |
|
Registered owner |
Yamasa Sangyo Shipholding 2002 S.A. c/o Orient Overseas Container 33rd Floor, Harbour Centre, 25, Harbour Road, Wan Chai Hong Kong - China |
|
Latest data adjustment |
15 November 2023 |
