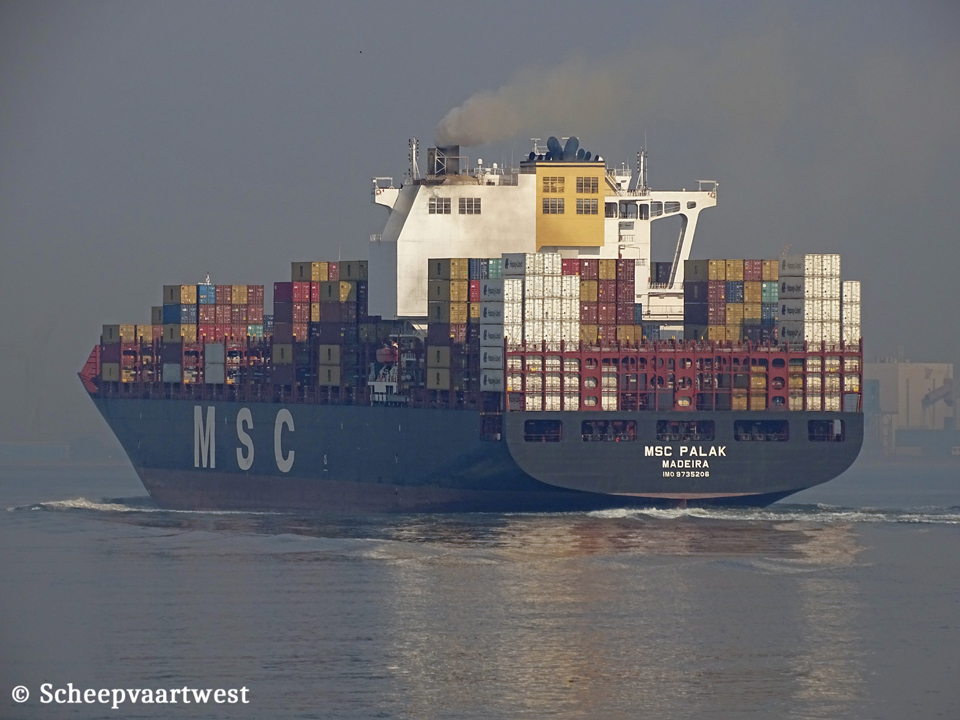

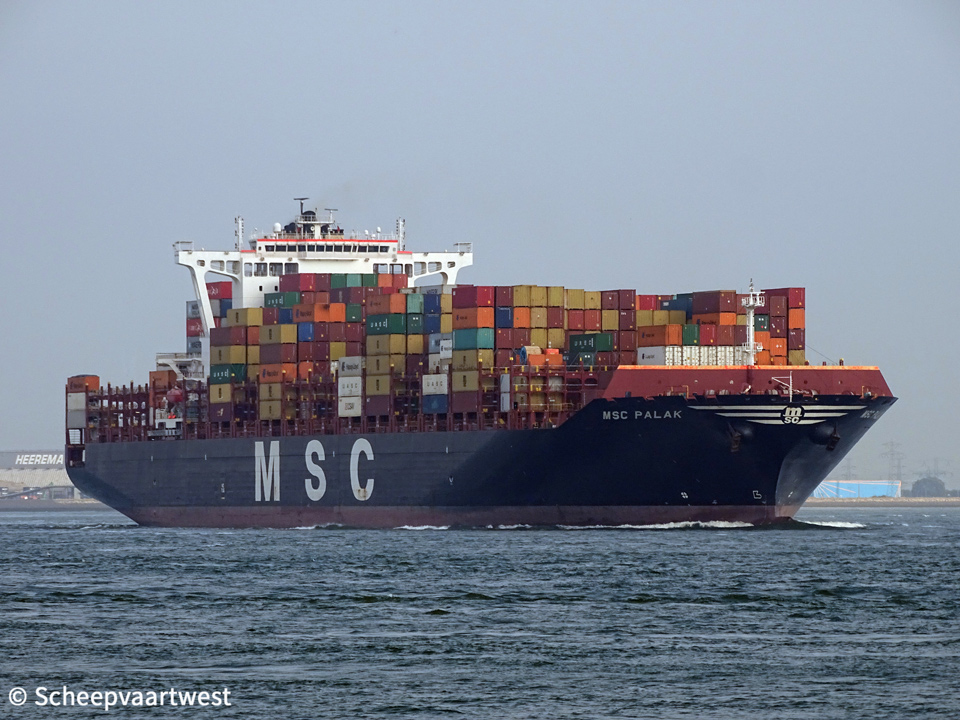

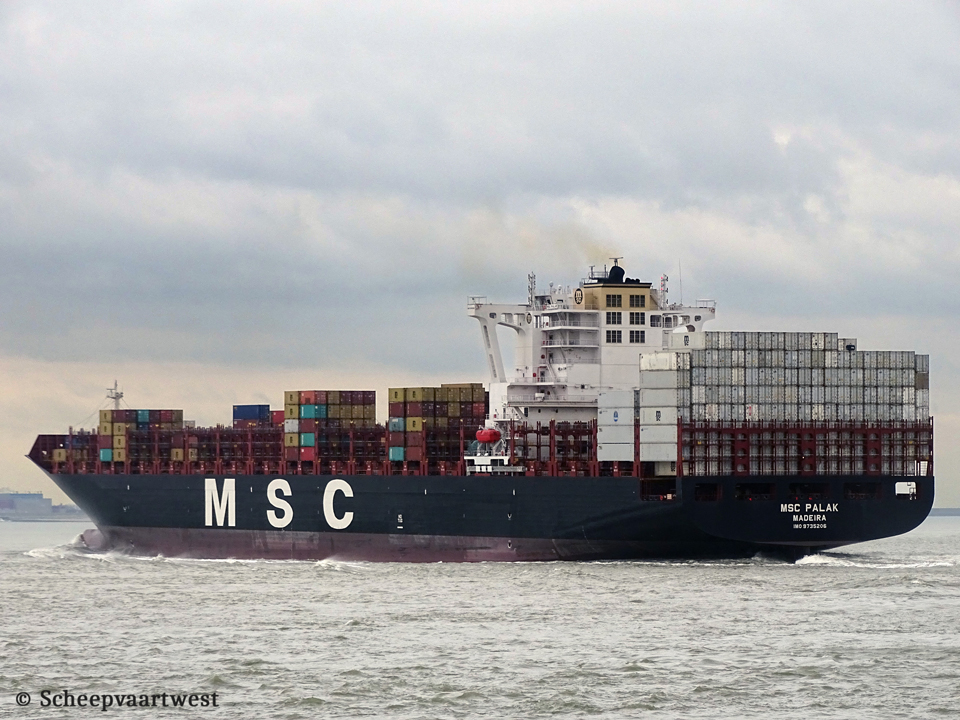

MSC Palak 01

Westerschelde 06 October 2018



Name

MSC PALAK

Type

Cellular containership

IMO-number

9735206

Call sign

CQZL

Flag

Portugal

Port of registry

Madeira

Previous flags

02/2016 - 05/2016 Republic of Panama, Panama City - Call sign: 3FHI6

GT

94.816 t

DWT

109.801,8 t

NT

51.562 t

Number of 20ft containers

9.400

Container capacity 14t

8.700

Reefer capacity

700

Length

299,90 m overall

286,30 m between perpendiculars

Breadth

48,33 m extreme

48,20 m moulded

Draught

Max: 14,50 m

Depth

24,80 m

Speed

Max: 24,0 knots

Built

2016

Keel laid

01/08/2014

Launch date

29/10/2015

Date of completion

30/05/2016

Builder

Jinhai Intelligent Manufacturing Co., Ltd.

1 Jinhai Avenue Changtu Town Daishan County

Zhoushan, 316291

China

Yard number

J0229

Hull material

Steel

Continuous decks

1

Main engine

1x MAN-B&W 9S90ME-C10 - 2 stroke single acting 9 cylinder 900 x 3.260 mm combustion engine

Mcr: 47.600 kW / 64.717 hp at 84,0 rpm

Propellers

1x Fixed pitch propeller - aft at 84,0 rpm

Boilers

1x Auxiliary boiler, exhaust gas heated

1x Auxiliary boiler, oil/gas fired

Generators

3x MAN 9L32/40 - 4 stroke 9 cylinder 320 x 400 mm diesel engine each 4.500 kW coupled with generators each 4.400 kW

2x MAN 6L32/40 - 4 stroke 6 cylinder 320 x 400 mm diesel engine each 3.000 kW coupled with generators each 2.900 kW

Emergency generator

1x MAN D2842LE201 diesel generatorset

Bow thruster

1x Tunnel thruster 3.050 kW / 4.147 bhp, forward

Tank capacities

Ballast: 31.858,6 m³

Anchor equipment

Length: 770,00 m

Diameter: 111 mm

Cargo gear

Gearless

Crew size

17

Manager

MSC Shipmanagement Limited

Operator

MSC Mediterranean Shipping Co.

chemin Rieu, 12-14

1208 Geneva

Switzerland

Registered owner

Avenue 7 Holding Ltd.

Latest data adjustment

12 March 2020
