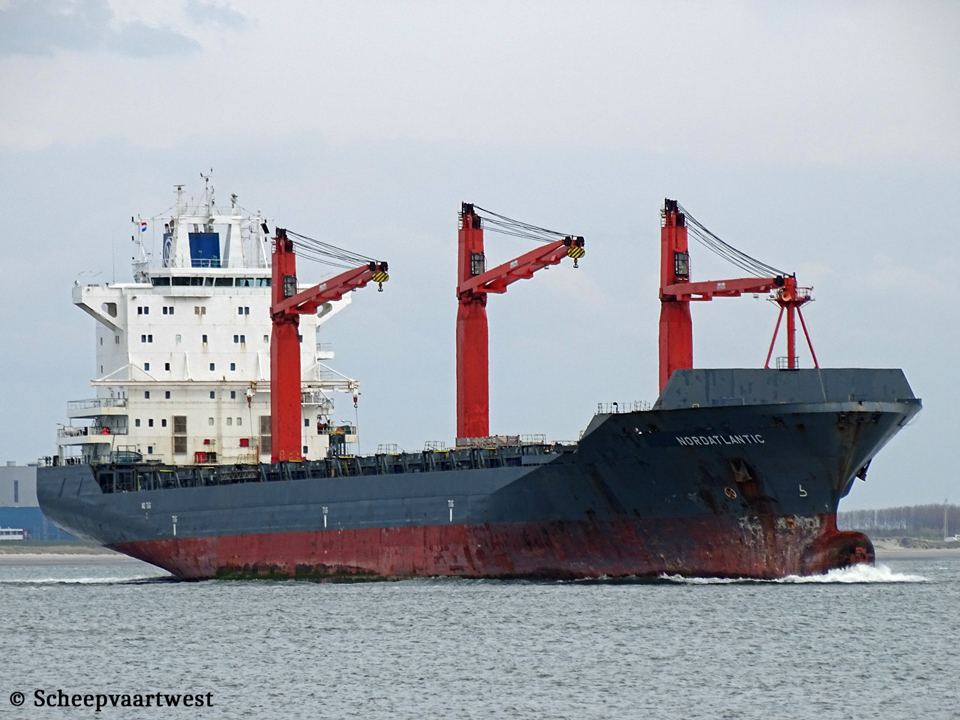

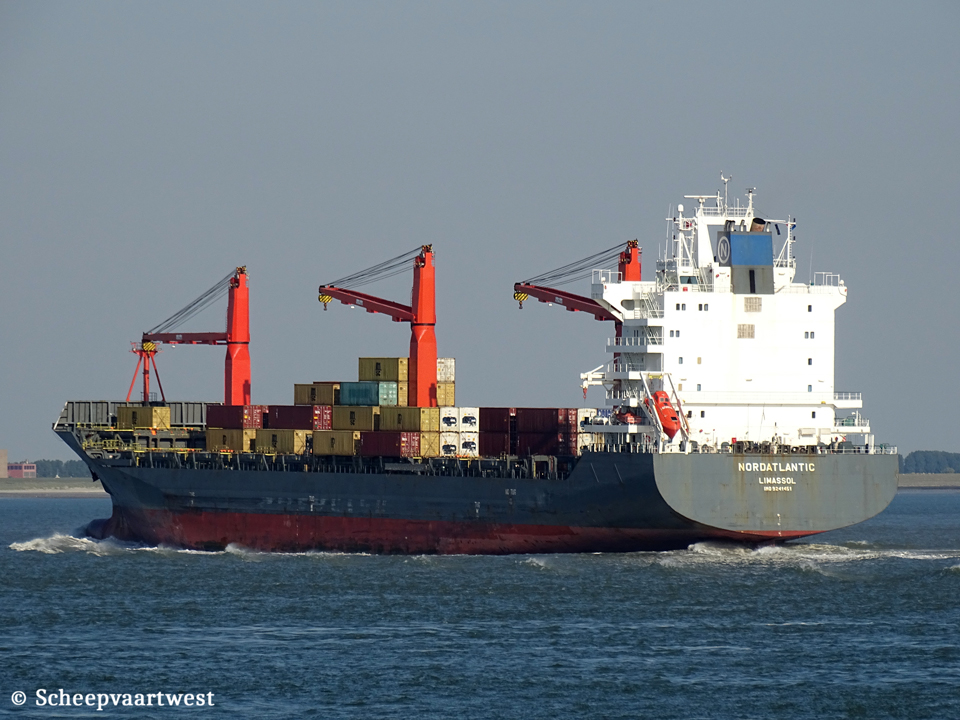

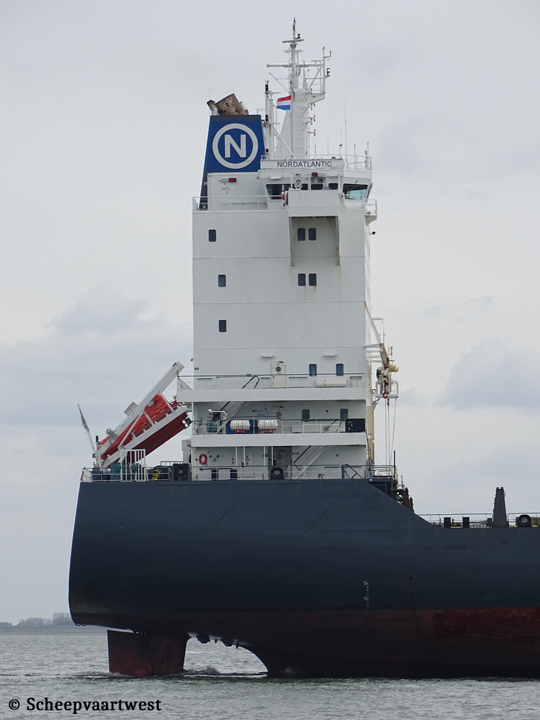

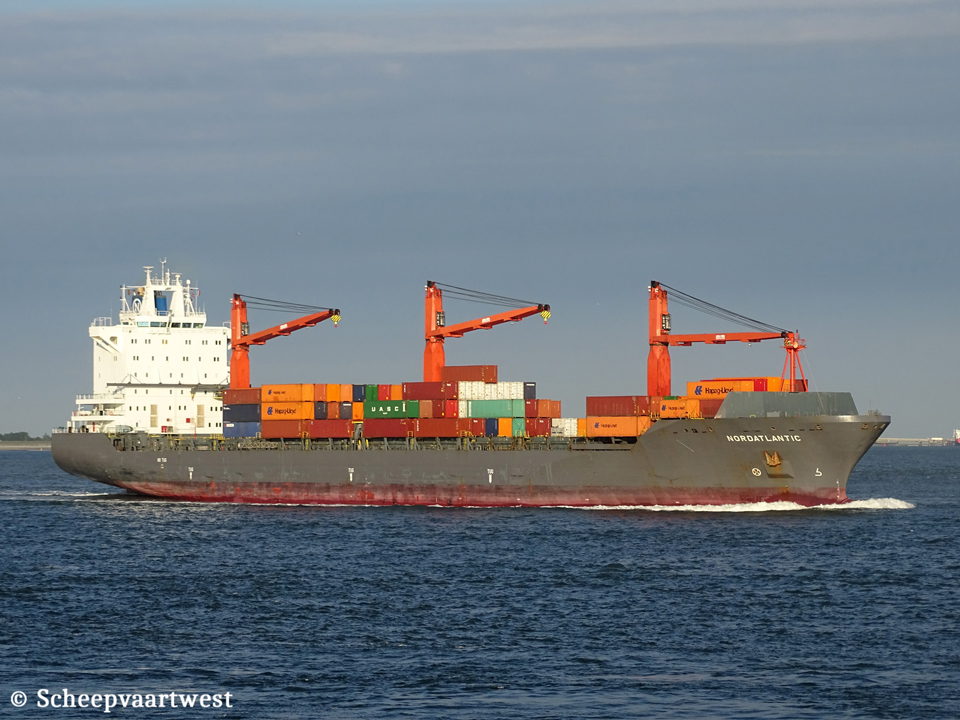

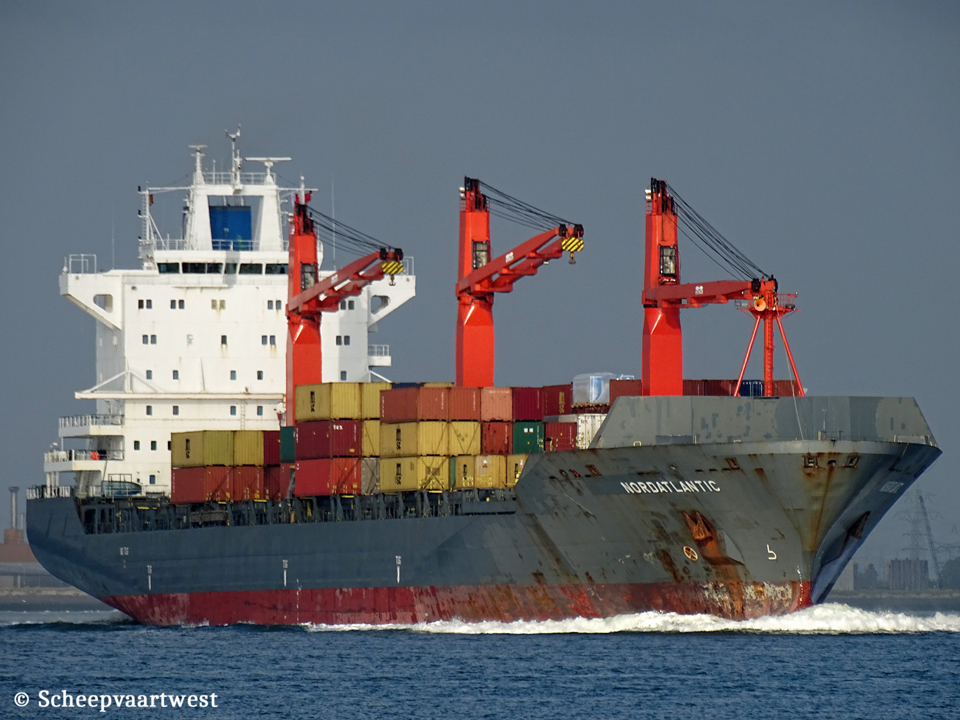

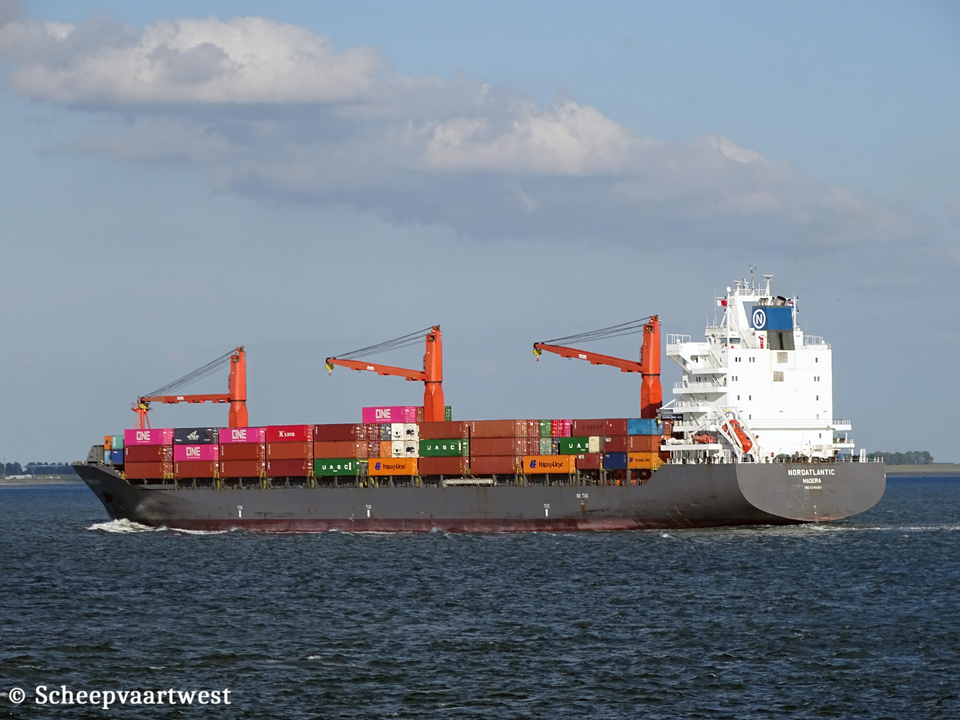

Nordatlantic IMO 9241451 01

Westerschelde 02 July 2019


Nordatlantic IMO 9241451 02   Nordatlantic IMO 9241451 03   Nordatlantic IMO 9241451 04   Nordatlantic IMO 9241451 05   Nordatlantic IMO 9241451 06
Westerschelde 02/07/19 Westerschelde 01/07/19   Westerschelde 16/08/16   Westerschelde 30/04/16   WS 30/04/16


Name

NORDATLANTIC

Previous names

2003 Launch as: Nordatlantic

2003 - 07/2004 Calapalos

07/2004 - 08/2005 Nordatlantic

08/2005 - 06/2010 Libra Niertoi

06/2010 - 05/2011 Nordatlantic

05/2011 - 04/2012 Atlantic

04/2012 - 2018 Niledutch Impala

Type

Cellular containership

IMO-number

9241451

Call sign

CQAH3

Flag

Portugal

Port of registry

Madeira

Previous flags

Cyprus, Limassol - Call sign: P3MU9

GT

25.407 t

DWT

33.853 t

NT

12.733 t

Number of 20ft containers

On deck: 1.486

In hold: 992

Total: 2.478

Number of 40ft containers

On deck: 706 + 74 TEU

In hold: 482 + 28 TEU

Total: 1.188 + 102 TEU

Container capacity 14t

1.899

Reefer capacity

400 whereof 100 in holds / 300 on deck

Length

207,30 m overall

195,40 m between perpendiculars

Breadth

29,80 m moulded

Draught

Summer: 11,40 m

Forecastle

27,44 m

Poop

14,69 m

Depth

16,40 m moulded

Speed

Max: 21,0 knots

Economic: 12,5 knots

Built

2003

Keel laid

04/11/2002

Launch date

29/03/2003

Date of completion

16/05/2003

Builder

Wadan Yards MTW GmbH

Wendorfer Weg 5

23966 Wismar

Federal Republic of Germany

Yard number

016

Hull material

Shipbuilding steel (higher tensile)

Hull type

Single hull

Double bottom, continuous from peak to peak bulkhead

Watertight bulkheads

7

Continuous decks

1

Main engine

1x Wärtsilä 7RTA72U-B - 2 stroke 7 cylinder 720 x 2.500 mm combustion engine 21.560 kW - 29.313 hp at 99,0 rpm

Year of manufacture: 2002

Manufacturer: Wartsila Italia S.p.A.

Bagnoli della Rosandra, 334

34018 San Dorligo della Valle

Italy

Propellers

1x Solid propeller (keyless) aft at 99,0 rpm

Boilers

1x Steam boiler, oil fired - 9,0 bar

Heating surface: 18,0 m²

1x Steam boiler, exhaust gas heated - 9,0 bar

Heating surface: 262,0 m²

Year of manufacture: 2002

Manufacturer: Alfa Laval Aalborg A/S Marine & Offshore Systems Marine Boilers & Heaters

Gasvaerksvej 24

9100 Aalborg

Kingdom of Denmark

Electric installations

3x Plants each 440/220 V - 1.880 kVA

1x Plant 440 V - 220 kVA

2x Plants each 24 V - 120 Ah

2x Plants each 24 V - 130 Ah

Generators

3x Wärtsilä 9L20C main diesel generatorsets each 1.880 kVA

Emergency generator

1x Diesel generatorset 220 kVA

Compressed air receivers

2x Receivers each 6.500 litres - 30,0 bar

1x Receiver 250 litres - 30,0 bar

1x Receiver 30 litres - 30,0 bar

Bow thruster

1x Transverse thruster BRUNVOLL - 1.100 kW, forward

Number of holds

5

Hold ventilation

2x Air changes per hour, mechanical and natural

Number of hatches

10

Hatch 1: 12,64 x 15,36 m

Hatch 2: 12,64 x 20,36 m

Hatches 3-10: 12,64 x 25,35 m

Hatch type

Mac Gregor ponto0n type hatch covers, weathertight

Tank capacities

Fuel oil: 2.443 m³

MDO: 171 m³

Ballast water: 9.186 m³

Fresh water: 200 m³

Lub oil: 127 m³

Anchor equipment

3x Anchors weight each 9.300 kg

Chain length: 660,00 m

Diameter: 76 mm

Cargo gear

3x Cranes - SWL 45,0 t each

Crew size

24

Manager

Reederei Nord GmbH

Astraturm, Zirkusweg 2

20359 Hamburg

Germany

Registered owner

Schifffahrtsgesellschaft MS "ATLANTIC" mbH & Co. KG

Renamed

2022 MSC Sarya III

Liberia, Monrovia - Call sign: 5LEE9

Reg. Owner: Nordatlantic Shipping & Trdg

Operator: MSC

Latest data adjustment

04 August 2023
