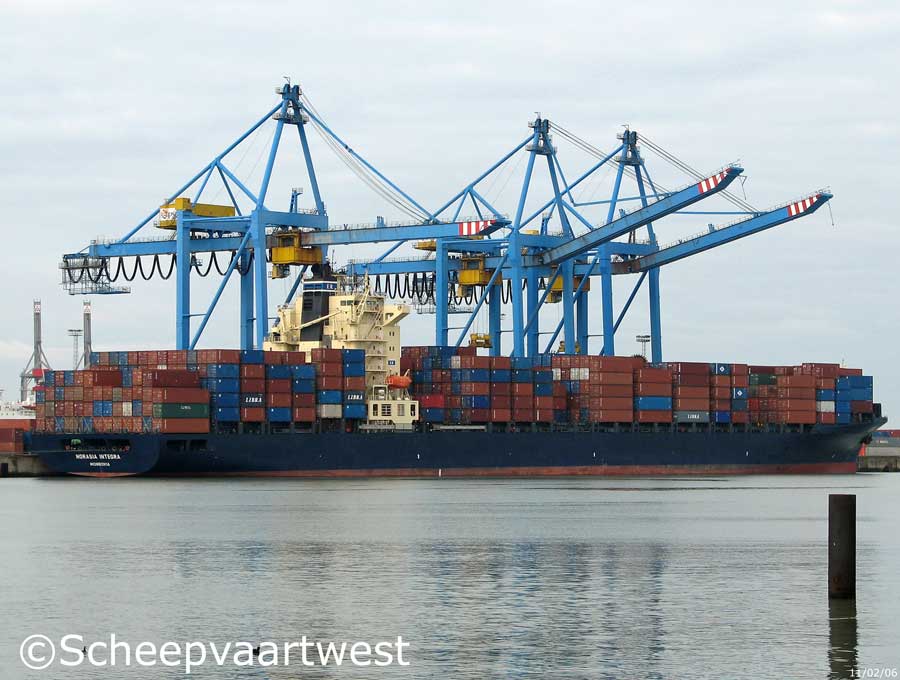

| Zeebrugge 11 February 2006 |
|
Name |
NORASIA INTEGRA |
|
Previous name |
2004-2004 E.R. Auckland |
|
Type |
Cellular containership |
|
IMO-number |
9256212 |
|
Call sign |
A8DZ2 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
41.855 t |
|
DWT |
53.610 t |
|
NT |
25.310 t |
|
Number of 20ft containers |
4.000 |
|
Container capacity at 14 |
2.810 |
|
Reefer capacity |
600 |
|
Length |
264,20 m overall 249,94 m registered |
|
Breadth |
32,20 m registered |
|
Draught |
Summer: 12,75 m |
|
Forecastle |
13.60 m |
|
Freeboard |
3.763 mm |
|
Depth |
16,50 m moulded |
|
Speed |
23,5 knots |
|
Built |
2004 |
|
Keel laid |
29.09.2003 |
|
Launch date |
28.12.2003 |
|
Date of completion |
10.03.2004 |
|
Builder |
Samho Heavy Industries Co., Ltd. (SAMHO Shipyard) |
|
Yard number |
S178 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
9 |
|
Continuous decks |
2 |
|
Main engine |
1x Hyundai-B&W 8K90MC-C - 8 cylinder 900 x 2.300 mm engine - 36.560 kW / 49.680 bhp Year of manufacture: 2003 Manufacturer: Hyundai Heavy Industries Co., Ltd. |
|
Propeller |
1x Solid propeller - aft |
|
Boilers |
1x Steam boiler, oil fired - 10,0 bar Heating surface: 29,0 m² 1x Exhaust gas heated - 10,0 bar Heating surface: 610,0 m² Year of manufacture: 2003 Manufacturer: Aalborg Industries Ltd. |
|
Electric installations |
1x 450/230 V - 9.975 kVA 1x 450 V - 200 kVA 1x 24 V - 200 Ah 1x 24 V - 200 Ah |
|
Generators |
2x Main diesel generatorsets each 2850 kVA / 2.280 kW 2x Main diesel generatorsets each 2137,5 kVA / 1.710 kW |
|
Emergency generator |
1x Diesel generatorset 200 kVA |
|
Compressed air receivers |
2x Receivers, each 12.500 litres - 32,4 bar 1x Receiver 250 litres - 32,4 bar 1x Receiver 150 litres - 30,0 bar 1x Receiver 200 litres - 7,7 bar |
|
Bow thruster |
1x Transverse thruster - 1.500 kW, forward |
|
Number of holds / hatches |
7 / 15 |
|
Fuel capacity |
5.004 m³ |
|
Anchor equipment |
3x Anchors weight each 12.300 kg Chain length: 687,50 |
|
Manager |
E.R. Schiffahrt GmbH & Cie. KG |
|
Owner |
MS 'E.R. AUCKLAND' Schiffahrts GmbH & Co. KG |
|
Renamed |
2007 YM Colombo |
