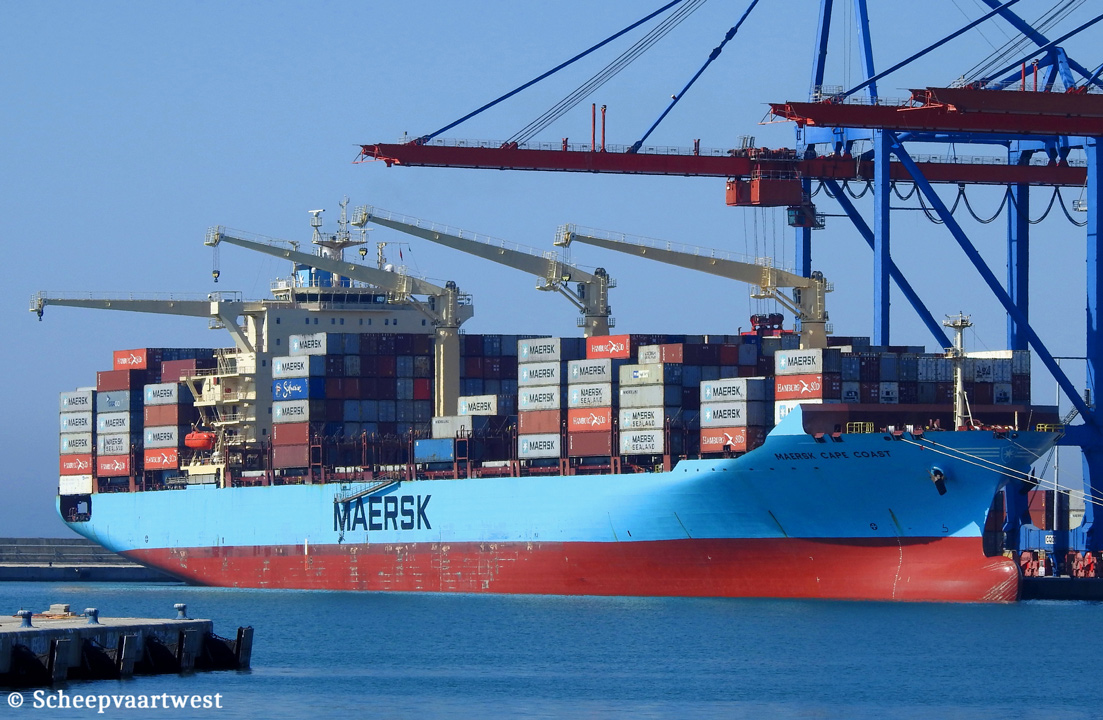

Maersk Cape Coast IMO 9525314 01

Malaga, Spain 06 May 2021



Name

MAERSK CAPE COAST

Type

Cellular containership - Carriage of dangerous goods

IMO-number

9525314

Call sign

9V9407

Flag

Republic of Singapore

Port of registry

Singapore City

GT

50.869 t

DWT

Summer: 65.458,2 t

NT

29.691

Displacement

84.180,8 t

Number of 20ft containers

4.496

Container capacity 14t

3.368

Reefer capacity

150

Length

249,12 m overall

235,00 m between perpendiculars

Breadth

37,40 m moulded

Draught

Summer: 12,50 m

Freeboard

3.364 mm

Depth

22,10 m moulded

Speed

Max: 24,1 knots

Built

2011

Keel laid

25/01/2011

Launch date

01/04/2011

Delivery date

26/05/2011

Builder

Hyundai Heavy Ind. Co., Ltd.

Ulsan

South Korea

Yard number

2341

Hull material

High strength steel

Hull type

Single hull

Main engine

1x HHI/MAN-B&W 6S80ME-C - 6cylinder 800 x 3.450 mm combustion engine 23.880 kW / 31.280 bhp at 73,9 rpm

Manufacturer: HHI Engine & Machinery Div.

Propellers

1x Fixed pitch propeller

Manufacturer: HHI Engine & Machinery Div.

Boilers

1x Fired boiler Mission OS TCI - 9,0 MPa

1x H.P. Exhaust gas boiler Mission XW-TG(HP) - 10,0 MPa

1x L.P. Exhaust gas boiler Mission XW-TG(LP) - 8,0 MPa

Generators

2x Main diesel generatorsets each 2.250 kW

1x Main diesel generatorset 1.650 kW

1x Auxiliary turbo generator 3.100 kW

Manufacturer: HHI Electro Electric System

Tank capacities

Fresh water: 457,70 m³

Lube oil: 260,90 m³

Diesel oil: 279,20 m³

Ballast: 17.274,7 m³

Fuel oil: 5.068,00 m³

Lifting equipment

1x Engine room crane - SWL 10,0 t

1x Mono rail crane - SWL 10,0 t

Manufacturer: Oriental Prec & Eng'g Co.

Cargo gear

4x Deck cranes - SWL 50,0 t each

Manufacturer: Liebherr - Sunderland Works

Crew

20

Manager

Maersk A/S

Operator

Maersk Line

Esplanaden 50

1098 Copenhagen

Denmark

Owner

Moller Singapore AP Pte. Ltd.

Registered owner

Fleet Operations - Maersk Line Fleet Management

Latest data adjustment

27 May 2021
