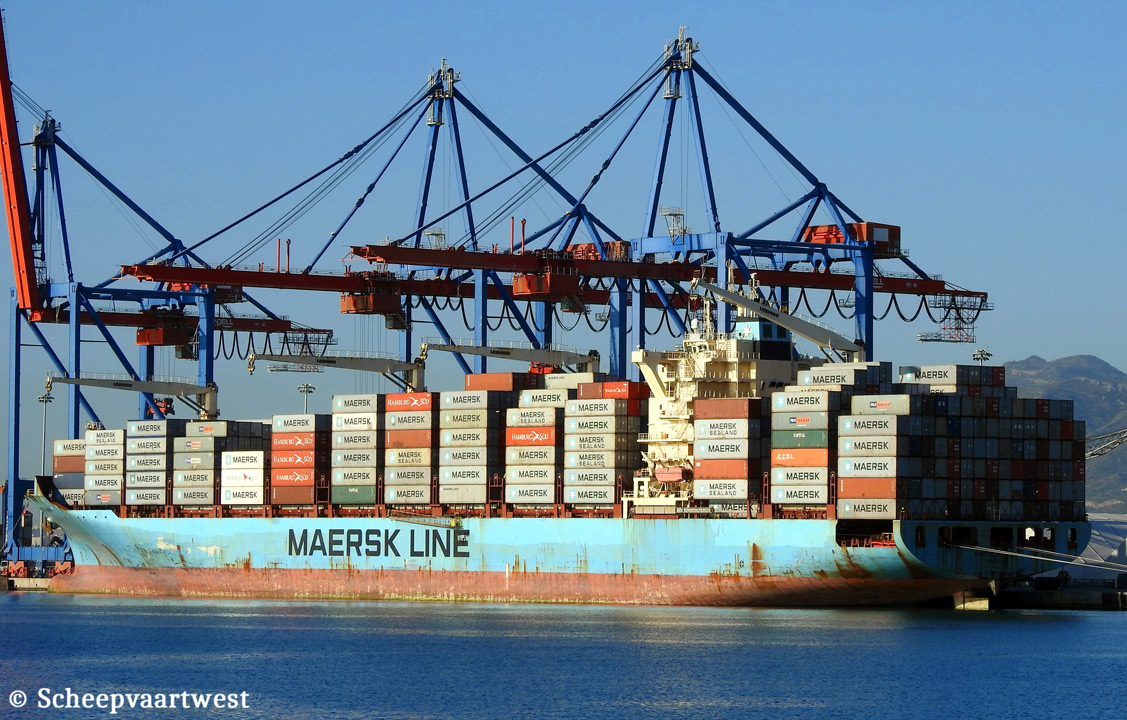

Maersk Calabar IMO 9525302 01

Malaga, Spain 28 September 2020



Name

MAERSK CALABAR

Type

Cellular containership - Carriage of dangerous goods

IMO-number

9525302

Call sign

9V9269

Flag

Republic of Singapore

Port of registry

Singapore City

GT

50.869 t

DWT

Summer: 65.458,2 t

NT

29.691 t

Displacement

80.337 t

Number of 20ft containers

4.496

Container capacity 14t

3.368

Reefer capacity

150

Length

249,12 m overall

235,00 m between perpendiculars

Breadth

37,40 m moulded

Draught

14,00 m

Freeboard

3.364 mm

Depth

22,10 m moulded

Speed

Max: 21,5 knots

Built

2011

Keel laid

20/12/2010

Launch date

25/02/2011

Delivery date

29/04/2011

Builder

Hyundai Heavy Ind. Co., Ltd.

Contract Management Dept.

1000 Bangeojinsunhwan-Doro

Dong-Gu, Ulsan

South Korea

Yard number

2340

Hull material

Steel

Hull type

Single hull double bottom

Continuous decks

1

Main engine

1x HHI/MAN-B&W 6S80ME-C9 - 6 cylinder 800 x 3.450 mm combustion engine MCR 23.000 kW at 73,9 rpm

Manufacturer: HHI Engine & Machinery Div.

Propellers

1x Fixed pitch propeller

Manufacturer: HHI Engine & Machinery Div.

Boilers

1x Fired boiler Mission OS TCI - 9,0 MPa

1x H.P. exhaust gas boiler Mission XW-TG(HP) - 10 MPa

1x L.P. exhaust gas boiler Mission XW-TG(LP) - 8,0 MPa

Manufacturer: Aalborg Industries Ltd.

Generators

2x Hyundai/Himsen 8H25/33 - 8 cylinder 250 x 330 mm diesel generatorset each MCR 2.395 kW at 900 rpm

1x Hyundai/Himsen 6H25/33 - 8 cylinder 250 x 330 mm diesel generatorset MCR 1.755 kW at 900 rpm

1x Auxiliary turbo generator 3.100 kW

Manufacturer: HHI Electro Electric System

Tank capacities

Fuel oil: 5.069,10 m³

Ballast: 17.273,60 m³

Fresh water: 457,70 m³

Diesel oil: 279,20 m³

Lub oil: 260,90 m³

Lifting equipment

1x Engine room crane - SWL 10,0 t

1x Monorail crane - SWL 10,0 t

Manufacturer: Oriental Prec & Eng'g Co.

Cargo gear

4x Liebherr deck cranes - SWL 40,0 t each

Crew

28

Manager

Maersk Line Fleet Management

Operator

Maersk Line

Esplanaden 50

1098 Copenhagen

Denmark

Registered owner

Moller Singapore A P Pte Ltd.

Latest data adjustment

30 November 2020
