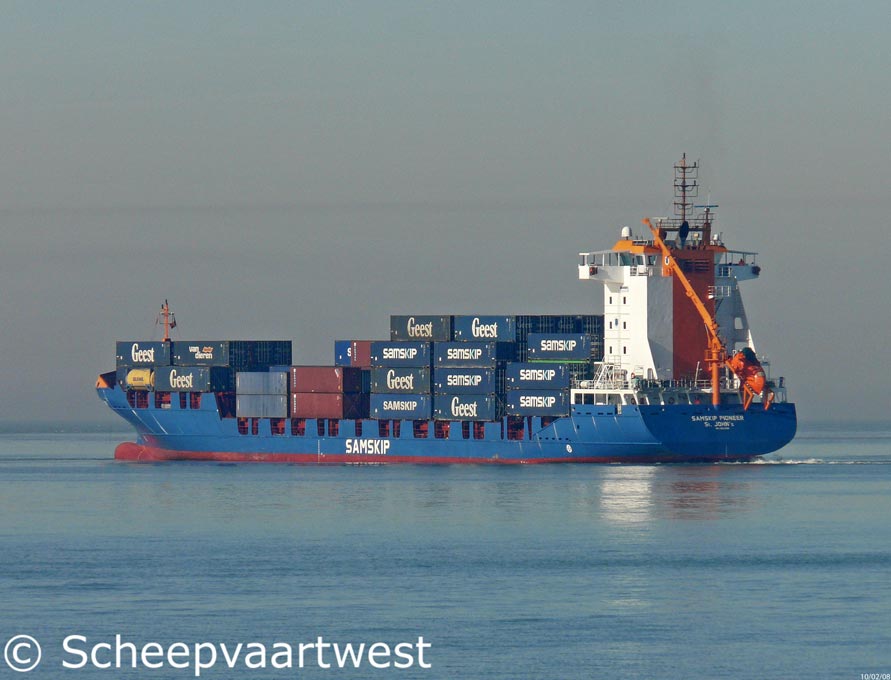

Samskip Pioneer 02
Zeebrugge 10 february 2008

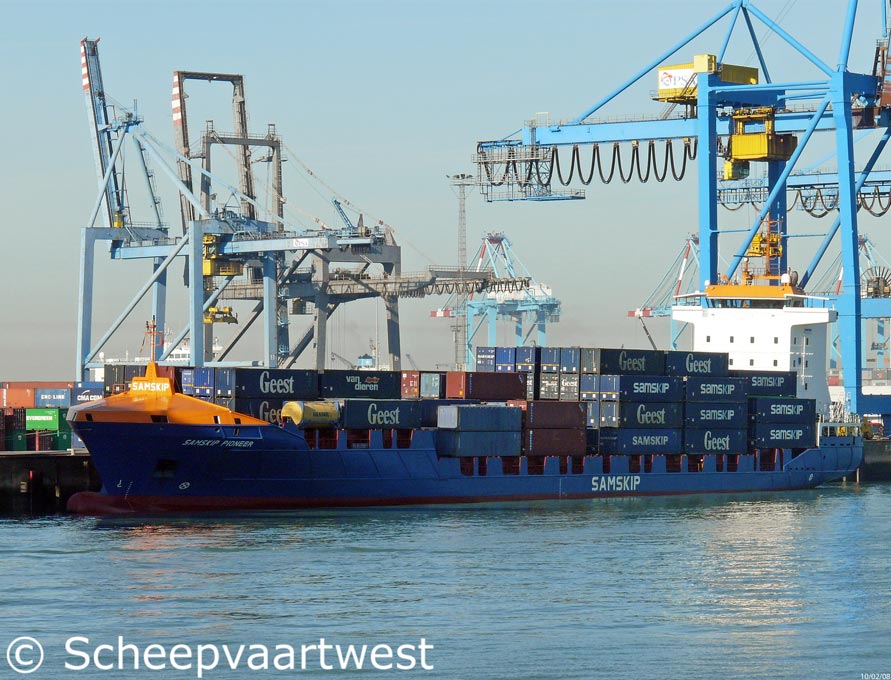

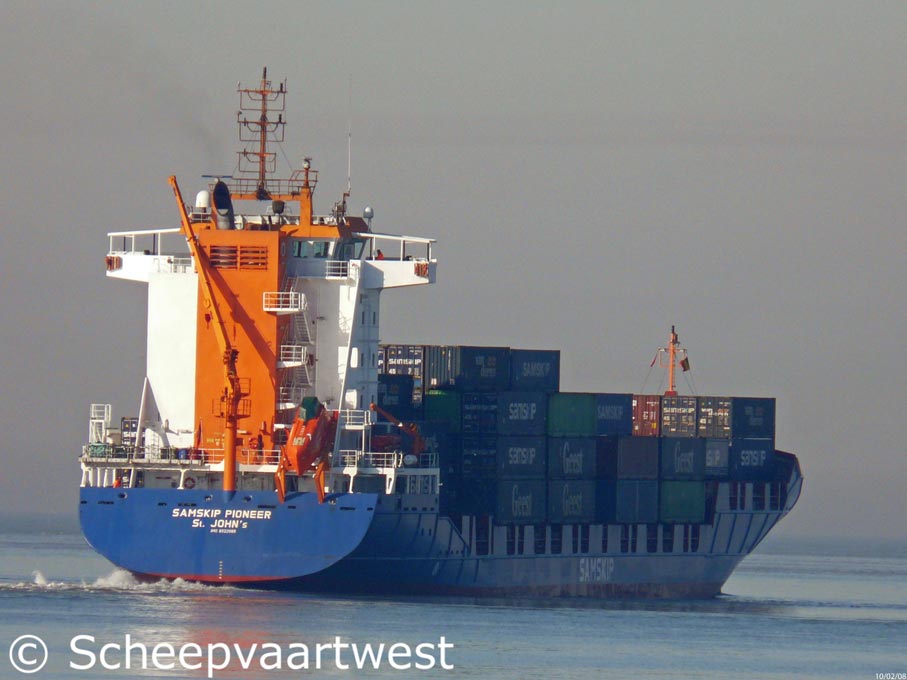

Samskip Pioneer 03   Samskip Pioneer 07
10/02/08   10/02/08



Name

SAMSKIP PIONEER

Type

Cellular containership

IMO-number

9322566

Call sign

V2BT5

Flag

Antigua & Barbuda

Port of registry

St. John's

GT

7.852 t

DWT

9.500 t

NT

3.363 t

Number of 20ft containers

804

Container capacity 14 t

517

Reefer capacity

180

Length

140,59 m overall
130,00 m between perpendiculars

130,68 m registered

Breadth

22,00 m overall

21,79 m moulded

21,80 m registered

Draught

Summer: 7,33 m

Forecastle

37,92 m

Poop

9,60 m

Freeboard

2.170 mm

Depth

9,50 m moulded

Speed

18,0 knots

Line

Samskip

Built

2006

Keel laid

29.06.2004

Launch date

05.10.2005

Date of completion

02.05.2006

Builder casco

Santierul Naval Damen Galati S.A.
Strada Moruzzi Alexandru 132
800223 Galati
Romania

Yard number: 856

Builder completion

Damen Hoogezand Scheepswerf B.V.
Foxtol
The Netherlands

Yard number: 1042

Hull material

Shipbuilding steel (standard)

Hull type

Single hull

Double bottom

Watertight bulkheads

5

Continuous decks

1

Main engine

1x MaK 9M43C - 4 stroke single acting 9 cylinder diesel 430 x 610 mm engine - 8.400 kW at 500 rpm

Year of manufacture: 2005

Manufacturer: Caterpillar Motoren GmbH & Co. KG
Falckensteiner Str. 2
24159 Kiel
Federal Republic of Germany

Number of screws

1X Controllable pitch propeller - aft

Boilers

1x Thermal oil heater, exhaust gas heated - 10,0 bar

Heating surface: 126,0 m²

1x Thermal oil heater, oil fired - 13,0 bar

Heating surface: 43,0 m²

Year of manufacture: 2005

Manufacturer: Aalborg Industries B.V.
Ohmweg 8
3208 KE Spijkenisse
The Netherlands

Electric installations

1x Plant 440 V - 530 kVA

1x Plant 440 V - 2.000 kVA

1x Plant 440 V - 130 kVA

1x Plant 24 V - 140 Ah

1x Plant 24 V - 160 Ah

1x Plant 24 V - 180 Ah

1x Plant 24 V - 200 Ah

Shaft generator

1x 2000 kVA / 1.600 kW

Generators

2x Scania DI-16 44M main diesel generatorsets each 433 kW / 530 kVA

Emergency generator

1x Diesel generatorset 130 kVA + Harbour generator

Batteries

2x Batteries for UPS navigation each 200 Ah

4x Batteries for UPS radio each 160 Ah

2x Batteries for start emergency engine each 180 Ah

2x Batteries for diesel control each 140 Ah

Compressed air receivers

2x Receivers each 1.000 litres - 30,0 bar

1x Receiver 500 litres - 11,0 bar

Bow thrusters

1x Transverse thruster - 700 kW, forward

1x Transverse thruster - 500 kW, aft

Anchor equipment

3x Anchors weight each 4.890 kg

Chain length: 550,00 m

Crew size

16

Cargo gear

None

Manager

Bernd Becker Shipmanagement GmbH & Co. KG
Königreicherstr. 114
21635 Jork
Federal Republic of Germany

Operator

Geest North Sea Line
The Netherlands

Owner

MS "JORK RIDER" Bernd Becker GmbH & Co. KG
Königreicherstr. 114
21635 Jork
Federal Republic of Germany

Owner as completed

Bernd Becker GmbH & Co K.G.
Saint John's

Antigua & Barbuda
