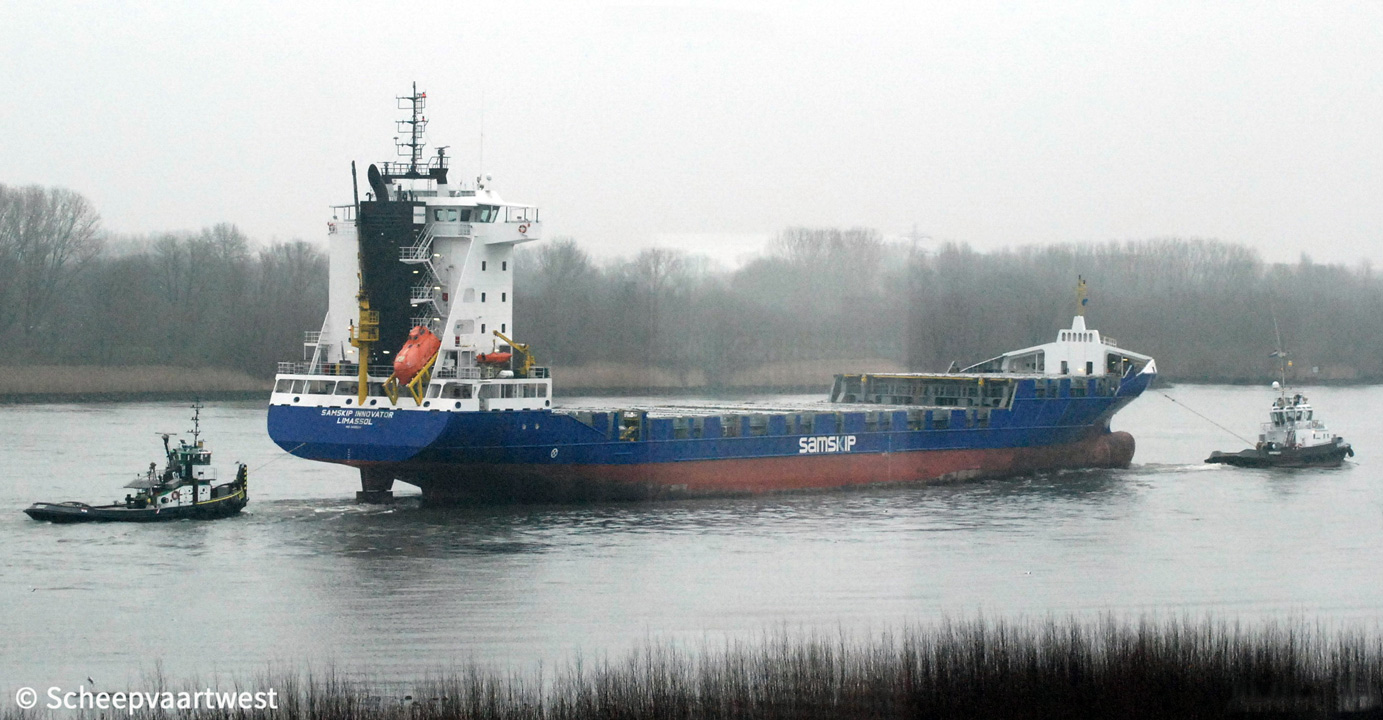

Samskip Innovator 01

Spijkenisse 25 January 2020

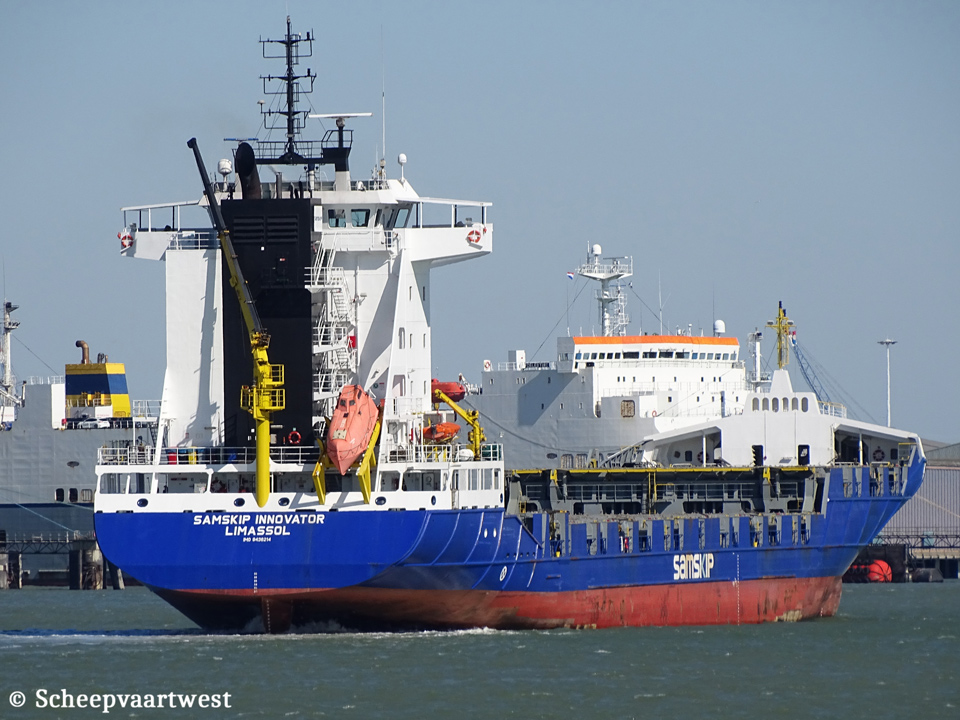

Samskip Innovator IMO 9436214 02
Westerschelde 21/03/20









Name

SAMSKIP INNOVATOR

Previous names

2010 Launch as: Marita M

Type

Containership - Shortsea/Feeder

IMO-number

9436214

Call sign

5BEX3

Flag

Cyprus

Port of registry

Limassol

GT

7.852 t

DWT

Summer: 9.350 t

NT

3.363 t

Number of 20ft containers

In hold: 206

On deck: 597

Total: 803

Container capacity 14t

515

Reefer capacity

210

Length

140,61 m overall

129,96 m between perpendiculars

Breadth

22,02 m extreme

21,80 m moulded

Draught

Max: 7,34 m

Depth

9,50 m

Speed

Service: 18,5 knots

Built

2011

Keel laid

26/05/2008

Launch date

16/07/2009

Date of completion

31/01/2011

Builder casco

Santierul Naval Damen Galati S.A.

Strada Moruzzi Alexandru 132

800223 Galati

Romania

Yard number: 1149

Builder completion

Scheepswerf Damen Gorinchem Yard

The Netherlands

Yard number: 568307

Hull material

Steel

Continuous decks

1

Main engine

1x MaK 9M43C - 4 stroke single acting 9 cylinder 430 x 610 mm combustion engine

Mcr 8.400 kW / 11.421 hp at 514 rpm

Csr: 6.885 kW / 9.361 hp

Manufacturer: Caterpillar Motoren GmbH & Co. KG

Falckensteiner Str. 2

24159 Kiel

Federal Republic of Germany

Propellers

1x Controllable pitch propeller - aft at 140 rpm

Boilers

Thermal oil heater, oil fired

Thermal oil heater, exhaust heated

Shaft generator

1.600 kW - 440 Volt

Generators

2x Caterpillar C18 - 4 stroke 6 cylinder 145 x 183 mm diesel engines each 533 kW connected with generators each 430 ekW - 440 Volt

Emergency generator

1x Caterpillar C4.4 DITA diesel generatorset

Bow thruster

1x Tunnel thruster 700 kW / 952 bhp, forward

1x Tunnel thruster 500 kW - 680 bhp, aft

Tank capacities

Ballast: 4.597,8 m³

Fuel oil: 941 m³

Diesel oil: 105 m³

Anchor equipment

Length: 550,00 m

Diameter: 54 mm

Cargo gear

Gearless

Crew size

13

Manager

Nav-Tech B.V.

Waalhaven Oostzijde 81

3087 BM Rotterdam

The Netherlands

Registered owner

Samskip Innovator C.V.

Waalhaven Oostzijde 81

3087 BM Rotterdam

The Netherlands

Latest data adjustment

12 April 2021
